| Notes | General: NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.Ãby using cable ties. |
| Mounting | Connection method: Insulation displacement connection |
| Product properties | Product type: Circular connector (cable-side) Sensor type: Universal Number of positions: 4 No. of cable outlets: 1 Shielded: no Coding: A Cable outlet: straight Insulation characteristics Overvoltage category: II Degree of pollution: 3 |

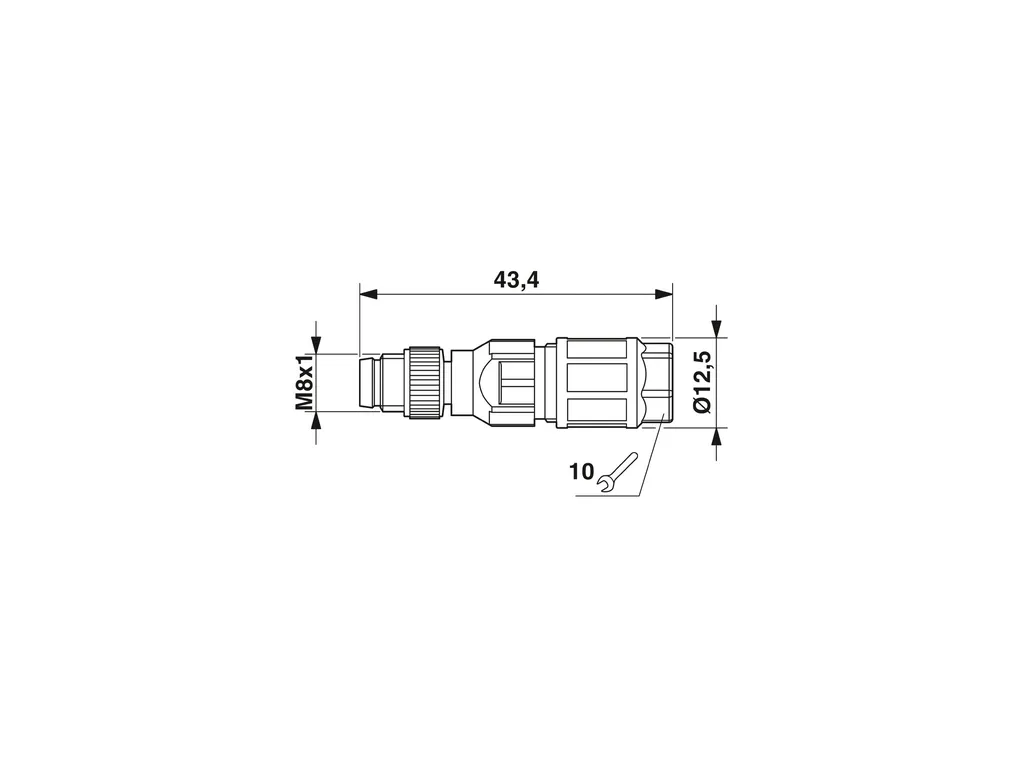

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/a6a570ec9152e54b8bfcfcae02f187a6/-S204x204-FJPG Length: 43.4 mm External dimensions Outside diameter: 2.5 mm ... 5 mm ñ0.2Ãmm Housing Diameter housing: 12.5 mm |
| Material specifications | Flammability rating according to UL 94: HB Seal material: NBR Material of grip body: PA 6 Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: TPU GF Material for screw connection: Zinc die-cast, nickel-plated Wire insulation material: PVC / PE / PP / rubber |
| Connection data | Conductor connection Connection method: Insulation displacement connection Connection cross section: 0.25 mm² ... 0.5 mm² Connection cross section AWG: 24 ... 20 Tightening torque: 0.6 Nm (Pressure nut) 0.2 Nm (M8 knurl) Pin assignment Contact | Color (signal designation) | Contact (optional): 1 = BN 2 = WH 3 = BU 4 = BK |
| Electrical properties | Rated surge voltage: 0.8 kV Contact resistance: ââ°¤ 5 mé Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 30 VÃAC 30 VÃDC Nominal current IN: 4 A |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 100 |
| Connector | Connection 1 Head design: Plug Head cable outlet: straight Head thread type: M8 Coding: A |
| Cable/line | Signal type/category: Universal External cable diameter (): 2.5 mm ... 5 mm |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -25°C ... 80°C (Plug / socket) |
| Standards and regulations | M8 Standard designation: M8 connector Standards/specifications: IEC 61076-2-104 |
