1441859 PHOENIX CONTACT -

SACC-DSI-M12FS-17CON-M16 - Device connector, rear mounting

Device connector, rear mounting, 17-position, Socket, M12, coding: A, Rear mounting, M16 x 1.5, Wave soldering, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1239744

Cod. Articolo: 1441859 copia - copy

Cod. Fornitore: 1441859 copia - copy

PHOENIX CONTACT

Notes	General: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. Lock nut is included in the scope of delivery

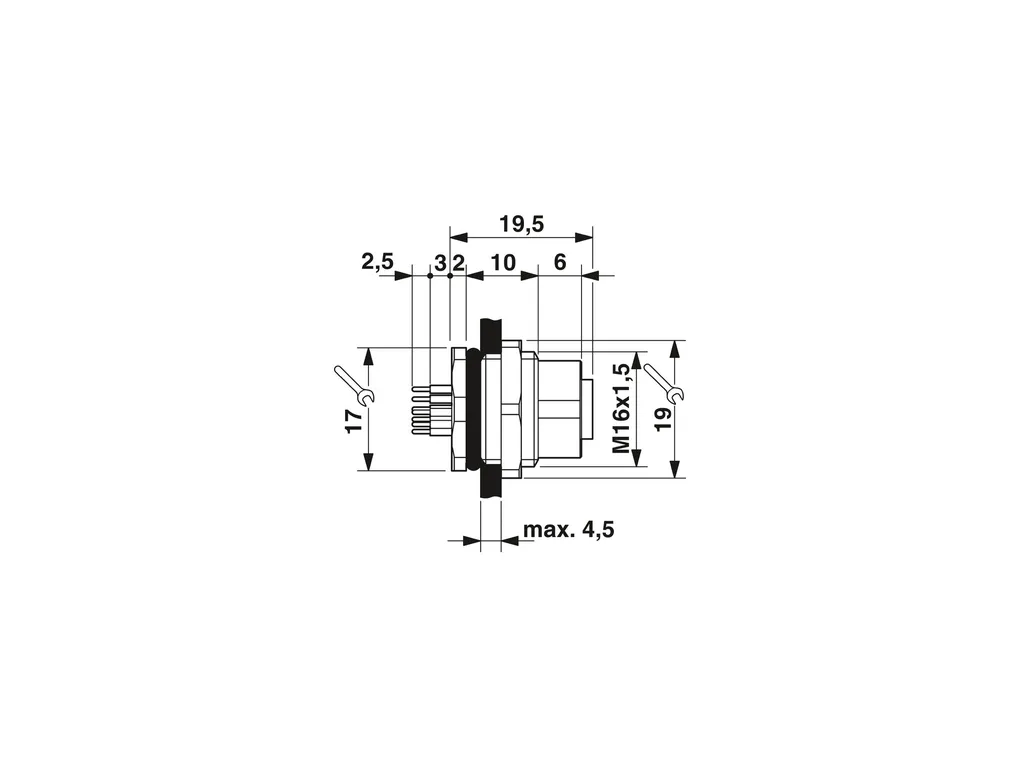

Mounting	Mounting type: Rear mounting M16 x 1.5 With flat nut Assembly instructions: With flat nut Connection method: Wave soldering
Product properties	Product type: Circular connectors (device side) Number of positions: 17 Shielded: no Coding: A Thread type: M12 Insulation characteristics Overvoltage category: II Degree of pollution: 3
Material specifications	Flammability rating according to UL 94: V0 Seal material: NBR Contact material: CuZn Contact surface material: Au Contact carrier material: PA 6.6 Material for screw connection: Zinc die-cast, nickel-plated
Electrical properties	Rated surge voltage: 0.8 kV Contact resistance: Ã¢Ã¢°¤ 3 mÃ© Insulation resistance: Ã¢Ã¢°¥ 100 MÃ© Nominal voltage U_N: 30 V Nominal current I_N: 1.5 A
Connection data	Conductor connection Connection method: Wave soldering Contact connection type: Socket Tightening torque: 3 Nm 4 Nm
Mechanical properties	Mechanical data Insertion/withdrawal cycles: > 100
Connector	Connection 1 Head design: Socket Head thread type: M12 Coding: A
Cable/line	Ambient temperature (operation): -40°C ... 85°C (cable, fixed installation) -25°C ... 85°C (Cable, flexible installation)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP67 (When plugged in) IP65 (When plugged in) IP65/IP67 Ambient temperature (operation): -25°C ... 85°C (Plug / socket) -40°C ... 85°C (without mechanical actuation) -25°C ... 85°C (Cable, flexible installation) -40°C ... 85°C (cable, fixed installation)
Standards and regulations	M12 Standard designation: M12 connector Standards/specifications: IEC 61076-2-101
