| Product properties | Product type: Data cable preassembled Sensor type: Ethernet Number of positions: 4 No. of cable outlets: 1 Number of slots: 1 Shielded: yes Insulation characteristics Degree of pollution: 3 |
| Interfaces | Bus system: Ethernet Signal type/category: Ethernet CAT5 (IEC 11801:2002) |
| Electrical properties | Nominal voltage UN: 48 VÃAC 60 VÃDC Transmission characteristics (category): CAT5 (IEC 11801:2002) |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 100 |
| Material specifications | Flammability rating according to UL 94: V2 Outer sheath, material: PVC |

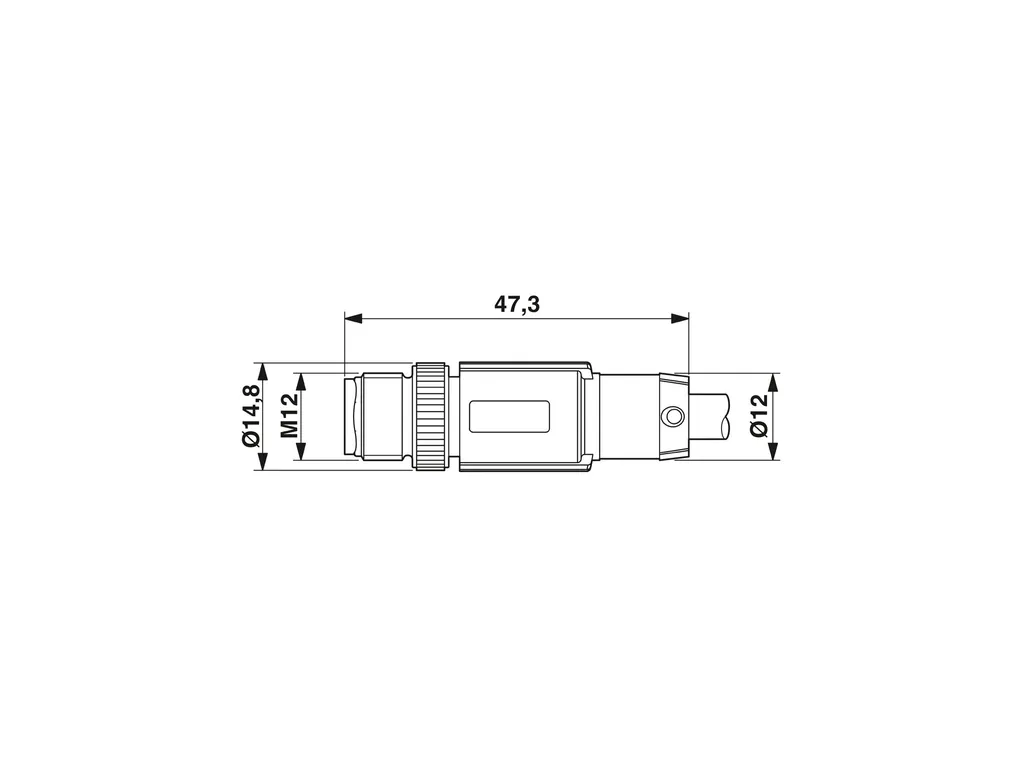

| Connector | Connection 1 Type: Plug straight M12 Connection 2 Type: free cable end |
| Cable/line | Cable length: 10 m Cable type: Ethernet Cable structure: 2x2xAWG26/7, SF/UTP Signal type/category: Ethernet CAT5 (IEC 11801:2002) External cable diameter: 6.40 mm Outer sheath, material: PVC External sheath, color: water blue RALÃ5021 Wire diameter incl. insulation: 1 mm Single wire, color: white/orange-orange, white/green-green Cable cross section: 0.14 mm² Conductor structure signal line: 7x 0.15 mm AWG signal line: 26 Smallest bending radius, fixed installation: 25 mm Smallest bending radius, movable installation: 25 mm (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -25°C ... 60°C (cable, fixed installation) -5°C ... 50°C (Cable, flexible installation) |
