| Product properties | Product type: Cable by the meter Number of positions: 5 Application: Connector Shielded: no |
| Cable/line | Cable length: 100 m Gray, highly flexible PURÃ[800] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/53f272bac5575c40ac4572d523e78088/-S204x204-FJPG Note: Due to the extremely robust outer sheath, this cable should only be stripped in 5Ãcm increments. Cable weight: 38 kg/km UL AWM Style: 20549 Number of positions: 5 Shielded: no Cable type: Gray, highly flexible PURÃ[800] Conductor structure signal line: 42x 0.10 mm AWG signal line: 22 Conductor cross section: 5x 0.34 mm² (Signal line) Wire diameter incl. insulation: 1.3 mm ñ0.05 mm (Signal line) External cable diameter: 5.1 mm ñ0.2Ãmm Outer sheath, material: PUR External sheath, color: gray RAL 7001 Conductor material: Bare Cu litz wires Material, filler: PE Material wire insulation: PP Single wire, color: black, brown,blue, white, gray Overall twist: 5 wires around filler to the core Max. conductor resistance: approx. 53 é/km Insulation resistance: ââ°¥ 20 Mé*km Nominal voltage, cable: 300 V Test voltage: 2000 V Minimum bending radius, fixed installation: 4 x D Minimum bending radius, flexible installation: 7.5 x D Max. bending cycles: 10000000 15000000 Torsion force: ñ 360°/m Torsion cycles: 1000000 Halogen-free: in accordance with DINÃVDEÃ0472 partÃ815 Flame resistance: in accordance with UL 758/1581 FT2 Resistance to oil: in accordance with DIN EN 60811-2-1 Other resistance: Highly resistant to acids, alkaline solutions and solvents Silicone-free Special properties: Cable jacket is welding spark-resistant, recyclable, matt, low-adhesion, abrasion-resistant, flame-retardant, and self-extinguishing Free from silicone and cadmium Free of substances which would hinder coating with paint or varnish Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation) -25°C ... 80°C (Cable, flexible installation) |

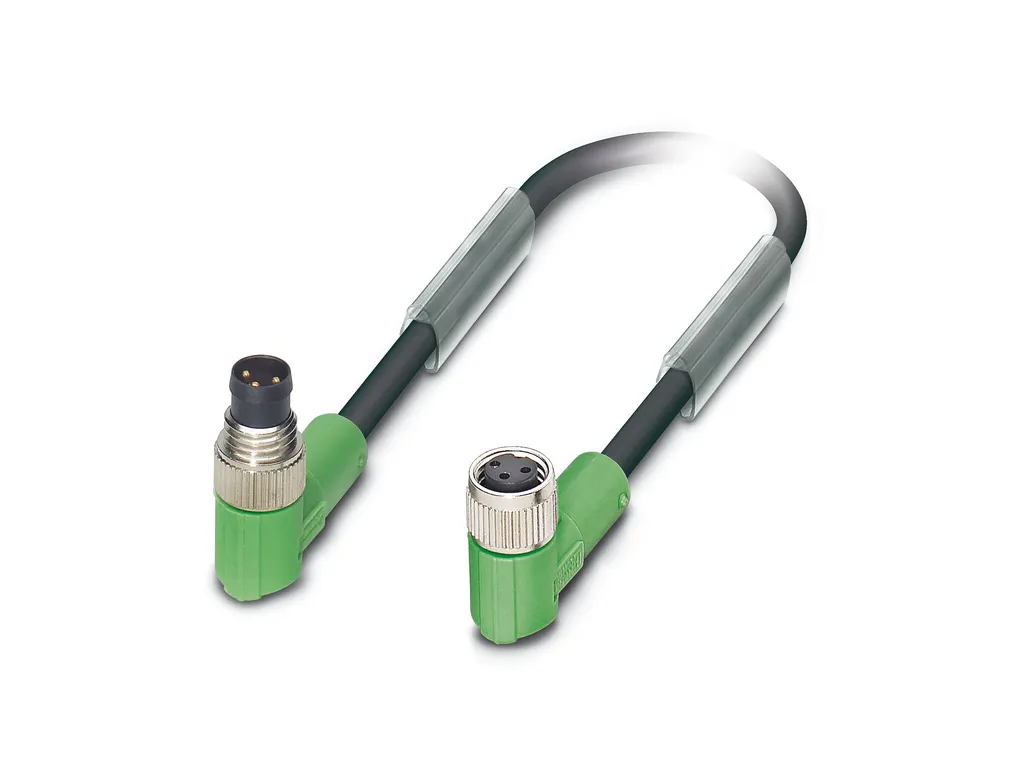

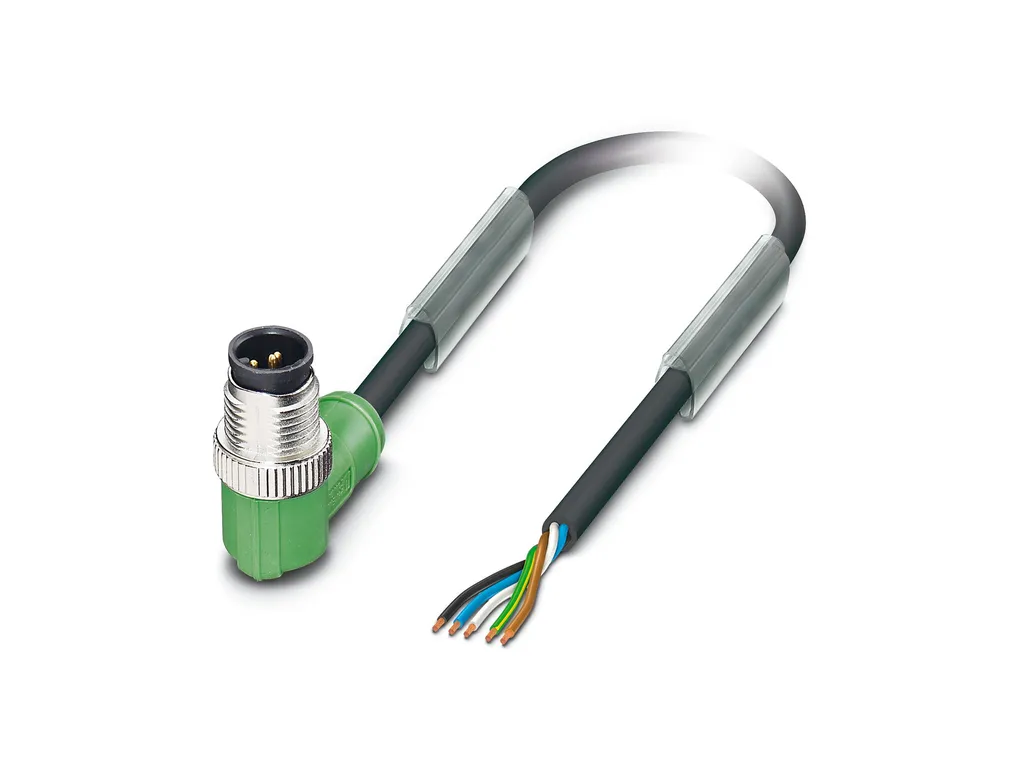

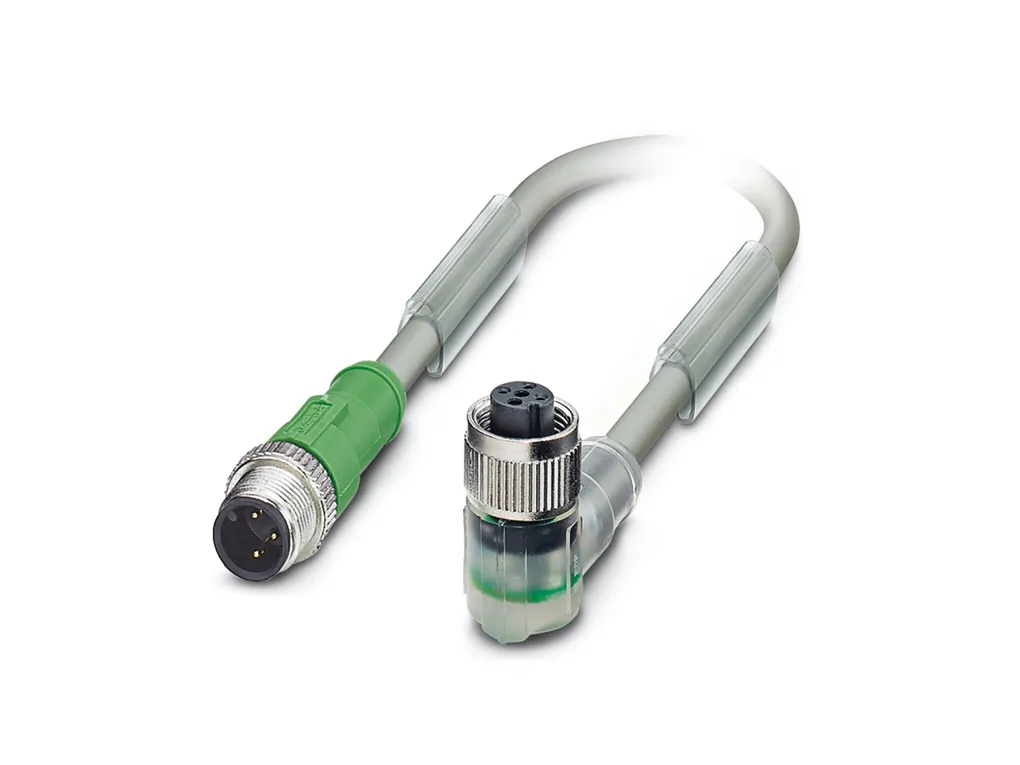

Di seguito alcuni articoli correlati a quello che stai vedendo
