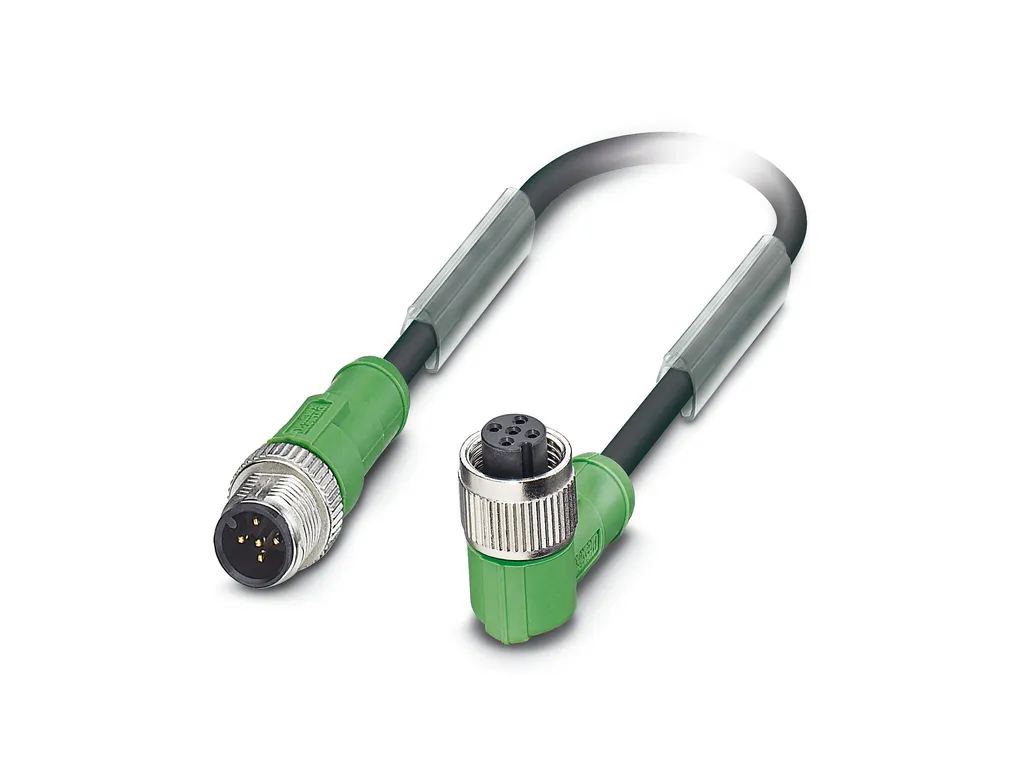

1449246 PHOENIX CONTACT -

Product properties	Product type: Sensor/actuator cable Number of positions: 3 No. of cable outlets: 1 Shielded: yes Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3
Material specifications	Flammability rating according to UL 94: HB Seal material: NBR Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: TPU GF Material for screw connection: Stainless steel
Electrical properties	Contact resistance: Ã¢Ã¢°¤ 5 mÃ© Insulation resistance: Ã¢Ã¢°¥ 100 MÃ© Nominal voltage U_N: 48 VÃAC 60 VÃDC Nominal current I_N: 4 A
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢Ã¢°¥ 100
Signaling	Status display: No Status display present: No

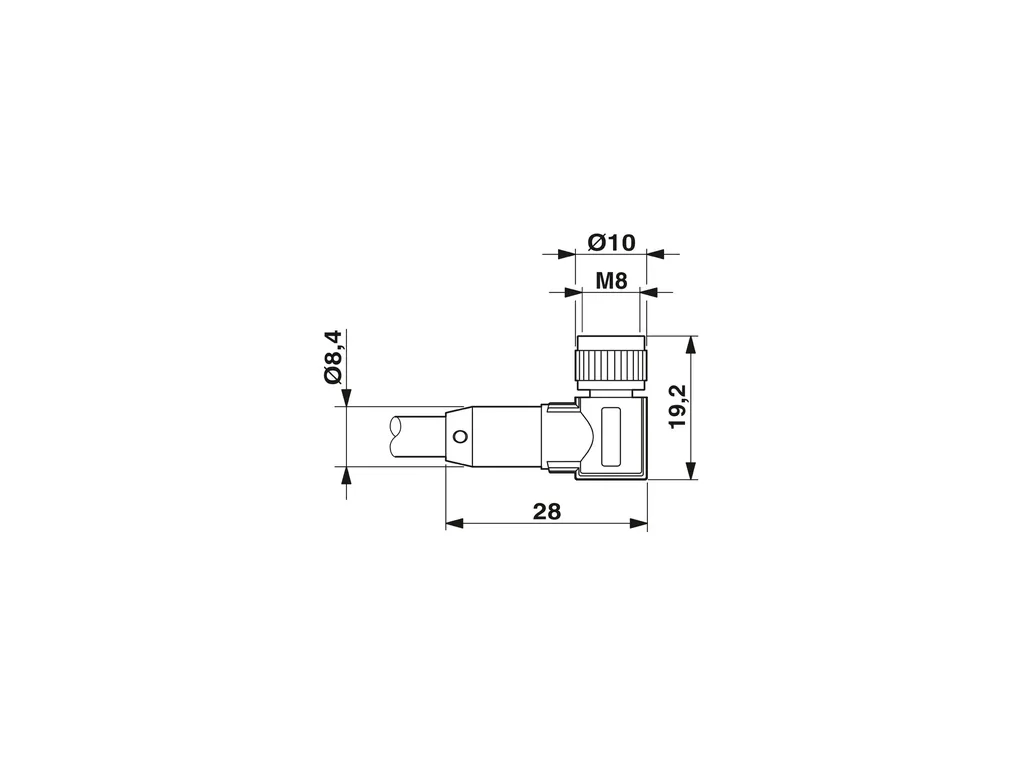

Connector	Connection 1 Type: free cable end Connection 2 Type: Socket angled M8 Number of positions: 3 Coding type: A
Cable/line	Cable length: 5 m PVC blackÃ[PVC] Cable weight: 33 kg/km Number of positions: 3 Shielded: yes Cable type: PVC blackÃ[PVC] Conductor structure signal line: 32x 0.10 mm AWG signal line: 22 Wire diameter incl. insulation: 1.19 mm Ã±0.02Ãmm External cable diameter: 4.7 mm Ã±0.2Ãmm Outer sheath, material: PVC External sheath, color: black RALÃ9005 Conductor material: Bare Cu litz wires Material wire insulation: PVC Single wire, color: brown, blue, black Thickness, insulation: Ã¢Ã¢°¥ 0.23 mm (Core insulation) Ã¢Ã¢°¥ 0.65 mm (Outer cable sheath) Overall twist: 3 wires, twisted Optical shield covering: 85 % Max. conductor resistance: max. 78 Ã©/km (at 20Ã°C) Insulation resistance: Ã¢Ã¢°¥ 100 MÃ©*km (at 20Ã°C) Nominal voltage, cable: 300 V Test voltage: 3000 V Ambient temperature (operation): -30°C ... 80°C (cable, fixed installation) -15°C ... 80°C (Cable, flexible installation)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -25°C ... 90°C (Plug / socket) -25°C ... 80°C (cable, fixed installation) -5°C ... 80°C (Cable, flexible installation)
