| Product properties | Product type: Sensor/actuator cable Number of positions: 5 Application: Robots and drag chains No. of cable outlets: 1 Shielded: no Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: HB Seal material: NBR Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: TPU GF Material for screw connection: Zinc die-cast, nickel-plated |
| Electrical properties | Contact resistance: ââ°¤ 5 mé Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 48 VÃAC 60 VÃDC Nominal current IN: 4 A Protective circuit: unwired |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 100 |
| Signaling | Status display: No Status display present: No |
| Connection data | Conductor connection Tightening torque: 0.4 Nm (M12 connector) |

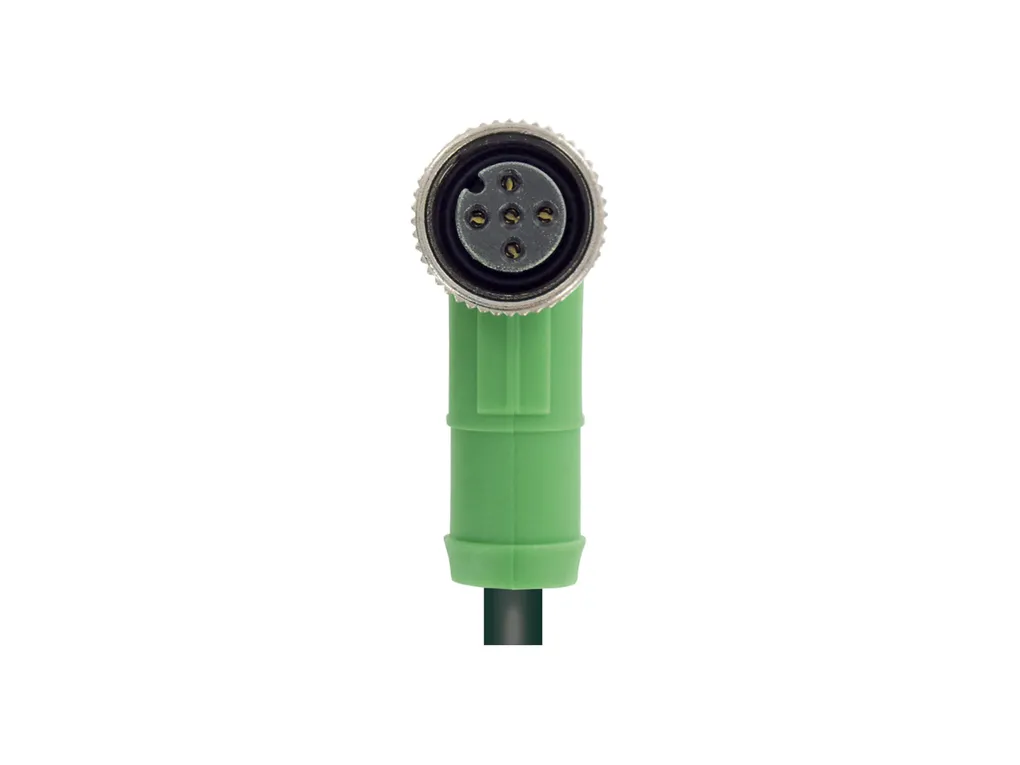

| Connector | Connection 1 Type: Plug straight M12 Number of positions: 5 Coding type: A Connection 2 Type: Socket angled M12 Number of positions: 5 Coding type: A |
| Cable/line | Cable length: 1.5 m PUR halogen-free highly flexible resistant to welding sparks gray 5th conductor green/yellowÃ[802] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/1d346160d378a74484caa9da7c60bd4f/-S204x204-FJPG Note: Due to the extremely robust outer sheath, this cable should only be stripped in 5Ãcm increments. UL AWM Style: 20549 Number of positions: 5 Shielded: no Cable type: PUR halogen-free highly flexible resistant to welding sparks gray 5th conductor green/yellowÃ[802] Conductor structure signal line: 42x 0.10 mm AWG signal line: 22 Conductor cross section: 5x 0.34 mm² (Signal line) Wire diameter incl. insulation: 1.3 mm ñ0.05 mm (Signal line) External cable diameter: 5.1 mm ñ0.2Ãmm Outer sheath, material: PUR External sheath, color: gray RAL 7001 Conductor material: Bare Cu litz wires Material wire insulation: PP Single wire, color: black, brown, blue, white, green/yellow Overall twist: 5 wires around filler to the core Max. conductor resistance: approx. 53 é/km Insulation resistance: ââ°¥ 20 Mé*km Nominal voltage, cable: 300 V Test voltage: 1200 V Minimum bending radius, fixed installation: 5 x D Minimum bending radius, flexible installation: 5 x D Max. bending cycles: 10000000 15000000 Torsion force: ñ 360°/m Torsion cycles: 1000000 Halogen-free: The cable is halogen-free Flame resistance: in accordance with UL 758/1581 FT2 Resistance to oil: in accordance with DIN EN 60811-2-1 Other resistance: Highly resistant to acids, alkaline solutions and solvents Silicone-free Special properties: Cable jacket is welding spark-resistant, recyclable, matt, low-adhesion, abrasion-resistant, flame-retardant, and self-extinguishing Free from silicone and cadmium Free of substances which would hinder coating with paint or varnish Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation) -25°C ... 80°C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 IP68 Ambient temperature (operation): -25°C ... 90°C (Plug / socket) -40°C ... 90°C (cable, fixed installation) -30°C ... 90°C (Cable, flexible installation) to 120°C (for 3000 h) to 80°C (in acc. with UL) |
| Standards and regulations | Standard designation: M12 connector Standards/specifications: IEC 61076-2-101 |
