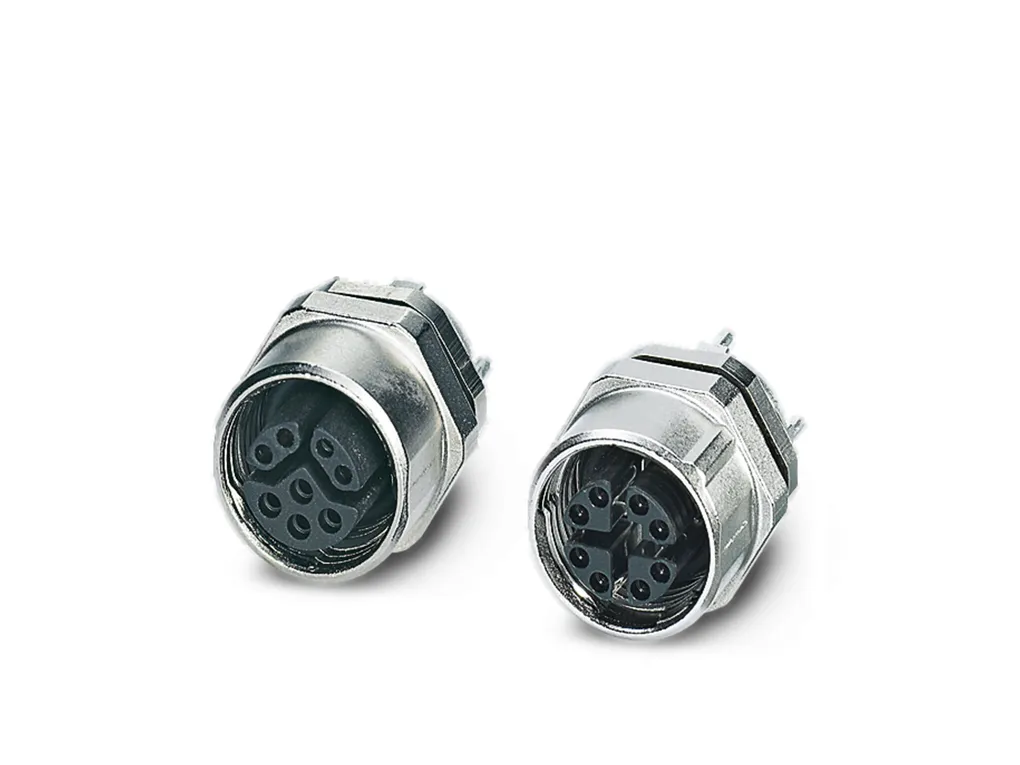

VS-08-DSIV-L180-HYB SCO - Device connector, rear mounting

Device connector, rear mounting, Ethernet CAT5 (IEC 11801:2002), 8-position, Socket, straight, M12-SPEEDCON, coding: Y, PCB mounting, M12 x 1, THR solder connection, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1239824
Cod. Articolo: 1456666 copia - copy
Cod. Fornitore: 1456666 copia - copy
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
NotesGeneral: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
MountingMounting type: PCB mounting M12 x 1
Connection method: THR solder connection
Product propertiesProduct type: Circular connectors (device side)
Sensor type: Ethernet
Number of positions: 8
Shielded: yes
Coding: Y
Thread type: M12
Insulation characteristics
Degree of pollution: 3
DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/70efd2e8e217d646a9883de7debe4b12/-S204x204-FJPG
Length of the solder pin: 2.3 mm
Material specificationsFlammability rating according to UL 94: V0
Seal material: EPDM
Contact material: CuZn
Contact surface material: Au
Contact carrier material: PPA
Material for screw connection: Zinc die-cast, nickel-plated
Electrical propertiesRated surge voltage: 0.8 kV
Contact resistance: ≤ 3 mΩ
Insulation resistance: > 100 MΩ
Nominal voltage UN: 48 VÂAC (Power and data)
50 VÂDC (Power and data)
Nominal current IN: 0.5 A (Data)
6 A (Power)
Transmission characteristics (category): CAT5 (IEC 11801:2002)
Connection dataConductor connection
Connection method: THR solder connection
Contact connection type: Socket
Tightening torque: 1.5 Nm
2 Nm
Mechanical propertiesMechanical data
Insertion/withdrawal cycles: ≥ 100
ConnectorConnection 1
Head design: Socket
Head cable outlet: straight
Head thread type: M12
Head locking type: SPEEDCON
Coding: Y
Cable/lineSignal type/category: Ethernet CAT5 (IEC 11801:2002)
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67 (When plugged in)
IP67
Ambient temperature (operation): -40°C ... 85°C
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Approvals_01934.pdf

Design-In_00035.pdf

Manufacturer_declaration_08897.pdf

Technical_drawing_15811.pdf
