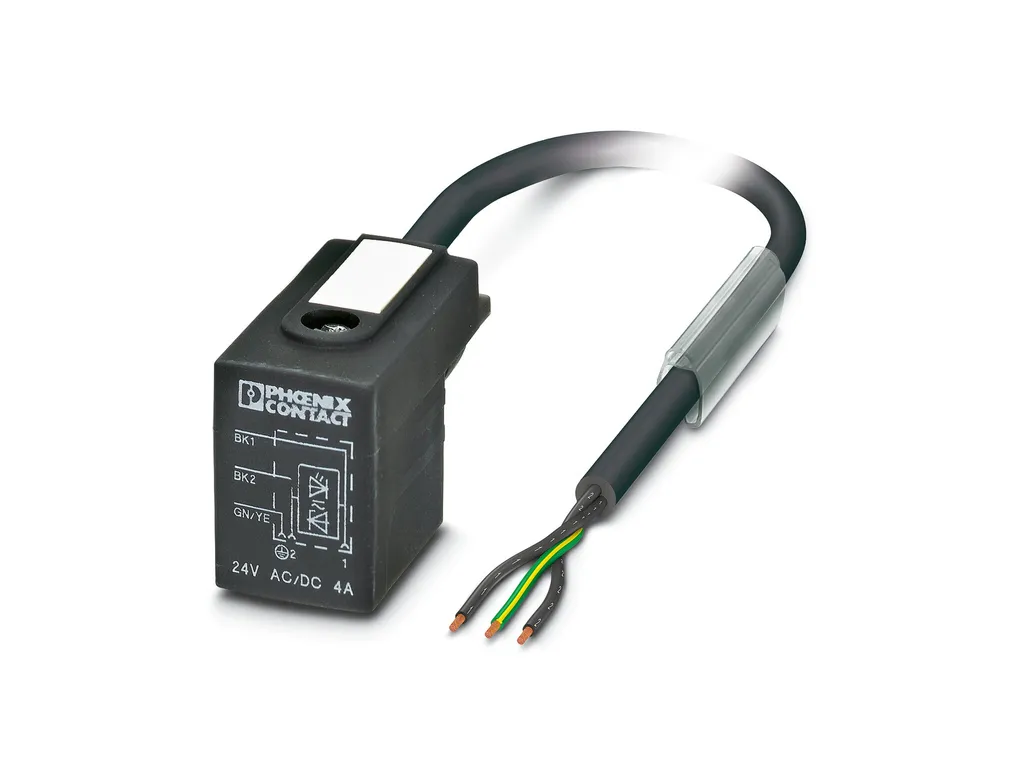

| Product properties | Product type: Cable by the meter Number of positions: 3 Application: Valve connector Shielded: no |
| Cable/line | Cable length: 100 m PUR halogen-free blackÃ[PUR] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/4ec2739db2b7a449beeded92db81a494/-S204x204-FJPG Cable weight: 30 kg/km UL AWM Style: 20549 Number of positions: 3 Shielded: no Cable type: PUR halogen-free blackÃ[PUR] Conductor structure signal line: 28x 0.15 mm AWG signal line: 20 Conductor cross section: 3x 0.5 mm² Wire diameter incl. insulation: 1.5 mm ñ0.05 mm (Signal line) External cable diameter: 4.5 mm ñ0.2Ãmm Outer sheath, material: PUR External sheath, color: black-gray RAL 7021 Conductor material: Bare Cu litz wires Material wire insulation: PP Single wire, color: black 1, black 2, green/yellow Overall twist: 3 wires, twisted Max. conductor resistance: 39 é/km (at 20ðC) Insulation resistance: min. 20 Mé*km Nominal voltage, cable: ââ°¤ 300 V Test voltage: ââ°¥ 1200 V Minimum bending radius, fixed installation: 5 x D Minimum bending radius, flexible installation: 10 x D Smallest bending radius, fixed installation: 22.5 mm Smallest bending radius, movable installation: 45 mm Max. bending cycles: 15000000 Halogen-free: in accordance with DINÃVDEÃ0472 partÃ815 Flame resistance: according to DINÃVDEÃ0482 According to DINÃENÃ50265-2-1 Resistance to oil: in accordance with DIN EN 60811-2-1 Other resistance: largely oil-resistant partly UV-resistant in accordance with DINÃENÃISOÃ4892-2-A Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation) -20°C ... 80°C (Cable, flexible installation) |
