| Notes | General: NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.Ãby using cable ties. |
| Mounting | Connection method: Screw connection |
| Product properties | Product type: Valve connectors Sensor type: Universal Number of positions: 5 No. of cable outlets: 1 Shielded: no Pg screw connection: M16 Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: HB Seal material: NBR Material housing valve plug: PA Contact material: CuZn Contact surface material: CuSn |

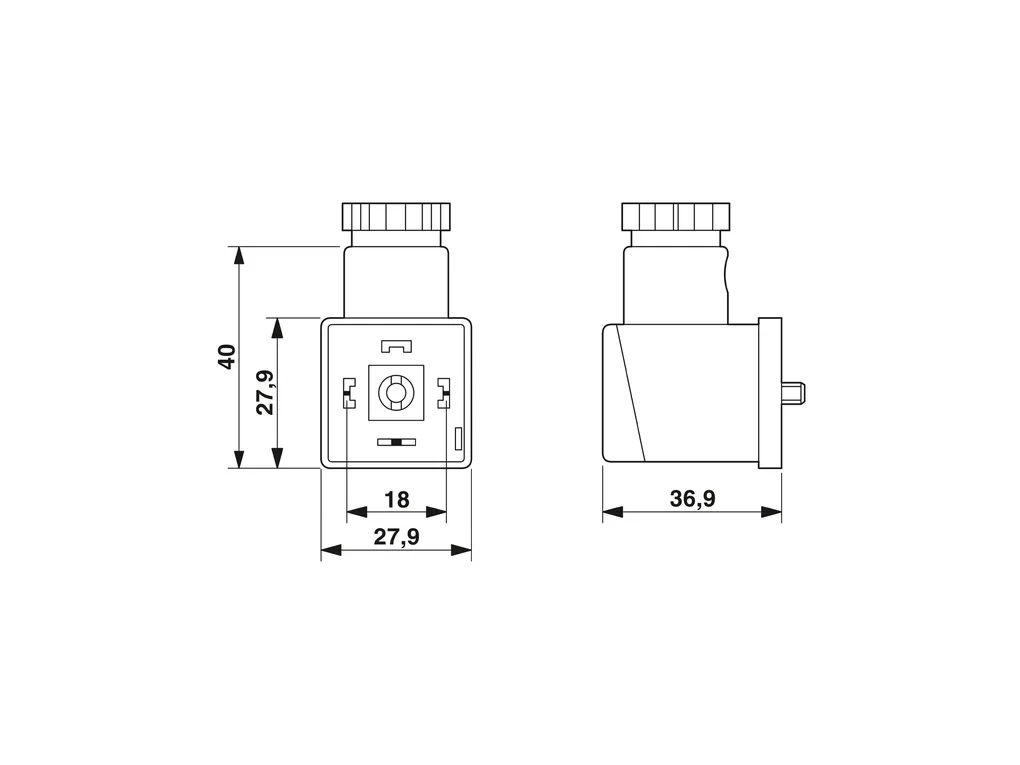

| Dimensions | External dimensions Outside diameter: 6 mm ... 8 mm |
| Electrical properties | Contact resistance: ââ°¤ 4 mé Insulation resistance: > 2 Gé Nominal voltage UN: 24 VÃAC 24 VÃDC Nominal current IN: 1.5 A Protective circuit: unwired Valve connector characteristics Fixing screws: M3 x 37,5 |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: 50 (Valve connector) |
| Signaling | Status display: 2 LEDs Status display present: Yes |
| Connection data | Connection method: Screw connection Conductor cross section: 0.25 mm² ... 1.5 mm² Connection cross section AWG: 24 ... 16 Tightening torque: 1.8 Nm ñ0.2ÃNm (Pressure screw) 0.4 Nm ñ0.1ÃNm (Central screw) 0.2 Nm ñ0.1ÃNm (Contact screw) |
| Connector | Connection 1 Head design: Valve connector Head thread type: AD (pressure switch) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 Ambient temperature (operation): -25°C ... 60°C (valve plug) |
| Standards and regulations | Valve connector Standard designation: Valve connector Standards/specifications: ENÃ175301-803 |
