1458130 PHOENIX CONTACT -

SAC-MR/0,1-116/2XA-1L-Z SCO - Double valve connector adapter

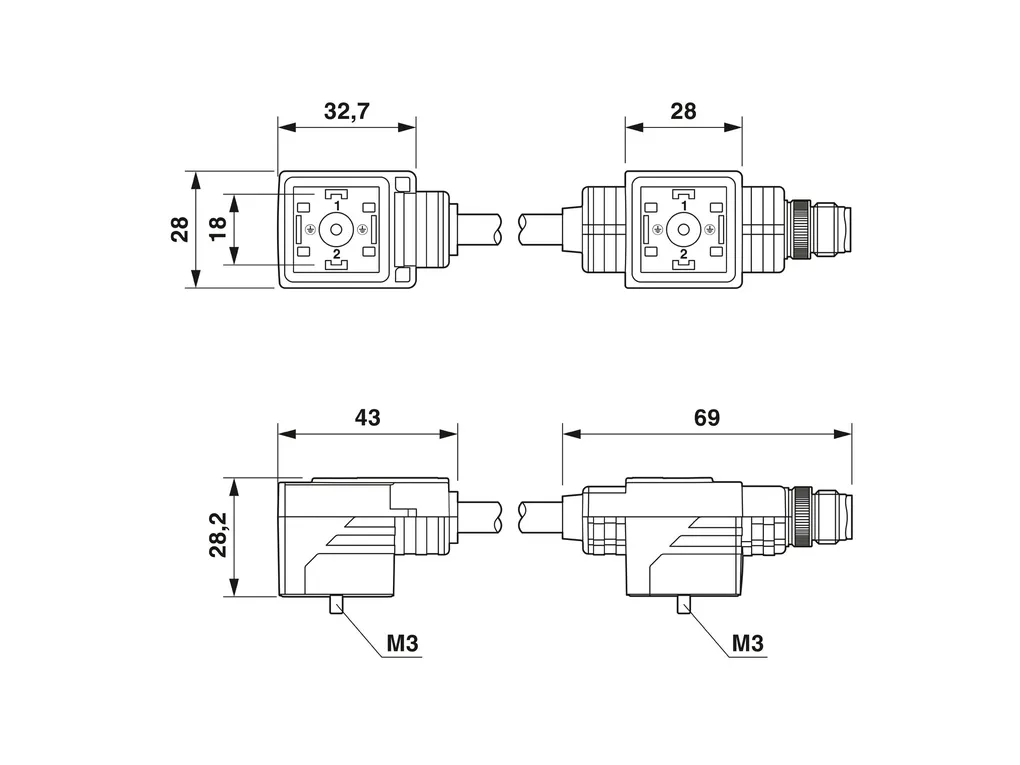

Double valve connector adapter, Universal, 4-position, Plug angled M12, coding: A SPEEDCON, on Valve connector A, with 1 LED, connected with Z diode and Valve connector A, with 1 LED, connected with Z diode, valve connector spacing: 0.1 m

Cod. Articolo: 1458130 copia - copy

Cod. Fornitore: 1458130 copia - copy

PHOENIX CONTACT

Product properties	Product type: Valve connector adapter Sensor type: Universal Number of positions: 4 No. of cable outlets: 1 Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3
Connection data	Tightening torque: 0.6 Nm (valve plug)
Electrical properties	Contact resistance: Ã¢Ã¢°¤ 5 mÃ© Insulation resistance: Ã¢Ã¢°¥ 100 MÃ© Nominal voltage U_N: 24 VÃAC 24 VÃDC Nominal current I_N: 4 A Protective circuit: Z diode Valve connector characteristics Fixing screws: M3 x 29 Pulse power: 40 W (at 100ÃÃµs square-wave pulse) Terminal voltage: 70 V (at 2ÃmA constant current) Reverse voltage: 50 V
Mechanical properties	Mechanical data Insertion/withdrawal cycles: 50 (valve plug)
Material specifications	Flammability rating according to UL 94: HB Seal material: TPU Material housing valve plug: TPU Contact material: CuSn Contact surface material: Ni/Au Sn Contact carrier material: PA 6.6 Valve plug contact insert material: PA 6.6 Material for screw connection: Zinc die-cast, nickel-plated
Signaling	Status display: 1 LED Status display present: Yes
Connector	Connection 1 Type: Plug angled M12 SPEEDCON Number of positions: 4 Coding type: A Locking type: SPEEDCON Connection 2 Type: Valve connector A Material: CuSn (Contact) Sn (Contact surface) PA 6.6 (Contact carriers) TPU (Housing)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -25°C ... 85°C (valve plug)
Standards and regulations	M12 Standard designation: M12 connector Standards/specifications: IEC 61076-2-101 Valve connector Standard designation: Valve connector Standards/specifications: ENÃ175301-803
