1458554 PHOENIX CONTACT -

SAC-3P-MR/B-1L-Z SCO - Valve connectors

Valve connectors, 3-position, Plug angled M12, coding: A, with 1 LED, connected with Z diode, on Valve connector B (10mm), with 1 LED, connected with Z diode

Cod. Articolo: 1458554 copia - copy

Cod. Fornitore: 1458554 copia - copy

PHOENIX CONTACT

Mounting	Connection method: M12 connector
Product properties	Product type: Valve connector adapter Number of positions: 3 No. of cable outlets: 1 Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3

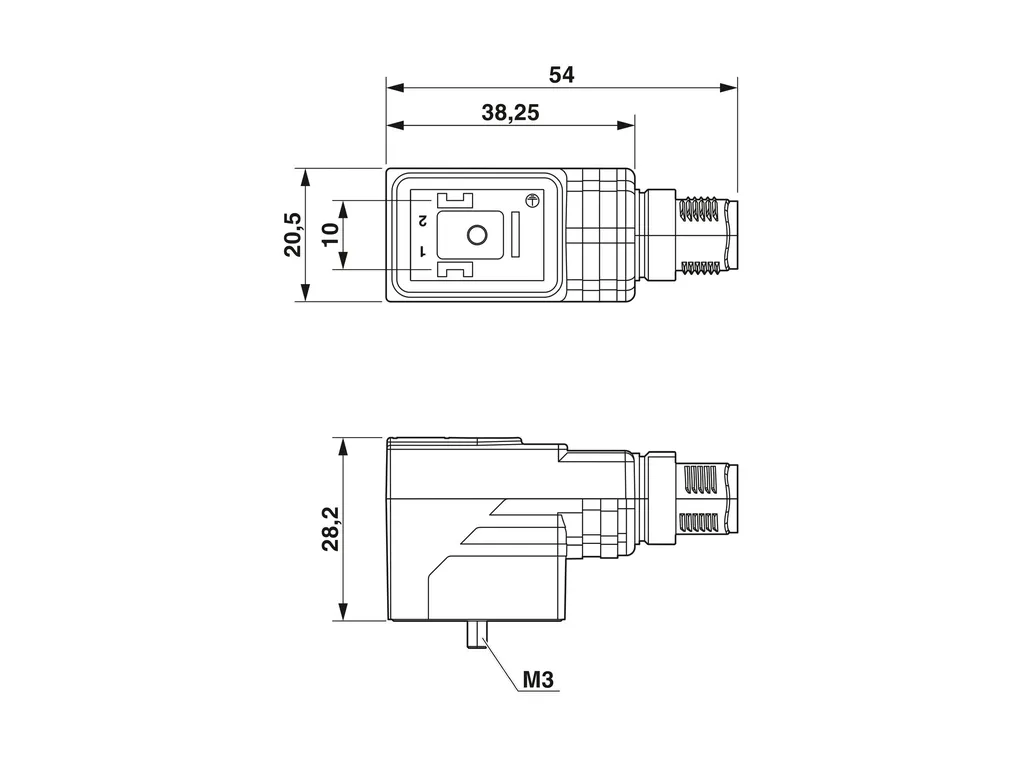

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/8e5027037d99e0469de93b21d567d8a9/-S204x204-FJPG Width: 20 mm Height: 28.2 mm Length: 54 mm
Connection data	Connection method: M12 connector Tightening torque: 0.6 Nm (valve plug)
Electrical properties	Contact resistance: Ã¢Ã¢°¤ 5 mÃ© Insulation resistance: Ã¢Ã¢°¥ 100 MÃ© Nominal voltage U_N: 24 VÃAC 24 VÃDC Nominal current I_N: 4 A Protective circuit: Z diode Valve connector characteristics Fixing screws: M3 x 29 Pulse power: 40 W (at 100ÃÃµs square-wave pulse) Terminal voltage: 70 V (at 2ÃmA constant current) Reverse voltage: 50 V
Mechanical properties	Mechanical data Insertion/withdrawal cycles: 50 (valve plug) Ã¢Ã¢°¥ 100 (M12 connector)
Material specifications	Flammability rating according to UL 94: HB Seal material: TPU Material housing valve plug: TPU Contact material: CuSn Contact surface material: Ni/Au Sn Contact carrier material: PA 66 Valve plug contact insert material: PA 6.6 Material for screw connection: Zinc die-cast, nickel-plated
Signaling	Status display: Yellow LED Status display present: Yes
Connector	Connection 1 Type: Plug angled M12 Number of positions: 3 Coding type: A Connection 2 Type: Valve connector B (10Ãmm) Number of positions: 3 Material: CuSn (Contact) Sn (Contact surface) PA 6.6 (Contact carriers) TPU (Housing)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -25°C ... 85°C (valve plug)
Standards and regulations	M12 Standard designation: M12 connector Standards/specifications: IEC 61076-2-101 Valve connector Standard designation: Valve connector Standards/specifications: ENÃ175301-803
