1476832 PHOENIX CONTACT -

SAC-3P-P12MS/ 0,6-PUR/P12FS SH - Sensor/actuator cable

Sensor/actuator cable, 3-position, PUR halogen-free, black-gray RAL 7021, shielded (Advanced Shielding Technology), Plug straight M12, coding: A Push Pull, connected with unwired, on Socket straight M12, coding: A Push Pull, cable length: 0.6 m

Cod. Articolo: 1476832 copia - copy

Cod. Fornitore: 1476832 copia - copy

PHOENIX CONTACT

Mounting	Connection method: Push-Pull
Product properties	Product type: Sensor/actuator cable Number of positions: 3 Application: Standard No. of cable outlets: 1 Shielded: yes Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3
Material specifications	Flammability rating according to UL 94: V0 Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuSn Contact surface material: Ni/Au Outer sheath, material: PUR Conductor material: Bare Cu litz wires
Electrical properties	Contact resistance: Ã¢Ã¢°¤ 5 mÃ© Insulation resistance: Ã¢Ã¢°¥ 100 MÃ© Nominal voltage U_N: 48 VÃAC 60 VÃDC Nominal current I_N: 4 A Protective circuit: unwired Max. conductor resistance: 58 Ã©/km
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢Ã¢°¥ 100 Max. bending cycles: 10000000
Signaling	Status display: No Status display present: No
Connection data	Connection technology Connection method: Push-Pull Conductor connection Connection method: Push-Pull Tightening torque: M12 push-pull connectors

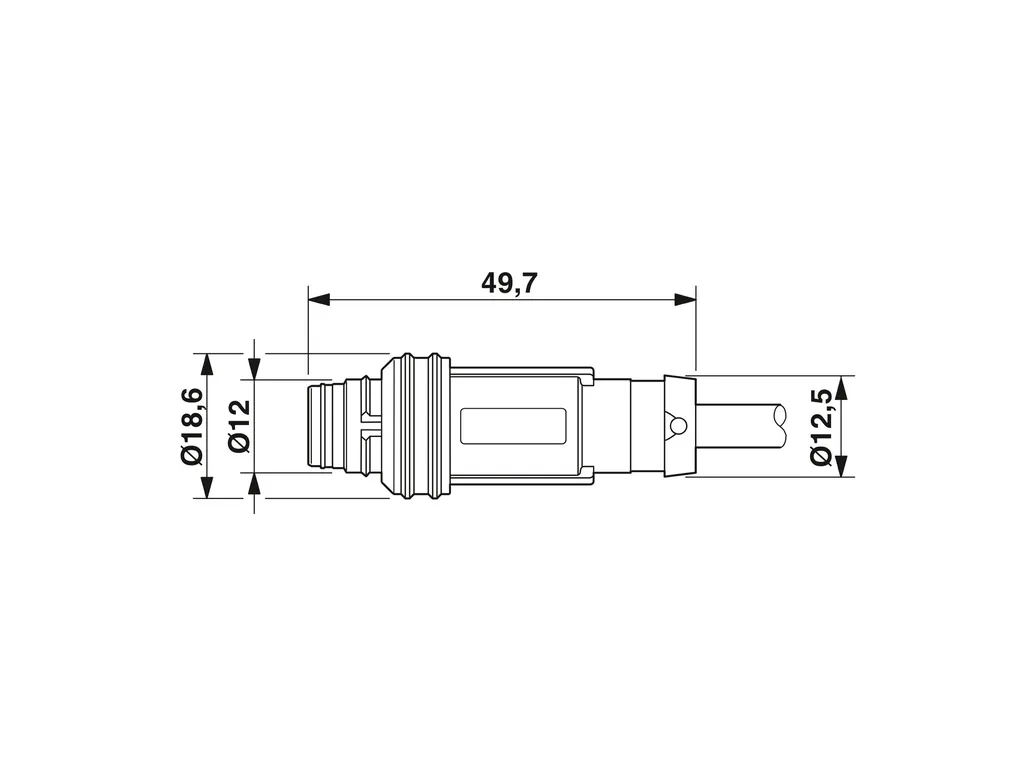

Connector	Connection 1 Type: Plug straight M12 Push Pull Number of positions: 3 Coding type: A Locking type: Push Pull Connection 2 Type: Socket straight M12 Push Pull Number of positions: 3 Coding type: A Locking type: Push Pull
Cable/line	Cable length: 0.6 m PUR halogen-free blackÃ[PUR] Cable weight: 31 kg/km UL AWM Style: 20549 Number of positions: 3 Shielded: yes Cable type: PUR halogen-free blackÃ[PUR] Conductor structure signal line: 42x 0.10 mm AWG signal line: 22 Conductor cross section: 3x 0.34 mm² (Signal line) Wire diameter incl. insulation: 1.27 mm Ã±0.02Ãmm (Signal line) External cable diameter: 4.65 mm Ã±0.15Ãmm Outer sheath, material: PUR External sheath, color: black-gray RAL 7021 Conductor material: Bare Cu litz wires Material wire insulation: PP Single wire, color: brown, blue, black Thickness, insulation: Ã¢Ã¢°¥ 0.21 mm (Core insulation) approx. 0.5 mm (Outer cable sheath) Overall twist: 3 wires, twisted Optical shield covering: 80 % Max. conductor resistance: max. 58 Ã©/km (at 20Ã°C) Insulation resistance: Ã¢Ã¢°¥ 100 GÃ©*km (at 20Ã°C) Nominal voltage, cable: Ã¢Ã¢°¤ 300 V Test voltage: Ã¢Ã¢°¥ 3000 V Smallest bending radius, fixed installation: 23 mm Smallest bending radius, movable installation: 47 mm Max. bending cycles: 10000000 Halogen-free: in accordance with DINÃVDEÃ0472 partÃ815 Flame resistance: in accordance with ULÃ758/1581 FT2 DINÃENÃ60332-2-2 (20Ãs) Resistance to oil: in accordance with DINÃENÃ60811-2-1 Other resistance: Highly resistant to acids, alkaline solutions and solvents hydrolysis and microbe resistant partly UV-resistant in accordance with DINÃENÃISOÃ4892-2-A Special properties: Flexible cable conduit capable Silicone-free Free of substances which would hinder coating with paint or varnish Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation) -25°C ... 80°C (Cable, flexible installation)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): 85°C (Plug / socket) -25°C ... 80°C (cable, fixed installation) -5°C ... 80°C (Cable, flexible installation)
Standards and regulations	Standard designation: M12-Push-Pull Standards/specifications: IEC 61076-2-010
