| Mounting | Connection method: Push-Pull |
| Product properties | Product type: Sensor/actuator cable Number of positions: 5 Application: Standard No. of cable outlets: 1 Shielded: yes Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: V0 Outer sheath, material: PUR Conductor material: Bare Cu litz wires |
| Electrical properties | Contact resistance: ââ°¤ 5 mé Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 48 VÃAC 60 VÃDC Nominal current IN: 4 A Protective circuit: unwired Max. conductor resistance: 58 é/km |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 100 Max. bending cycles: 10000000 |
| Signaling | Status display: No Status display present: No |
| Connection data | Connection technology Connection method: Push-Pull Conductor connection Connection method: Push-Pull |
| Connector | Connection 1 Type: Plug straight M12 Push Pull Number of positions: 5 Coding type: A Locking type: Push Pull Connection 2 Type: free cable end |

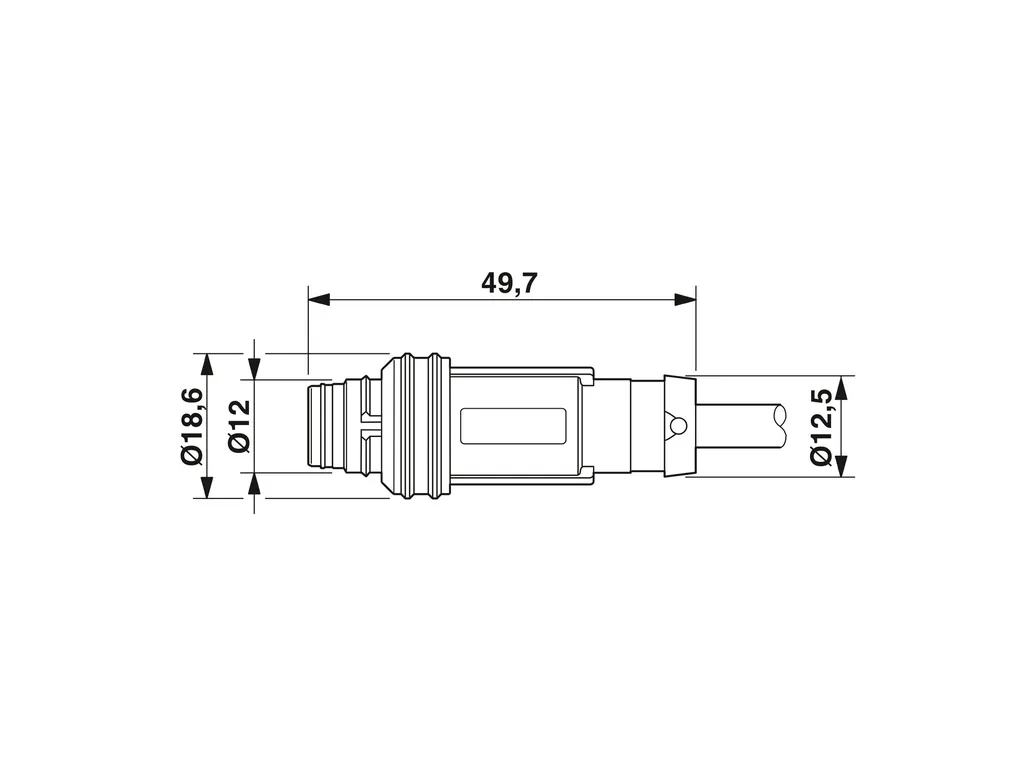

| Cable/line | Cable length: 10 m PUR halogen-free blackÃ[PUR] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/f6755140b03f3e4c93664b7e04b3af23/-S204x204-FJPG Cable weight: 43 kg/km UL AWM Style: 20549 / 10493 (80°C/300 V) Number of positions: 5 Shielded: yes Cable type: PUR halogen-free blackÃ[PUR] Conductor structure signal line: 42x 0.10 mm AWG signal line: 22 Conductor cross section: 5x 0.34 mm² (Signal line) Wire diameter incl. insulation: 1.27 mm ñ0.02Ãmm (Signal line) External cable diameter: 5.25 mm ñ0.2Ãmm Outer sheath, material: PUR External sheath, color: black-gray RAL 7021 Conductor material: Bare Cu litz wires Material wire insulation: PP Single wire, color: brown, white, blue, black, gray Thickness, insulation: ââ°¥ 0.21 mm Thickness, outer sheath: approx. 0.5 mm Overall twist: 5 wires around filler to the core Optical shield covering: 80 % Max. conductor resistance: max. 57 é/km (at 20ðC) Insulation resistance: 70 Gé*km (at 20ðC) Nominal voltage, cable: 300 V (at 20ðC) Test voltage Core/Core: 3000 V (at 20ðC) Smallest bending radius, fixed installation: 26 mm Smallest bending radius, movable installation: 52 mm (up to +60ðC) Max. bending cycles: 10000000 Halogen-free: in accordance with DINÃVDEÃ0472 partÃ815 in accordance with DINÃENÃ50267-2-1 Flame resistance: in accordance with ULÃ758/1581 FT2 DINÃENÃ60332-2-2 (20Ãs) Resistance to oil: in accordance with DIN EN 60811-2-1 Other resistance: Highly resistant to acids, alkaline solutions and solvents hydrolysis and microbe resistant Resistant to salt water partly UV-resistant in accordance with DINÃENÃISOÃ4892-2-A abrasion-resistant Special properties: Flexible cable conduit capable Silicone-free Free of substances which would hinder coating with paint or varnish Low adhesion surface Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation) -25°C ... 80°C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -25°C ... 85°C (Plug / socket) -40°C ... 80°C (cable, fixed installation) -25°C ... 80°C (Cable, flexible installation) |
| Standards and regulations | Standard designation: M12-Push-Pull Standards/specifications: IEC 61076-2-010 |
