1490382 PHOENIX CONTACT -

QPD STAS 3PE1,5 BK - Connector

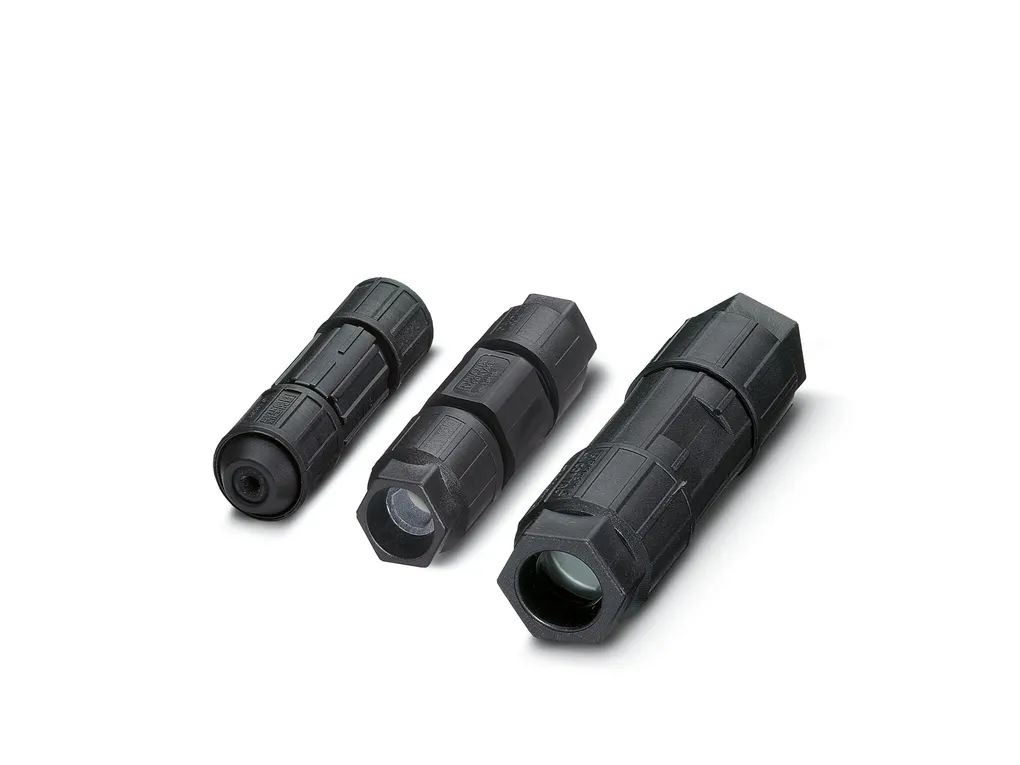

Connector, product family: QPD, connection method: IDC connection, number of positions: 3+PE, 0.5 mm² ... 1.5 mm², 400 V, 16 A AC, black, with one QUICKON nut, external cable diameter: 7 mm ... 13 mm, Connectors for the motor connection of Venetian blinds, blinds, roller shutters, and awnings

Cod. Articolo: 1490382 copia - copy

Cod. Fornitore: 1490382 copia - copy

PHOENIX CONTACT

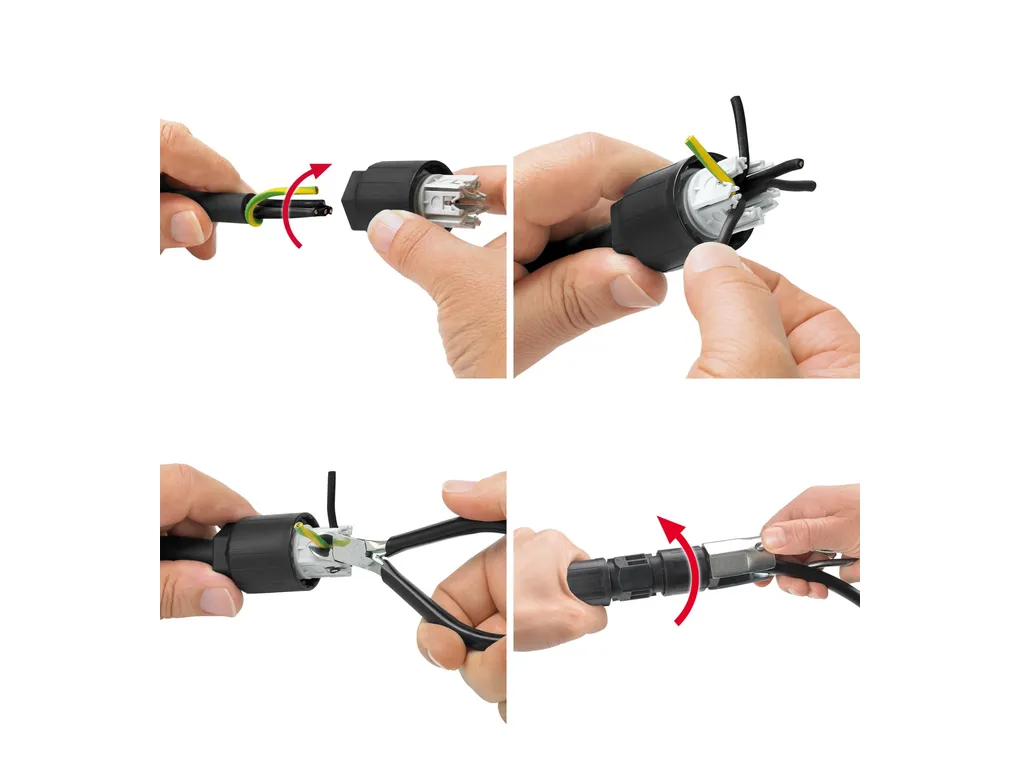

Notes	Assembly note: NOTE: Tighten the QUICKON nut all the way to the stop or to the specified torque. Notes on connection: You will find notes on assembly in our assembly video.
Product properties	Product type: Installation connector Product family: QPD Number of positions: 4 Connection profile: 3+PE Position marking: 1, 2, 3, PE Number of connections per position: 1 Data management status Article revision: 01 Insulation characteristics Overvoltage category: III Degree of pollution: 3
Electrical properties	Rated surge voltage (III/3): 6 kV Rated voltage (III/3): 400 V Nominal voltage U_N: 400 V AC 250 V DC Nominal current I_N: 16 A AC 10 A DC
Connection data	Connection technology Connection method On the device side: IDC connection Frequency of connections between conductors of the same cross section: max. 10 Conductor connection Conductor cross section flexibel: 0.5 mm² ... 1.5 mm² Conductor cross section solid: 0.5 mm² ... 1.5 mm² Connection cross section AWG: 20 ... 16 Tightening torque Union nut: 8 Nm
Dimensions	Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/331112/full/b1500?format=jpg Width: 27.5 mm Height: 26 mm Length: 66 mm
Material specifications	Color: black (RAL 9005) Material wire insulation: PVC/PE/TPE/rubber Contact material: CuZn Contact surface material: silver-plated Contact carrier material: PA
Cable/line	Structure of individual litz in acc. with VDE 0295 / smallest wire diameter: VDE 0295 class 1 to 6/min. 0.15 mm External cable diameter: 7 mm ... 13 mm Wire diameter including insulation: 1.6 mm ... 3 mm Position marking: 1, 2, 3, PE Single wire, color: Blue 1, black 2, brown 3, green-yellow PE
Mechanical properties	Mechanical data Insertion/withdrawal cycles: 50
Environmental and real-life conditions	Ambient conditions Degree of protection: IP54 Ambient temperature (operation): -40 °C ... 100 °C Temperature when conductor connected: -5 °C ... 50 °C Ambient temperature (storage/transport): -40 °C ... 100 °C
