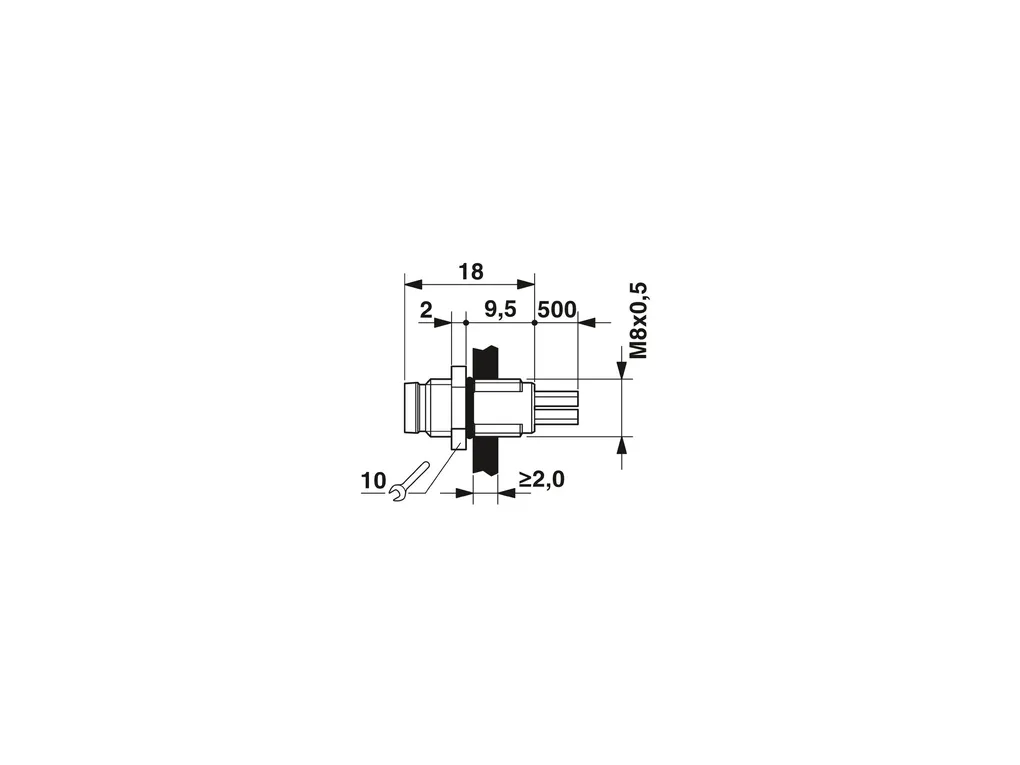

| Mounting | Mounting type: Front mounting M8 x 0.5 Connection method: Individual wires |
| Product properties | Product type: Circular connectors (device side) Number of positions: 4 No. of cable outlets: 1 Shielded: no Coding: A Thread type: M8 Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: HB Seal material: Viton Contact material: Cu alloy Contact surface material: Au Contact carrier material: PA 6.6 Material for screw connection: Brass, nickel-plated Conductor material: Tin-plated Cu litz wires |
| Electrical properties | Rated surge voltage: 1.5 kV Contact resistance: ââ°¤ 3 mé Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 48 VÃAC 60 VÃDC Nominal current IN: 4 A Max. conductor resistance: 80 é/km |
| Connection data | Conductor connection Connection method: Individual wires Contact connection type: Pin Conductor cross section: 0.25 mm² Tightening torque: 0.8 Nm 1 Nm |
| Connector | Connection 1 Head design: Pin Head cable outlet: straight Head thread type: M8 |
| Cable/line | Cable length: 0.5 m Cable type: PVC litz wire Wire diameter incl. insulation: 1.5 mm ñ0.1Ãmm Single wire, color: brown, white, blue, black Cable cross section: 0.25 mm² Conductor material: Tin-plated Cu litz wires Conductor structure signal line: 7x 0.20 mm AWG signal line: 24 Material wire insulation: PVC / UL Thickness, insulation: 0.21 mm Nominal voltage, cable: 300 V Test voltage, cable: 2000 VÃAC Cable resistance: ââ°¥ 80 é/km Cable insulation resistance: ââ°¥ 20 Mé*km Ambient temperature (operation): -40°C ... 105°C (cable, fixed installation) -10°C ... 105°C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -25°C ... 85°C (Plug / socket) -40°C ... 105°C (cable, fixed installation) -10°C ... 105°C (Cable, flexible installation) |
| Standards and regulations | M8 Standard designation: M8 connector Standards/specifications: IEC 61076-2-104 |
