| Product properties | Product type: Sensor/actuator cable Number of positions: 4 Application: Standard No. of cable outlets: 1 Shielded: yes Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: HB Seal material: NBR Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: TPU GF Material for screw connection: Zinc die-cast, nickel-plated |
| Electrical properties | Contact resistance: ≤ 5 mΩ Insulation resistance: ≥ 100 MΩ Nominal voltage UN: 48 VÂAC 60 VÂDC Nominal current IN: 4 A Protective circuit: unwired |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ≥ 100 |
| Signaling | Status display: No Status display present: No |
| Connection data | Conductor connection Tightening torque: 0.4 Nm (M12 connector) |
| Connector | Connection 1 Type: Plug straight M12 Number of positions: 4 Coding type: A Connection 2 Type: Socket angled M12 Number of positions: 4 Coding type: A |

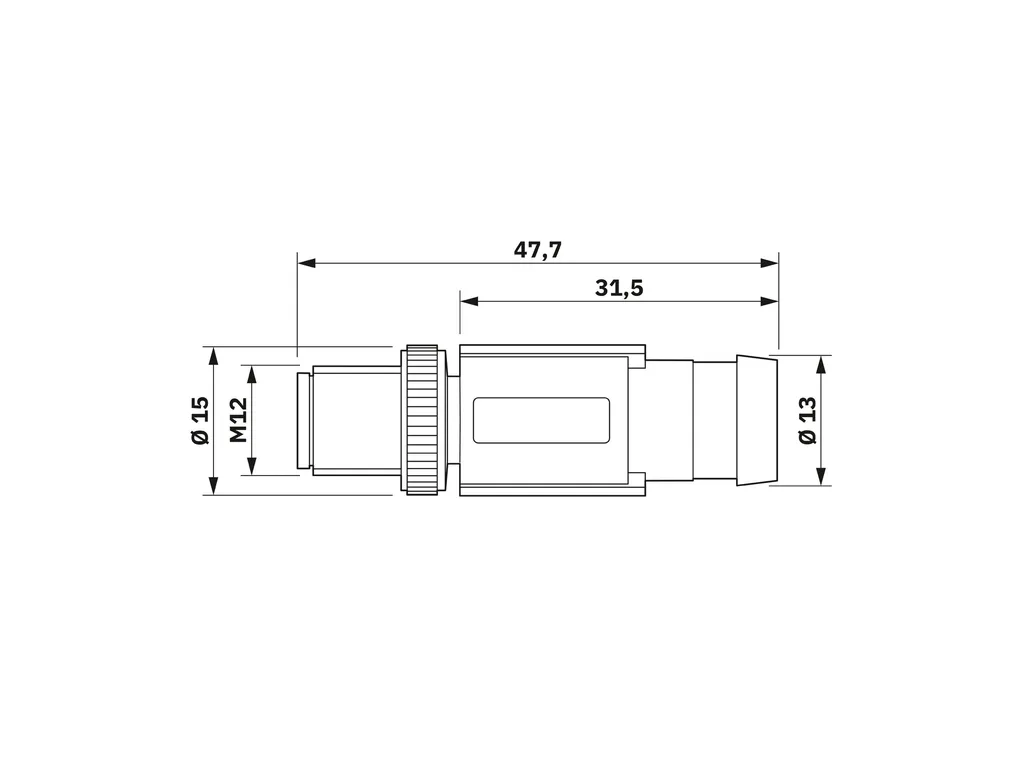

| Cable/line | Cable length: 1.5 m PUR halogen-free blackÂ[PUR] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/1dd0a59ac9b0654f8f44be5d879d6b87/-S204x204-FJPG Cable weight: 36 kg/km UL AWM Style: 20549 / 10493 (80°C/300 V) Number of positions: 4 Shielded: yes Cable type: PUR halogen-free blackÂ[PUR] Conductor structure signal line: 42x 0.10 mm AWG signal line: 22 Conductor cross section: 4x 0.34 mm² (Signal line) Wire diameter incl. insulation: 1.27 mm ±0.02Âmm (Signal line) External cable diameter: 4.95 mm ±0.2Âmm Outer sheath, material: PUR External sheath, color: black-gray RAL 7021 Conductor material: Bare Cu litz wires Material wire insulation: PP Single wire, color: brown, white, blue, black Thickness, insulation: ≥ 0.21 mm Thickness, outer sheath: approx. 0.5 mm Overall twist: 4 wires, twisted Optical shield covering: 80 % Max. conductor resistance: max. 58 Ω/km (at 20°C) Insulation resistance: ≥ 100 GΩ*km (at 20°C) Wave impedance: ≥ 62 Ω (f = 10ÂMHz) Cable capacity: ≤ 80 pF/m (Conductor-Conductor) ≤ 135 pF/m (Wire/shield) Nominal voltage, cable: ≤ 300 V Test voltage: ≥ 3000 V Minimum bending radius, fixed installation: 5 x D Minimum bending radius, flexible installation: 10 x D Smallest bending radius, fixed installation: 25 mm Smallest bending radius, movable installation: 50 mm Max. bending cycles: 10000000 Halogen-free: in accordance with DINÂVDEÂ0472 partÂ815 in accordance with DINÂENÂ50267-2-1 Flame resistance: in accordance with ULÂ758/1581 FT2 DINÂENÂ60332-2-2 (20Âs) Resistance to oil: in accordance with DINÂENÂ60811-2-1 Other resistance: Highly resistant to acids, alkaline solutions and solvents hydrolysis and microbe resistant Resistant to salt water partly UV-resistant in accordance with DINÂENÂISOÂ4892-2-A abrasion-resistant Special properties: Flexible cable conduit capable Silicone-free Free of substances which would hinder coating with paint or varnish Low adhesion surface Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation) -25°C ... 80°C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -25°C ... 90°C (Plug / socket) -25°C ... 80°C (cable, fixed installation) -5°C ... 80°C (Cable, flexible installation) |
| Standards and regulations | Standard designation: M12 connector Standards/specifications: IEC 61076-2-101 |
