| Product properties | Product type: Sensor/actuator cable Number of positions: 3 No. of cable outlets: 1 Shielded: no Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: HB Seal material: NBR Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: TPU GF Material for screw connection: Zinc die-cast, nickel-plated Outer sheath, material: PUR Conductor material: Bare Cu litz wires |
| Electrical properties | Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 250 V AC 250 V DC Nominal current IN: 4 A Max. conductor resistance: 58 é/m |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 100 Max. bending cycles: 4000000 |
| Signaling | Status display: no Status display present: No |
| Connection data | Conductor connection Tightening torque: 0.4 Nm |

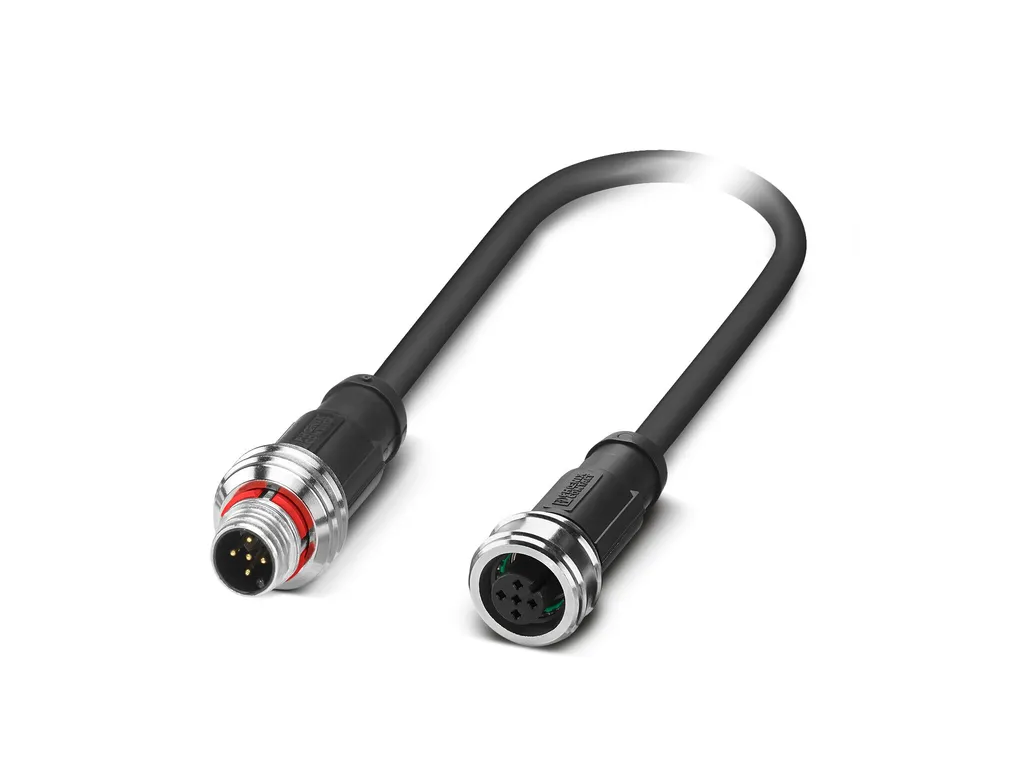

| Connector | Connection 1 Type: Plug straight M12 Number of positions: 3 Coding type: A Connection 2 Type: Socket straight M12 Number of positions: 3 Coding type: A |
| Cable/line | Cable length: 15 m PUR halogen-free black [PUR] Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/8946/full/b1500?format=jpg Cable weight: 23 kg/km UL AWM Style: 20549 Number of positions: 3 Shielded: no Cable type: PUR halogen-free black [PUR] Conductor structure signal line: 42x 0.10 mm AWG signal line: 22 Conductor cross section: 3x 0.34 mm² (Signal line) Wire diameter incl. insulation: 1.27 mm ñ0.02 mm (Signal line) External cable diameter: 3.85 mm ñ0.15 mm Outer sheath, material: PUR External sheath, color: black-gray RAL 7021 Conductor material: Bare Cu litz wires Material wire insulation: PP Single wire, color: brown, blue, black Thickness, insulation: ââ°¥ 0.21 mm (Core insulation) approx. 0.50 mm (Outer cable sheath) Overall twist: 3 wires, twisted Max. conductor resistance: max. 58 é/km (at 20 °C) Insulation resistance: ââ°¥ 100 Gé*km (at 20 °C) Nominal voltage, cable: ââ°¤ 300 V Test voltage: ââ°¥ 3000 V Smallest bending radius, fixed installation: 19 mm Smallest bending radius, movable installation: 38 mm Dynamic load capacity (bending): Max. bending cycles: 10000000, Bending radius: 38 mm, Traversing path: 10 m, Traversing rate: 3 m/s, Acceleration: 10 m/s² Halogen-free: in accordance with DIN VDE 0472 part 815 Flame resistance: in accordance with UL 758/1581 FT2 DIN EN 60332-2-2 (20 s) Resistance to oil: in accordance with DIN EN 60811-2-1 Other resistance: Highly resistant to acids, alkaline solutions and solvents hydrolysis and microbe resistant partly UV-resistant (in accordance with DIN EN ISO 4892-2-A) Special properties: Flexible cable conduit capable Silicone-free Free of substances which would hinder coating with paint or varnish Ambient temperature (operation): -40 °C ... 80 °C (cable, fixed installation) -25 °C ... 80 °C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 IP68 Ambient temperature (operation): -25 °C ... 90 °C (Plug / socket) -40 °C ... 80 °C (cable, fixed installation) -5 °C ... 80 °C (Cable, flexible installation) |
