| Product properties | Product type: Sensor/actuator cable Number of positions: 5 No. of cable outlets: 1 Shielded: no Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: HB Seal material: NBR Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: TPU GF Material for screw connection: Zinc die-cast, nickel-plated |
| Electrical properties | Contact resistance: ââ°¤ 5 mé Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 48 VÃAC 60 VÃDC Nominal current IN: 4 A |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 100 |
| Signaling | Status display: No Status display present: No |
| Connector | Connection 1 Type: free cable end Connection 2 Type: Socket angled M12 Number of positions: 5 Coding type: A |

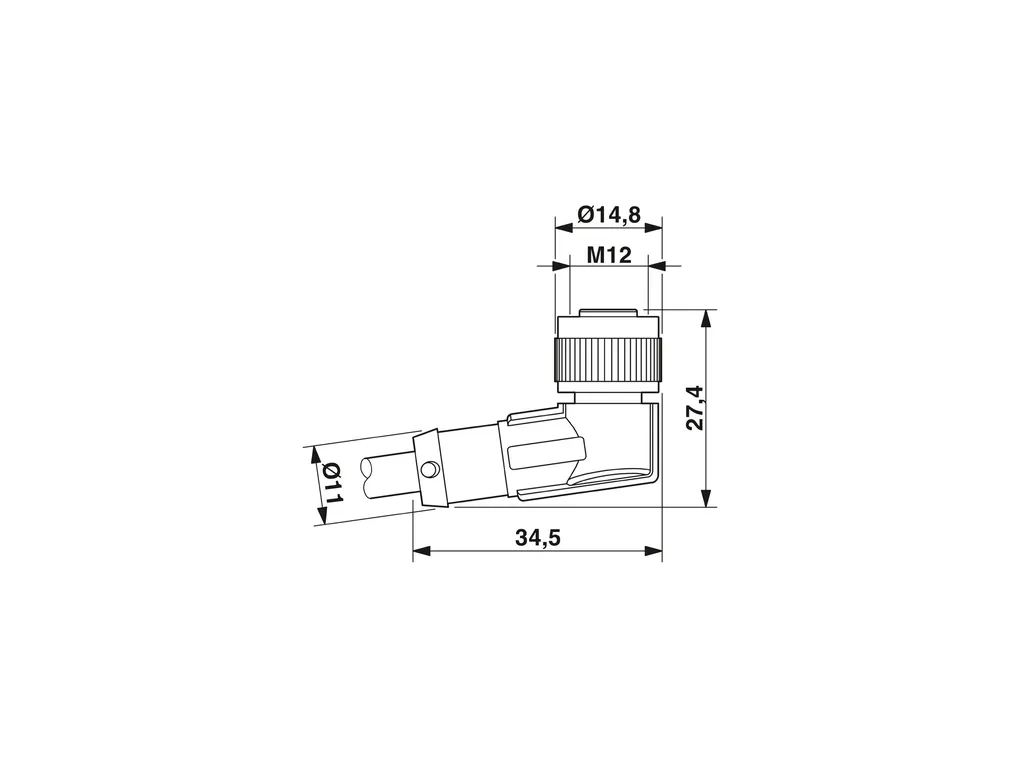

| Cable/line | Cable length: 5 m PUR, black, 5th conductor grayÃ[115] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/f01b9c0dd03c6e4285b6abec76fc8d33/-S204x204-FJPG Cable weight: 35 kg/km UL AWM Style: 20549 / 10493 (80°C/300 V) Number of positions: 5 Shielded: no Cable type: PUR, black, 5th conductor grayÃ[115] Conductor structure signal line: 42x 0.10 mm AWG signal line: 22 Conductor cross section: 5x 0.34 mm² Wire diameter incl. insulation: 1.27 mm ñ0.02Ãmm External cable diameter: 5 mm ñ0.15Ãmm Outer sheath, material: PUR External sheath, color: black-gray RAL 7021 Conductor material: Bare Cu litz wires Material, filler: PP Material wire insulation: PP Single wire, color: brown, white, blue, black, gray Thickness, insulation: ââ°¥ 0.21 mm Thickness, outer sheath: approx. 0.7 mm Overall twist: 5 cores, twisted Max. conductor resistance: ââ°¤ 58 é/km Nominal voltage, cable: ââ°¤ 300 V Test voltage: ââ°¥ 3000 V Minimum bending radius, fixed installation: 5 x D Minimum bending radius, flexible installation: 10 x D Max. bending cycles: 4000000 Halogen-free: in accordance with DINÃVDEÃ0472 partÃ815 Flame resistance: in accordance with DIN UL-Style 20549 in accordance with ULÃ758/1581 FT2 Resistance to oil: in accordance with DINÃENÃ60811-2-1 Other resistance: partly UV-resistant in accordance with DINÃENÃISOÃ4892-2-A hydrolysis and microbe resistant Resistant to salt water Low adhesion abrasion-resistant Special properties: Flexible cable conduit capable Silicone-free Free of substances which would hinder coating with paint or varnish flexible Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation) -25°C ... 80°C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 IP68 Ambient temperature (operation): -25°C ... 90°C (Plug / socket) -40°C ... 80°C (cable, fixed installation) -5°C ... 80°C (Cable, flexible installation) |
