| Product properties | Product type: Terminal resistor Number of positions: 5 Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Electrical properties | Nominal voltage UN: 48 VÃAC 60 VÃDC 5 Vrms Nominal current IN: 4 A 45 mA (Ieff) General Termination resistor: 120 é ñ1Ã% Power consumption: ââ°¤ 0.25 W |
| Signaling | Status display: No Status display present: No |

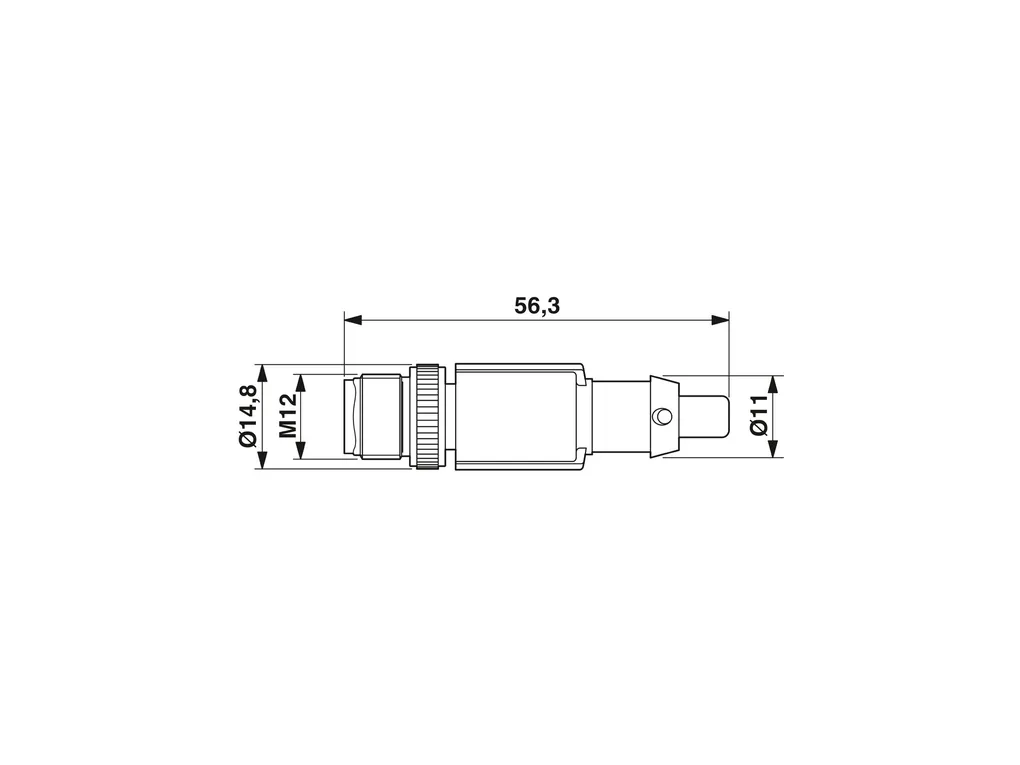

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/9b835174c94d164a9a2bd162b64434f6/-S204x204-FJPG Width: 15 mm Height: 14.8 mm Length: 56.3 mm |
| Material specifications | Flammability rating according to UL 94: HB Seal material: NBR Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: TPU GF Material for screw connection: Zinc die-cast, nickel-plated |
| Connector | Connection 1 Type: Plug straight M12 Coding type: A Connection 2 Type: free cable end |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 100 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -25°C ... 90°C (Plug) |
| Approvals | National Marine Electronics Association Certificate: approved |
