1516894 PHOENIX CONTACT -

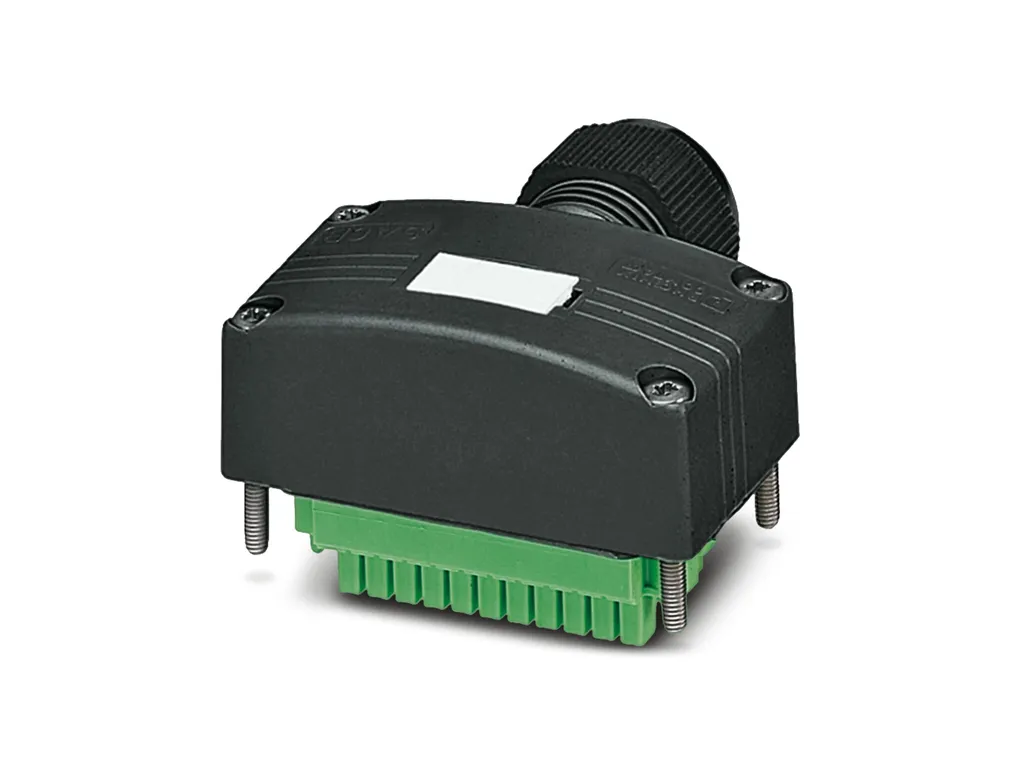

SACB-8/16-C SCO - Distributor box

Distributor box, application: Standard, connection method: M12-SPEEDCON-socket Metal, number of slots: 8, number of positions: 5, coding: A, slot assignment: Double, status display: No, Universal; master cable connection: Pluggable screw connection 180°, shielding: no

Cod. Articolo: 1516894 copia - copy

Cod. Fornitore: 1516894 copia - copy

PHOENIX CONTACT

Notes	General: For details about the PCB connectors used, refer to the technical data for MC 1,5/10-STF-3,5 (1847204) NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.Ãby using cable ties. Unused slots are to be sealed off prior to commissioning. Suitable sealing elements are to be found under "Accessories".
Product properties	Product type: Distributor boxes with M8 to M12 slots Number of positions: 5 Application: Standard Number of slots: 8 Coding: A LED: No
Material specifications	Material: Die-cast zinc PBT PUR Flammability rating according to UL 94: V0 Seal material O-ring: NBR Contact material: Cu alloy Contact surface material: gold-plated Contact carrier material: PA Material of contact, master cable side: CU alloy Material of the contact carrier on the master cable side: PA 6.6 V0 Material of contact surface, master cable side: gold-plated
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/43b565cd0c4f79489ac26fe35556ea7a/-S204x204-FJPG Width: 58 mm Height: 45 mm Length: 153 mm
Connection data	Conductor connection Connection method: Pluggable screw connection Stripping length: 7 mm Conductor cross section Flexible signal line: 0.14 mm² ... 1.5 mm² Conductor cross section Flexible power supply: 0.14 mm² ... 1.5 mm² Connection cross section AWG Flexible signal line: 26 ... 16 Connection cross section AWG Flexible power supply: 26 ... 16 Tightening torque, cover screw: 0.35 Nm Tightening torque slot sensor/actuator cable: 0.4 Nm Tightening torque of mounting screw for fixing the housing: 0.5 Nm Pin assignment Slot/position = Wire color or connection: 1 / 4 (A)Ã=Ã1 / 4 1 / 2 (B)Ã=Ã1 / 2 2 / 4 (A)Ã=Ã2 / 4 2 / 2 (B)Ã=Ã2 / 2 3 / 4 (A)Ã=Ã3 / 4 3 / 2 (B)Ã=Ã3 / 2 4 / 4 (A)Ã=Ã4 / 4 4 / 2 (B)Ã=Ã4 / 2 5 / 4 (A)Ã=Ã5 / 4 5 / 2 (B)Ã=Ã5 / 2 6 / 4 (A)Ã=Ã6 / 4 6 / 2 (B)Ã=Ã6 / 2 7 / 4 (A)Ã=Ã7 / 4 7 / 2 (B)Ã=Ã7 / 2 8 / 4 (A)Ã=Ã8 / 4 8 / 2 (B)Ã=Ã8 / 2 1-8 / 1 (+ 120 V)Ã=ÃU_N 1-8 / 3 (0 V)Ã=Ã0 V 1-8 / 5 (PE)Ã=ÃPE
Signaling	Status display present: No
Electrical properties	Max. operating voltage U_max: 135 V Nominal voltage U_N: 120 VÃAC 120 VÃDC Rated current, total: 10 A 2x 8 A (For electrical isolation) Max. current carrying capacity per path: 2 A Current carrying capacity per slot: 4 A
Cable/line	Sensor/actuator connection system: M12-SPEEDCON-socket Connection method: Pluggable screw connection External cable diameter: 7 mm ... 12 mm Stripping length (signal): 7 mm Stripping length for sheath: 50 mm (Master cable) Tightening torque, cover screw: 0.35 Nm Tightening torque of mounting screw for fixing the housing: 0.5 Nm Tightening torque slot sensor/actuator cable: 0.4 Nm Tightening torque, union nut: 2.5 Nm
Standards and regulations	Standard designation: M12 connector Standards/specifications: IEC 61076-2-101
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65 IP67 IP69K Ambient temperature (operation): -30°C ... 80°C
