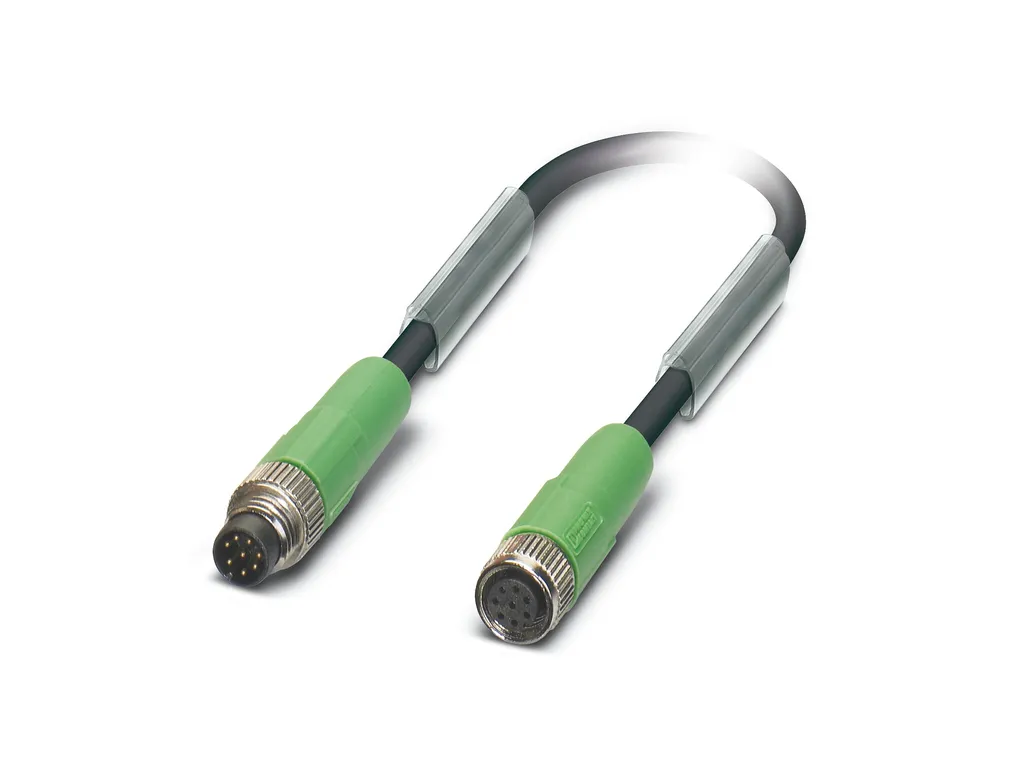

| Product properties | Product type: Data cable preassembled Sensor type: INTERBUS Number of positions: 5 Application: Standard No. of cable outlets: 1 Shielded: yes Coding: B Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Interfaces | Bus system: INTERBUS Signal type/category: INTERBUS, 16 Mbps |
| Signaling | Status display: No Status display present: No |
| Electrical properties | Contact resistance: ââ°¤ 5 mé Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 48 VÃAC 60 VÃDC Nominal current IN: 4 A Transmission medium: Copper |
| Material specifications | Flammability rating according to UL 94: V0 Seal material: NBR Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: PA 6.6 Material for screw connection: Zinc die-cast, nickel-plated |
| Connection data | Pin assignment Contact | Color (signal designation) | Contact (optional): 1 (Plug) | YE (DO) | 1 (Socket) 2 (Plug) | GN (DO) | 2 (Socket) 3 (Plug) | GY (DI) | 3 (Socket) 4 (Plug) | PK (DI) | 4 (Socket) 5 (Plug) | BN (GND) | 5 (Socket) |

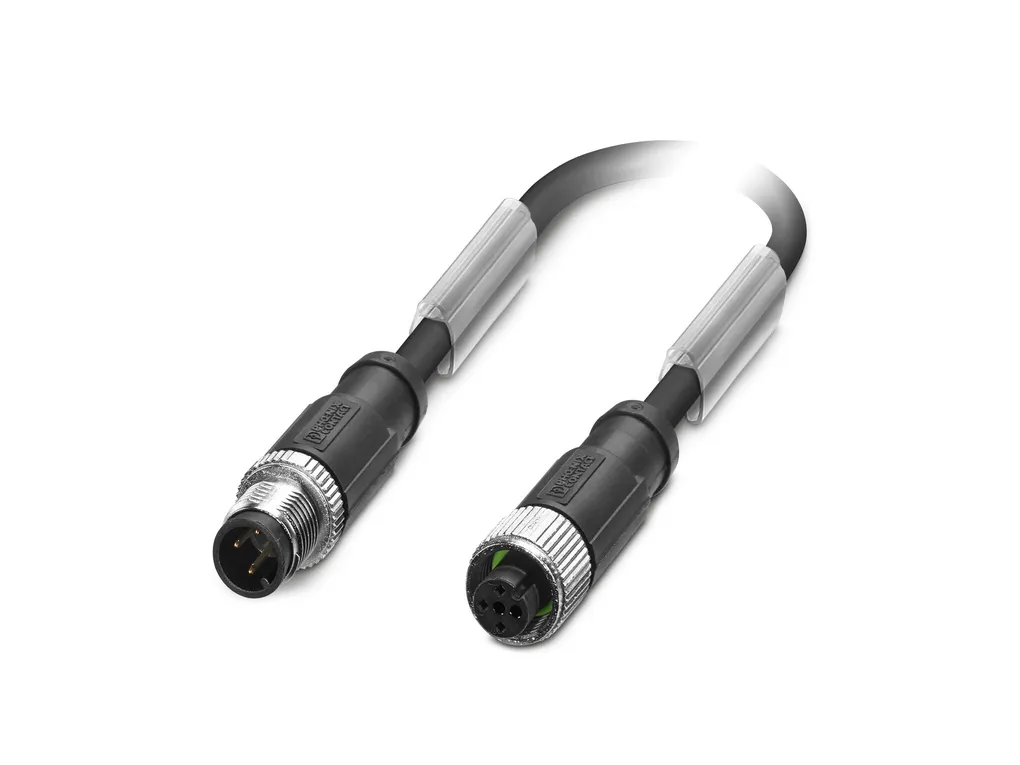

| Connector | Connection 1 Type: Plug straight M12 SPEEDCON Number of positions: 5 Coding type: B (inverse) Locking type: SPEEDCON Connection 2 Type: Socket straight M12 SPEEDCON Number of positions: 5 Coding type: B Locking type: SPEEDCON |
| Cable/line | Cable length: 10 m INTERBUSÃ[900] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/e9510efa11ce95448a7ed1ffa1fb852c/-S204x204-FJPG Cable weight: 70 kg/km Number of positions: 6 Shielded: yes Cable type: INTERBUSÃ[900] Conductor structure: 3 x 2 x 0.22 mm² Signal speed: 0.66 c Conductor structure signal line: 32x 0.10 mm AWG signal line: 24 Conductor cross section: 3x 2x 0.22 mm² External cable diameter: 8 mm Outer sheath, material: PUR External sheath, color: may green RAL 6017 Conductor material: Bare Cu litz wires Material wire insulation: PE Single wire, color: green-yellow, white-brown, gray-pink Twisted pairs: 2 cores to the pair Overall twist: 3 pairs to the core Insulation resistance: ââ°¥ 5 Gé*km Coupling resistance: < 250.00 mé/m (at 30 MHz) Loop resistance: ââ°¤ 159.80 é/km Wave impedance: 120 é ñ20Ã% (at 64ÃkHz) 100 é ñ15Ã% (with 1 MHz) Cable capacity: ââ°¤ 60 nF/km (At 800 Hz) Nominal voltage, cable: 250 V (Peak value, not for high-power applications) Test voltage Core/Core: 1500 Vrms Test voltage Core/Shield: 1000 Vrms Minimum bending radius, fixed installation: 7.5 x D Minimum bending radius, flexible installation: 15 x D Max. bending cycles: 5000000 Near end crosstalk attenuation (NEXT): ââ°¥ 61 dB (at 772ÃkHz) ââ°¥ 59 dB (with 1 MHz) ââ°¥ 55 dB (at 2ÃÃà Hz) ââ°¥ 50 dB (at 4 Ãà Hz) ââ°¥ 46 dB (at 8ÃÃà Hz) ââ°¥ 44 dB (at 10 MHz) ââ°¥ 41 dB (at 16 MHz) ââ°¥ 40 dB (at 20ÃÃà Hz) Shield attenuation: ââ°¤ 15 dB/km (at 256ÃkHz) ââ°¤ 24 dB/km (at 772ÃkHz) ââ°¤ 27 dB/km (with 1 MHz) ââ°¤ 52 dB/km (at 4 Ãà Hz) ââ°¤ 84 dB/km (at 10 MHz) ââ°¤ 112 dB/km (at 16 MHz) ââ°¤ 119 dB/km (at 20ÃÃà Hz) Flame resistance: according to VDEÃ0472, Part 4, test type B according to IEC 60332-1 Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation) -30°C ... 70°C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -25°C ... 90°C (Plug / socket) |
