1518151 PHOENIX CONTACT -

SAC-2P-MSB/10,0-910/FSB SCO - Bus system cable

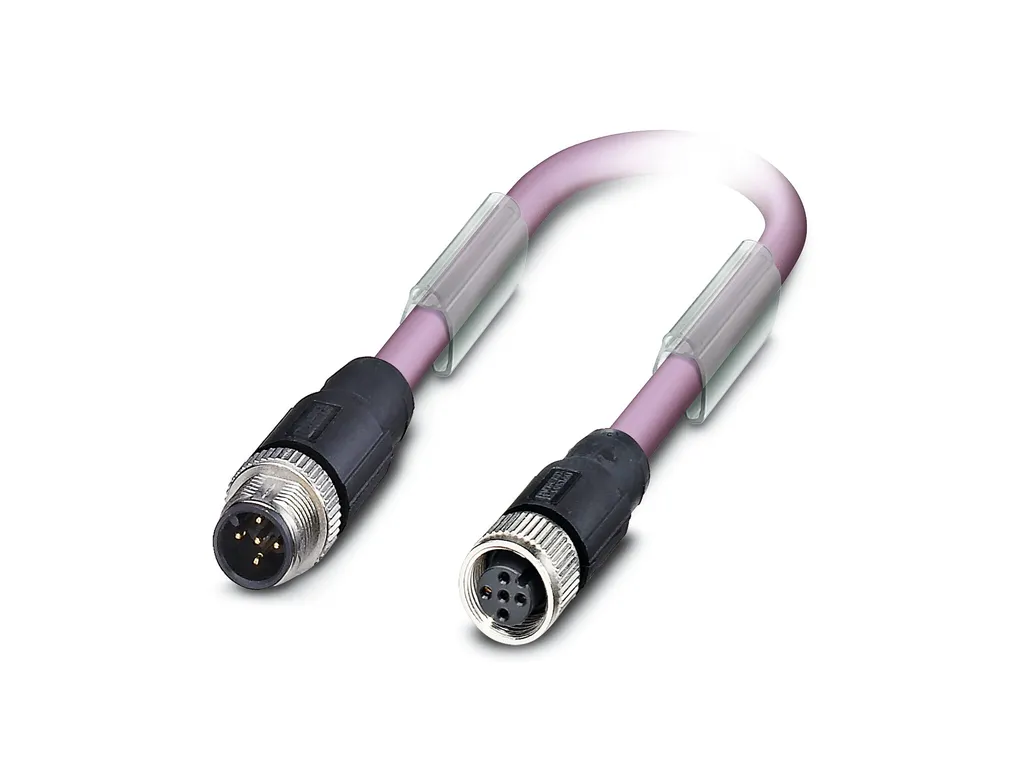

Bus system cable, PROFIBUS (12 Mbps), 2-position halogen-free, shielded, Plug straight M12, coding: B SPEEDCON, on Socket straight M12, coding: B SPEEDCON, cable length: 10 m

Cod. Articolo: 1518151 copia - copy

Cod. Fornitore: 1518151 copia - copy

PHOENIX CONTACT

Product properties	Product type: Data cable preassembled Sensor type: PROFIBUS Number of positions: 2 Application: Standard No. of cable outlets: 1 Shielded: yes Coding: B Insulation characteristics Overvoltage category: II Degree of pollution: 3
Interfaces	Bus system: PROFIBUS Signal type/category: PROFIBUS, 12 Mbps (max. 100Ãm)
Signaling	Status display: No Status display present: No
Electrical properties	Contact resistance: Ã¢Ã¢°¤ 5 mÃ© Insulation resistance: Ã¢Ã¢°¥ 100 MÃ© Nominal voltage U_N: 48 VÃAC 60 VÃDC Nominal current I_N: 4 A Transmission medium: Copper
Material specifications	Seal material: NBR Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: TPU GF Material for screw connection: Zinc die-cast, nickel-plated
Connection data	Pin assignment Contact \| Color (signal designation) \| Contact (optional): 2 (Plug) \| GN (A cable) \| 2 (Socket) 4 (Plug) \| RD (B cable) \| 4 (Socket)
Connector	Connection 1 Type: Plug straight M12 SPEEDCON Number of positions: 2 Coding type: B (inverse) Locking type: SPEEDCON Connection 2 Type: Socket straight M12 SPEEDCON Number of positions: 2 Coding type: B Locking type: SPEEDCON
Cable/line	Cable length: 10 m PROFIBUSÃ[910] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/f1dae8d6dde46a43ab41312f30ec04e8/-S204x204-FJPG Cable weight: 90 kg/km UL AWM Style: 21198 (80°C/300 V) Number of positions: 2 Shielded: yes Cable type: PROFIBUSÃ[910] Conductor structure: 1x2xAWG24/19 Conductor structure signal line: 19x 0.13 mm AWG signal line: 24 Conductor cross section: 2x 0.25 mm² (Signal line) Wire diameter incl. insulation: 2.55 mm Ã±0.07Ãmm External cable diameter: 7.8 mm Ã±0.2Ãmm Outer sheath, material: PUR External sheath, color: red lilac RAL 4001 Conductor material: Tin-plated Cu litz wires Material, filler: PP Material wire insulation: Foam-Skin PP Single wire, color: red, green Overall twist: 2 cores with 2 fillers to the core Optical shield covering: 85 % Max. conductor resistance: Ã¢Ã¢°¤ 78.6 Ã©/km Insulation resistance: Ã¢Ã¢°¥ 5 GÃ©*km Wave impedance: 150 Ã© Ã±10Ã% (3 MHz ... 20 MHz) Cable capacity: nom. 30 pF/m Nominal voltage, cable: 300 V Test voltage Core/Core: 1500 V (50ÃHz, 1Ãmin.) Test voltage Core/Shield: 1500 V (50ÃHz, 1Ãmin.) Smallest bending radius, fixed installation: 40 mm Smallest bending radius, movable installation: 65 mm Max. bending cycles: 4000000 5000000 Shield attenuation: Ã¢Ã¢°¤ 0.049 dB/m (at 16 MHz) Halogen-free: in accordance with DINÃVDEÃ0472 partÃ815 according to IEC 60754-1 Flame resistance: ULÃ1581, Section 1060 and ULÃ2556, Section 9.3 (FT1) ULÃ1581, Section 1100 and ULÃ2556, Section 9.1 (HFT/FT2) IEC 60332-1-2 Other resistance: Low adhesion Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation) -30°C ... 70°C (Cable, flexible installation) -20°C ... 60°C (for installation) -20°C ... 60°C (cable, drag chain applications)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -25°C ... 90°C (Plug / socket)
