Non disponibile
| Product properties | Product type: Sensor/actuator cable Number of positions: 5 Application: Standard No. of cable outlets: 1 Shielded: no Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: HB Seal material: NBR Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: TPU GF Material for screw connection: Zinc die-cast, nickel-plated |
| Electrical properties | Contact resistance: ââ°¤ 5 mé Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 48 VÃAC 60 VÃDC Nominal current IN: 4 A Protective circuit: unwired |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 100 |
| Signaling | Status display: No Status display present: No |
| Connector | Connection 1 Type: free cable end Connection 2 Type: Socket straight M12 SPEEDCON Number of positions: 5 Coding type: A Locking type: SPEEDCON |

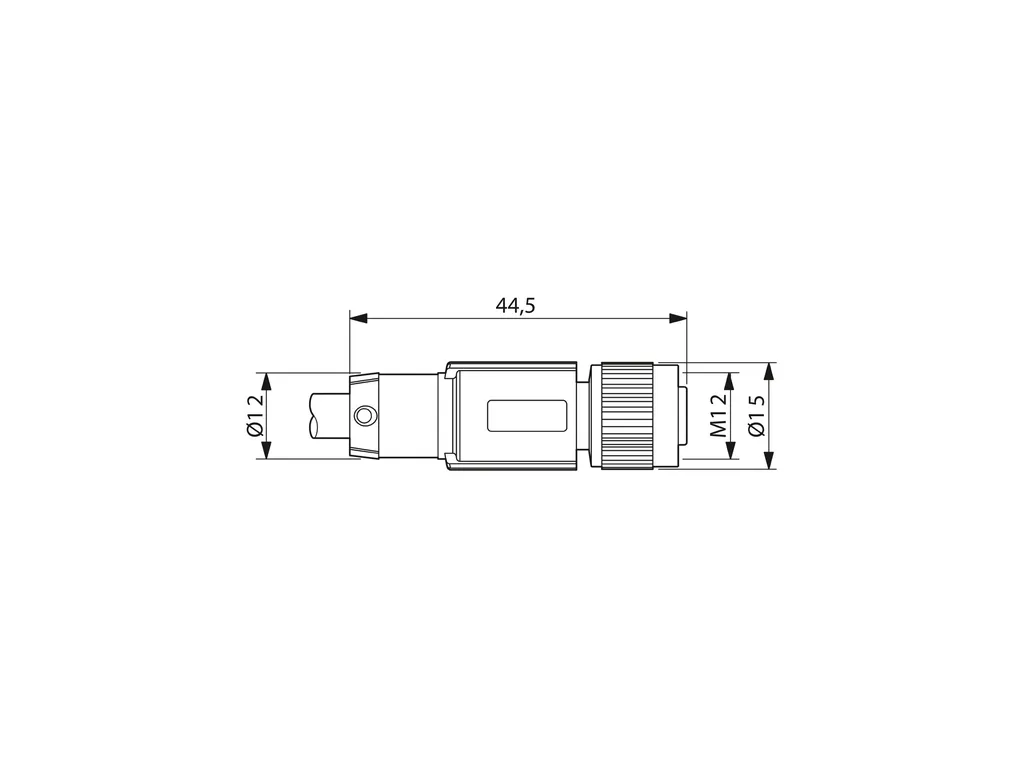

| Cable/line | Cable length: 15 m PUR POWER 0.75 mm² blackÃ[186] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/c89de4718c1b67458a2a69d5e7d5a1e0/-S204x204-FJPG Cable weight: 67 kg/km Number of positions: 5 Shielded: no Cable type: PUR POWER 0.75 mm² blackÃ[186] Conductor structure signal line: 42x 0.15 mm AWG signal line: 18 Conductor cross section: 5x 0.75 mm² (power line) Wire diameter incl. insulation: 1.7 mm ñ0.05 mm External cable diameter: 6.3 mm ñ0.2Ãmm Outer sheath, material: PUR External sheath, color: black-gray RAL 7021 Conductor material: Bare Cu litz wires Material wire insulation: PVC Single wire, color: brown, white, blue, black, gray Thickness, insulation: ââ°¥ 0.23 mm (Core insulation) ââ°¥ 0.76 mm (Outer cable sheath) Overall twist: 5 wires around filler to the core Max. conductor resistance: max. 26 é/km (at 20ðC) Insulation resistance: ââ°¥ 1 Mé*km (at 20ðC) Nominal voltage, cable: ââ°¤ 300 V Test voltage: ââ°¥ 3000 V Smallest bending radius, movable installation: 63 mm Max. bending cycles: 2000000 Flame resistance: in accordance with DIN UL-Style 20549 Resistance to oil: in accordance with DIN EN 60811-2-1 Ambient temperature (operation): -25°C ... 80°C (cable, fixed installation) -5°C ... 80°C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 IP68 Ambient temperature (operation): -25°C ... 90°C (Plug / socket) -25°C ... 80°C (cable, fixed installation) -5°C ... 80°C (Cable, flexible installation) |
