| Notes | General: NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.Ãby using cable ties. |
| Mounting | Assembly instructions: AWG 20 conductor cross section upon request Connection method: Insulation displacement connection |

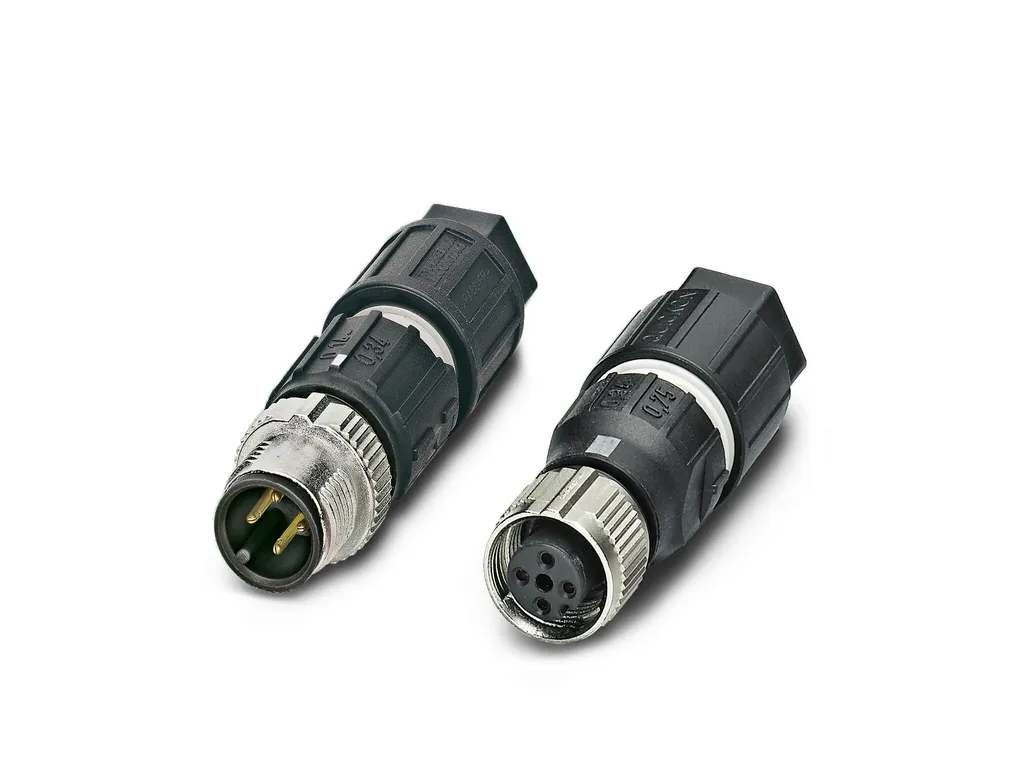

| Product properties | Product type: Circular connector (cable-side) Sensor type: Universal Number of positions: 4 No. of cable outlets: 1 Shielded: no Coding: A Cable outlet: straight Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/329501dd919ac14993b0c48e3a3a5c1b/-S204x204-FJPG Length: 54 mm Wrench size, union nut: 13 mm External dimensions Outside diameter: 3.5 mm ... 6 mm Housing Diameter housing: 16.3 mm |
| Material specifications | Flammability rating according to UL 94: V0 Seal material: NBR Material of grip body: PA 6 Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: TPU Material for screw connection: Zinc die-cast, nickel-plated Wire insulation material: PVC / PE / PP / rubber |
| Connection data | Conductor connection Connection method: Insulation displacement connection Connection cross section: 0.14 mm² ... 0.34 mm² Connection cross section AWG: 26 ... 22 Tightening torque: 0.4 Nm (M12 knurl) 1.2 Nm (Pressure nut) Pin assignment Contact | Color (signal designation) | Contact (optional): 1 = BN 2 = WH 3 = BU 4 = BK |
| Electrical properties | Rated surge voltage: 2.5 kV Contact resistance: ââ°¤ 5 mé Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 125 VÃAC 125 VÃDC Nominal current IN: 4 A |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 100 |
| Connector | Connection 1 Head design: Plug Head cable outlet: straight Head thread type: M12 Head locking type: SPEEDCON Coding: A |
| Cable/line | Signal type/category: Universal External cable diameter (): 3.5 mm ... 6 mm |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -25°C ... 80°C (Plug / socket) Ambient temperature (assembly): -5°C ... 50°C (During assembly) |
| Standards and regulations | Standard designation: M12 connector Standards/specifications: according to IEC 61076-2-101 |
