| Product properties | Product type: Sensor/actuator cable Number of positions: 4 Application: Standard No. of cable outlets: 1 Shielded: yes Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: HB Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: TPU GF Material for screw connection: Zinc die-cast, nickel-plated |
| Electrical properties | Contact resistance: ââ°¤ 5 mé Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 48 VÃAC 60 VÃDC Nominal current IN: 4 A Protective circuit: unwired |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 100 |
| Signaling | Status display: No Status display present: No |
| Connection data | Conductor connection Tightening torque: 0.2 Nm (M8 connectors) |

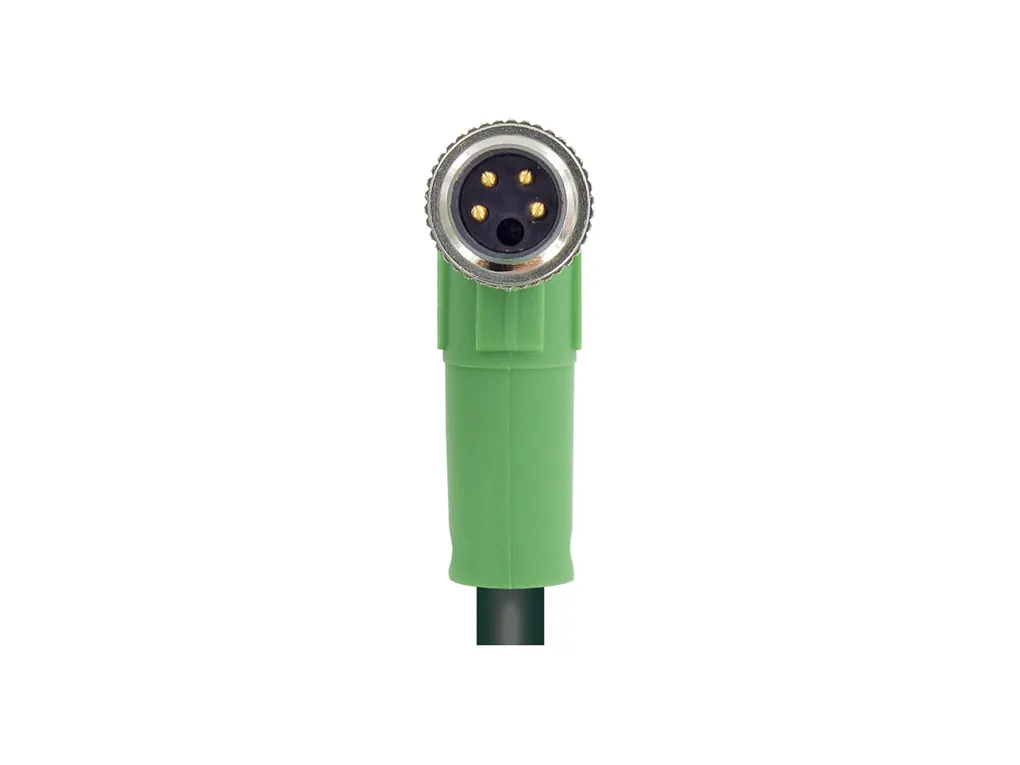

| Connector | Connection 1 Type: Plug angled M8 Number of positions: 4 Coding type: A Connection 2 Type: free cable end |
| Cable/line | Cable length: 1.5 m PUR halogen-free blackÃ[PUR] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/18bf5408eb73dc4094c36e4f31afd120/-S204x204-FJPG Cable weight: 31 kg/km UL AWM Style: 20549 Number of positions: 4 Shielded: yes Cable type: PUR halogen-free blackÃ[PUR] Conductor structure signal line: 32x 0.10 mm AWG signal line: 24 Conductor cross section: 4x 0.25 mm² (Signal line) Wire diameter incl. insulation: 1.17 mm ñ0.02Ãmm (Signal line) External cable diameter: 4.7 mm ñ0.15Ãmm Outer sheath, material: PUR External sheath, color: black-gray RAL 7021 Conductor material: Bare Cu litz wires Material wire insulation: PP Single wire, color: brown, white, blue, black Thickness, insulation: ââ°¥ 0.21 mm (Core insulation) approx. 0.5 mm (Outer cable sheath) Overall twist: 4 wires, twisted Optical shield covering: 80 % Max. conductor resistance: max. 78 é/km (at 20ðC) Insulation resistance: ââ°¥ 100 Gé*km (at 20ðC) Nominal voltage, cable: ââ°¤ 300 V Test voltage: ââ°¥ 3000 V Smallest bending radius, fixed installation: 24 mm Smallest bending radius, movable installation: 48 mm Max. bending cycles: 10000000 Halogen-free: in accordance with DINÃVDEÃ0472 partÃ815 Flame resistance: in accordance with ULÃ758/1581 FT2 DINÃENÃ60332-2-2 (20Ãs) Resistance to oil: in accordance with DINÃENÃ60811-2-1 Other resistance: Highly resistant to acids, alkaline solutions and solvents hydrolysis and microbe resistant partly UV-resistant in accordance with DINÃENÃISOÃ4892-2-A Special properties: Flexible cable conduit capable Silicone-free Free of substances which would hinder coating with paint or varnish Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation) -25°C ... 80°C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -25°C ... 90°C (Plug / socket) -25°C ... 80°C (cable, fixed installation) -5°C ... 80°C (Cable, flexible installation) |
| Standards and regulations | Standard designation: M8 connector Standards/specifications: IEC 61076-2-104 |
