| Product properties | Product type: Sensor/actuator cable Number of positions: 8 Application: Standard No. of cable outlets: 1 Shielded: yes Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: HB Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuZn Contact surface material: Ni/Au Contact carrier material: TPU GF Material for screw connection: Zinc die-cast, nickel-plated |
| Electrical properties | Contact resistance: ââ°¤ 5 mé Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 30 VÃAC 30 VÃDC Nominal current IN: 2 A Protective circuit: unwired |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 100 |
| Signaling | Status display: No Status display present: No |
| Connection data | Conductor connection Tightening torque: 0.4 Nm (M12 connector) |

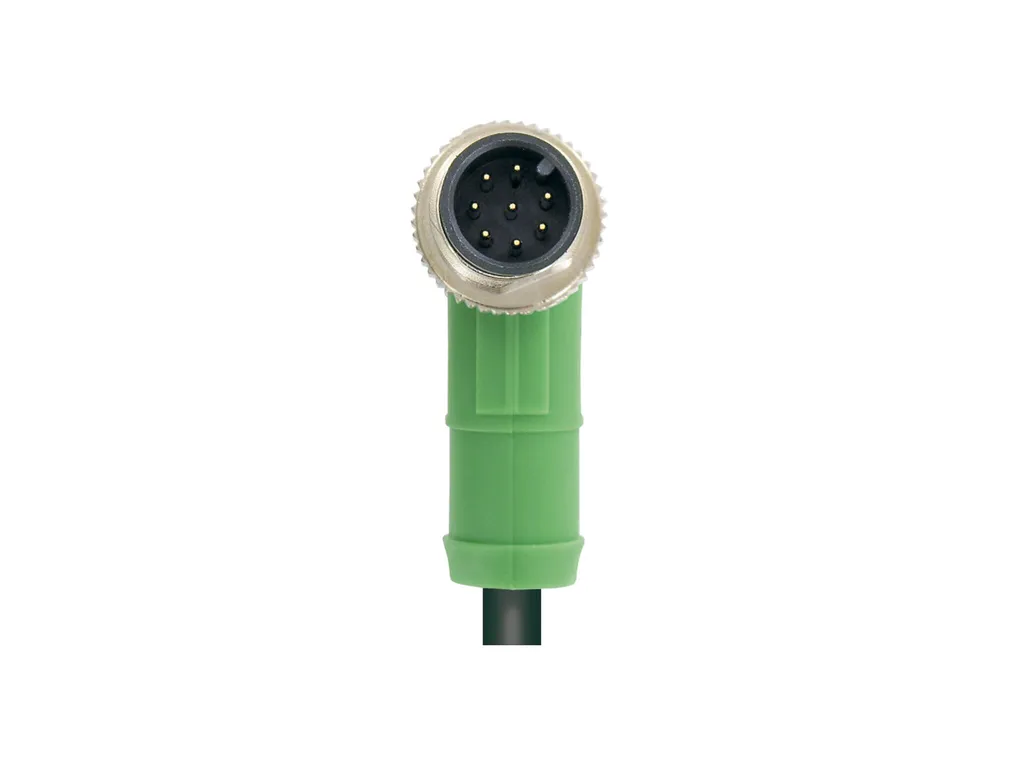

| Connector | Connection 1 Type: Plug angled M12 Number of positions: 8 Coding type: A Connection 2 Type: free cable end |
| Cable/line | Cable length: 10 m PUR halogen-free blackÃ[PUR] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/3f57b5317f5d4b4fb418a4409e500605/-S204x204-FJPG Cable weight: 53 kg/km UL AWM Style: 20549 / 10493 (80°C/300 V) Number of positions: 8 Shielded: yes Cable type: PUR halogen-free blackÃ[PUR] Conductor structure signal line: 32x 0.10 mm AWG signal line: 24 Conductor cross section: 8x 0.25 mm² (Signal line) Wire diameter incl. insulation: 1.17 mm ñ0.02Ãmm External cable diameter: 5.9 mm ñ0.2Ãmm Outer sheath, material: PUR External sheath, color: black-gray RAL 7021 Conductor material: Bare Cu litz wires Material wire insulation: PP Single wire, color: brown, white, green, yellow, gray, pink, blue, red Thickness, insulation: approx. 0.2 mm Thickness, outer sheath: approx. 0.5 mm Overall twist: 8 wires around filler to the core Optical shield covering: 85 % Max. conductor resistance: ââ°¤ 78 é/km (at 20ðC) Insulation resistance: ââ°¥ 1 Gé*km (at 20ðC) Nominal voltage, cable: ââ°¤ 300 VÃAC Test voltage: ââ°¥ 3000 VÃAC (Spark test) Test voltage Core/Shield: ââ°¥ 2000 VÃAC (for 60 s) Minimum bending radius, fixed installation: 5 x D Minimum bending radius, flexible installation: 10 x D Max. bending cycles: 2000000 Halogen-free: in accordance with DINÃVDEÃ0472 partÃ815 according to IEC 60754-1 Flame resistance: in acc. with UL FT-2 according to ULÃ758/1581 (horizontal) in accordance with ULÃ758/1581 FT2 According to DIN ENÃ60332-2-2 (20 s) Resistance to oil: in accordance with IEC 60811-404 Other resistance: hydrolysis and microbe resistant Resistant to salt water low-abrasion partly UV-resistant in accordance with DINÃENÃISOÃ4892-2-A Special properties: Flexible cable conduit capable Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation) -25°C ... 80°C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -25°C ... 90°C (Plug / socket) -25°C ... 80°C (cable, fixed installation) -5°C ... 80°C (Cable, flexible installation) |
| Standards and regulations | Standard designation: M12 connector Standards/specifications: IEC 61076-2-101 |
