| Notes | General: with center distance of 18 mm, suitable for molded connectors and unshielded connectors that can be assembled with QUICKON IDC terminal block connection technology and a connection range of 0.14 mm² to 0.34 mm² |
| Product properties | Product type: Y-distributor Number of positions: 4 No. of cable outlets: 2 Shielded: no Coding: A Thread type: M12 Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Electrical properties | Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 48 VÃAC 60 VÃDC Nominal current IN: 4 A |
| Signaling | Status display: No Status display present: No |

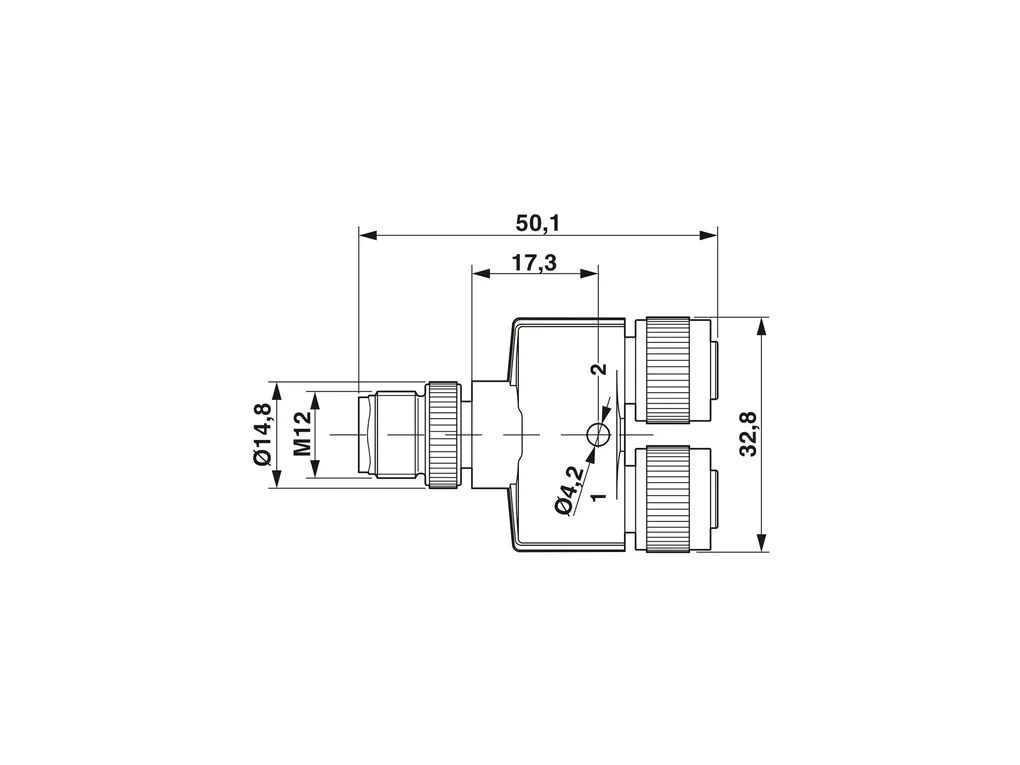

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/81675af53f383a4c860b7f74f55d8ea2/-S204x204-FJPG Width: 33 mm Height: 14.8 mm Length: 50.1 mm Center distance: 18 mm |
| Material specifications | Flammability rating according to UL 94: HB Seal material: NBR Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuZn Contact surface material: Ni/Au Contact carrier material: TPU GF Material for screw connection: Zinc die-cast, nickel-plated |
| Connector | Connection 1 Type: Plug straight M12 SPEEDCON Coding type: A Locking type: SPEEDCON Connection 2 Type: Socket straight M12 SPEEDCON Coding type: A Locking type: SPEEDCON |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 100 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -25°C ... 90°C (Plug / socket) |
| Standards and regulations | Standard designation: M12 connector Standards/specifications: IEC 61076-2-101 |
