1527605 PHOENIX CONTACT -

Product properties	Product type: Sensor/actuator cable Number of positions: 4 No. of cable outlets: 1 Shielded: no Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3
Material specifications	Flammability rating according to UL 94: HB Seal material: NBR Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: TPU GF Material for screw connection: Zinc die-cast, nickel-plated
Electrical properties	Contact resistance: Ã¢Ã¢°¤ 5 mÃ© Insulation resistance: Ã¢Ã¢°¥ 100 MÃ© Nominal voltage U_N: 250 VÃAC 250 VÃDC Nominal current I_N: 4 A
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢Ã¢°¥ 100
Signaling	Status display: No Status display present: No
Connection data	Conductor connection Tightening torque: 0.4 Nm
Connector	Connection 1 Type: free cable end Connection 2 Type: Socket straight M12 Number of positions: 4 Coding type: A

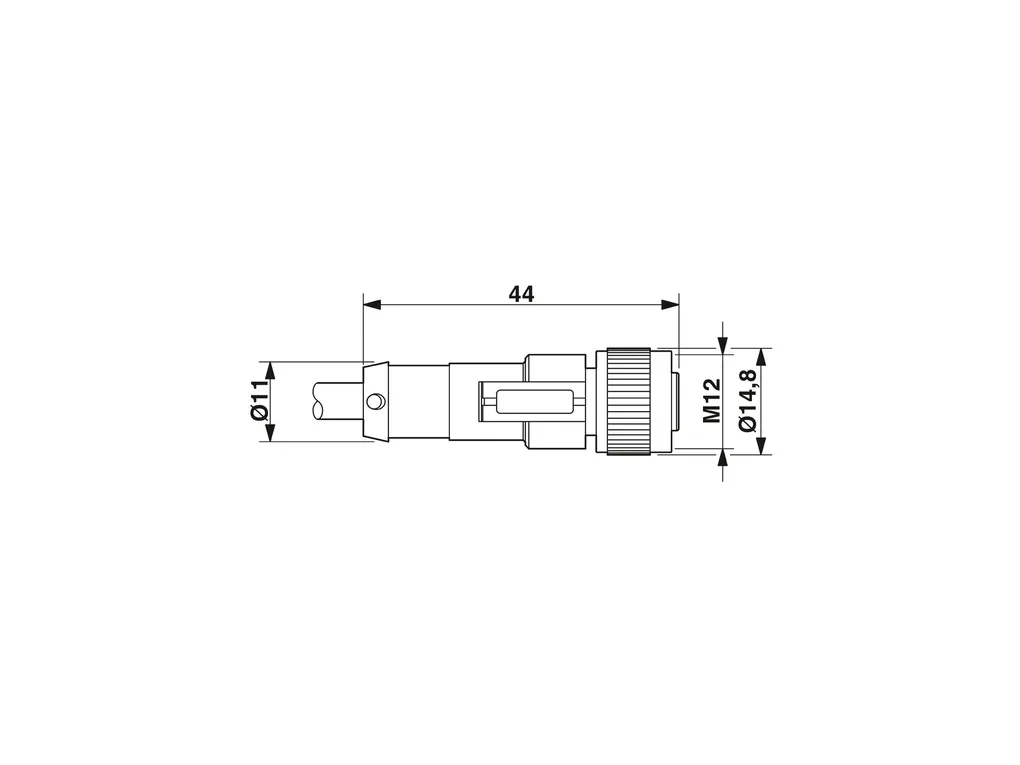

Cable/line	Cable length: 30 m PUR POWER 0.75 mm² blackÃ[186] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/cef4f47a5a2a8c44a5e0d91410fb2594/-S204x204-FJPG Cable weight: 57 kg/km UL AWM Style: 20549 / 1061 (80°C/300 V) Number of positions: 4 Shielded: no Cable type: PUR POWER 0.75 mm² blackÃ[186] Conductor structure signal line: 42x 0.15 mm AWG signal line: 18 Conductor cross section: 4x 0.75 mm² (power line) Wire diameter incl. insulation: 1.75 mm Ã±0.05 mm External cable diameter: 5.9 mm Ã±0.15Ãmm Outer sheath, material: PUR External sheath, color: black-gray RAL 7021 Conductor material: Bare Cu litz wires Material wire insulation: PVC Single wire, color: brown, white, blue, black Thickness, insulation: Ã¢Ã¢°¥ 0.23 mm (Core insulation) Ã¢Ã¢°¥ 0.76 mm (Outer cable sheath) Overall twist: 4 wires, twisted Max. conductor resistance: max. 26 Ã©/km (at 20Ã°C) Insulation resistance: Ã¢Ã¢°¥ 1 MÃ©*km (at 20Ã°C) Nominal voltage, cable: Ã¢Ã¢°¤ 300 V Test voltage: Ã¢Ã¢°¥ 3000 V Minimum bending radius, fixed installation: 5 x D Minimum bending radius, flexible installation: 10 x D Smallest bending radius, movable installation: 59 mm Max. bending cycles: 2000000 Flame resistance: according to ULÃ758/1581 (horizontal) in accordance with ULÃ758/1581 FT2 Resistance to oil: According to DIN EN 60811-2-1, 168 h at 100°C Other resistance: hydrolysis and microbe resistant Low adhesion abrasion-resistant Resistant to salt water Ambient temperature (operation): -25°C ... 80°C (cable, fixed installation) -5°C ... 80°C (Cable, flexible installation)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65 IP67 IP68 Ambient temperature (operation): -25°C ... 90°C (Plug / socket) -25°C ... 80°C (cable, fixed installation) -5°C ... 80°C (Cable, flexible installation)
