| Product properties | Product type: Sensor/actuator cable Application: Standard Number of positions: 5 No. of cable outlets: 1 Shielded: yes Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: HB Seal material: NBR Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: TPU GF Material for screw connection: Zinc die-cast, nickel-plated |
| Electrical properties | Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 48 V AC 60 V DC Nominal current IN: 4 A |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 100 |
| Signaling | Status display: no Status display present: No |
| Connector | Connection 1 Type: free cable end Connection 2 Type: Socket straight M12 Number of positions: 5 Coding type: A |

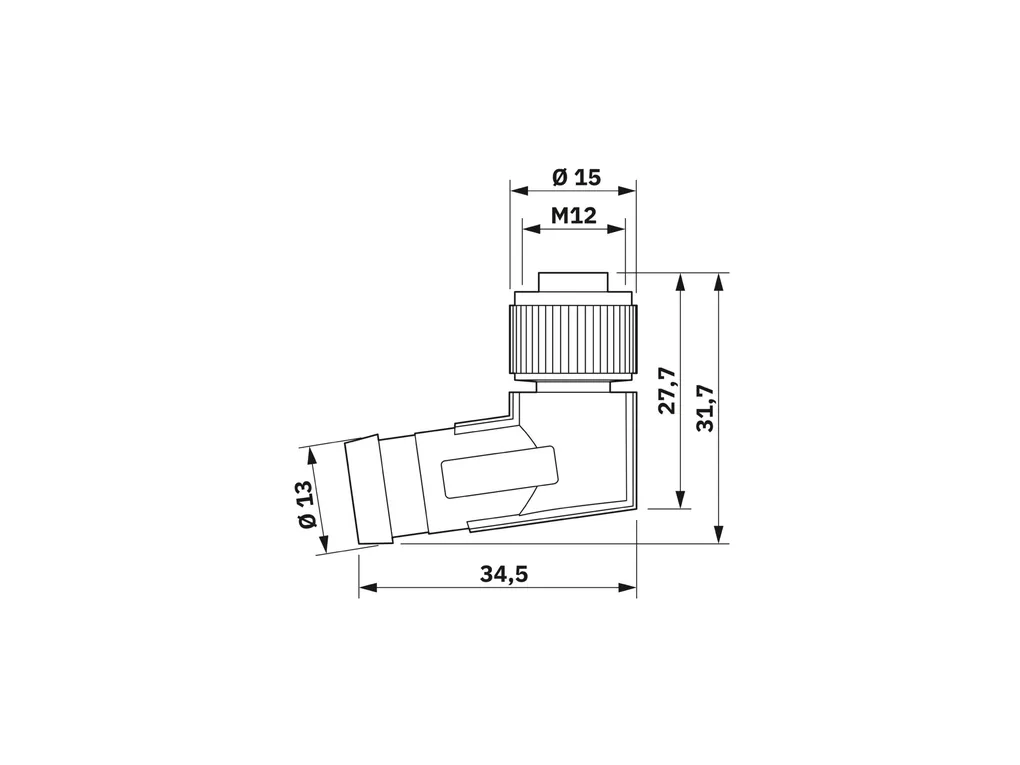

| Cable/line | Cable length: 20 m PVC black [PVC] Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/9072/full/b1500?format=jpg Cable weight: 55 kg/km Number of positions: 5 Shielded: yes Cable type: PVC black [PVC] Conductor structure signal line: 42x 0.10 mm AWG signal line: 22 Conductor cross section: 5x 0.34 mm² (Signal line) Wire diameter incl. insulation: 1.35 mm ñ0.02 mm External cable diameter: 5.90 mm ñ0.2 mm Outer sheath, material: PVC External sheath, color: black RAL 9005 Conductor material: Bare Cu litz wires Material, filler: PVC Material wire insulation: PVC Single wire, color: brown, white, blue, black, gray Thickness, insulation: ââ°¥ 0.23 mm (Core insulation) ââ°¥ 0.76 mm (Outer cable sheath) Overall twist: 5 wires around filler to the core Optical shield covering: 85 % Max. conductor resistance: ââ°¤ 58 é/km (at 20 °C) Insulation resistance: ââ°¥ 10 Mé*km (at 20 °C) Nominal voltage, cable: ââ°¤ 300 V Test voltage: ââ°¥ 3000 V Minimum bending radius, fixed installation: 5 x D Minimum bending radius, flexible installation: 10 x D Smallest bending radius, fixed installation: 30 mm Smallest bending radius, movable installation: 59 mm Flame resistance: As per UL-Style 2464 Resistance to oil: in accordance with DIN EN 60811-2-1 Ambient temperature (operation): -25 °C ... 80 °C (cable, fixed installation) -5 °C ... 80 °C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -25 °C ... 90 °C (Plug / socket) -25 °C ... 80 °C (cable, fixed installation) -5 °C ... 80 °C (Cable, flexible installation) |
