| Notes | General: NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.Ãby using cable ties. |
| Mounting | Connection method: Screw connection |
| Product properties | Product type: Valve connectors Sensor type: Universal Number of positions: 3 No. of cable outlets: 1 Shielded: no Pg screw connection: Pg9 Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: HB Seal material: NBR Material housing valve plug: PA 6 Contact material: CuSn Valve plug contact insert material: PA 6 Contact surface material: Ni |

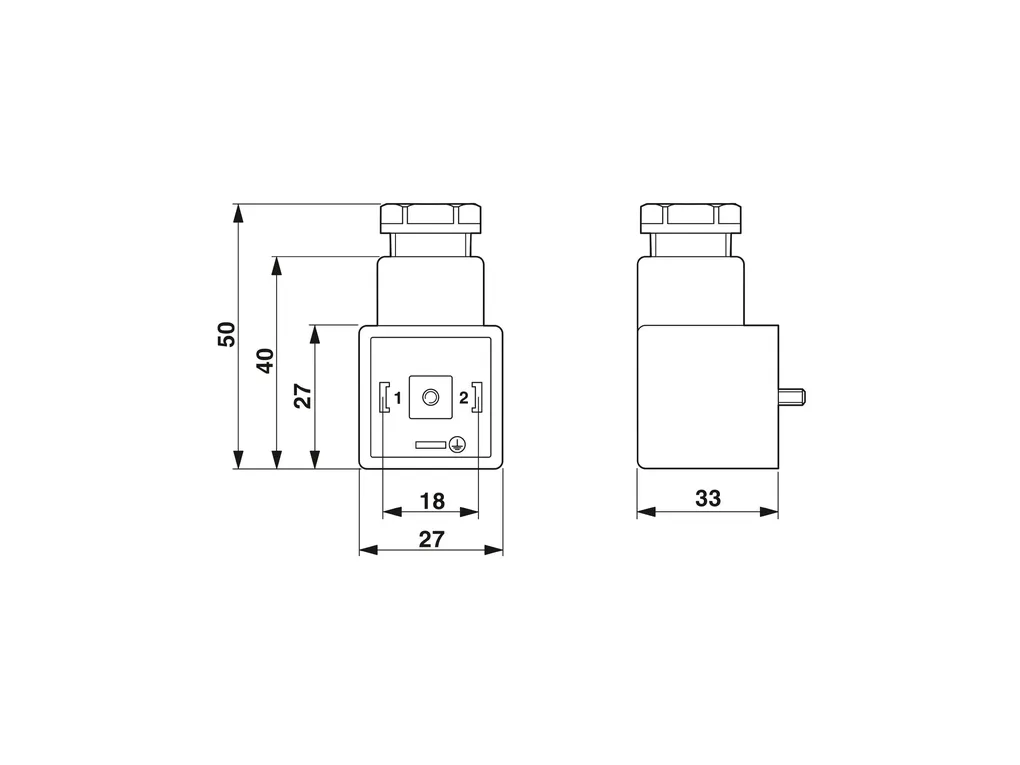

| Dimensions | External dimensions Outside diameter: 6 mm ... 8 mm |
| Electrical properties | Contact resistance: ââ°¤ 15 mé Insulation resistance: > 100 Mé Nominal voltage UN: 24 VÃAC 24 VÃDC Nominal current IN: 2 A Protective circuit: Surge protection; Varistor and rectifier |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: 50 (Valve connector) |
| Signaling | Status display: 1 LED Status display present: Yes |
| Connection data | Connection method: Screw connection Conductor cross section: 0.34 mm² ... 1.5 mm² Connection cross section AWG: 22 ... 16 |
| Connector | Connection 1 Head design: Valve connector Head thread type: A |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 Ambient temperature (operation): -25°C ... 85°C (valve plug) |
