| Notes | General: NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.Ãby using cable ties. |
| Mounting | Connection method: Screw connection |
| Product properties | Product type: Circular connector (cable-side) Number of positions: 5 No. of cable outlets: 1 Shielded: no Coding: B Cable outlet: straight Pg screw connection: Pg9 Insulation characteristics Overvoltage category: II Degree of pollution: 3 |

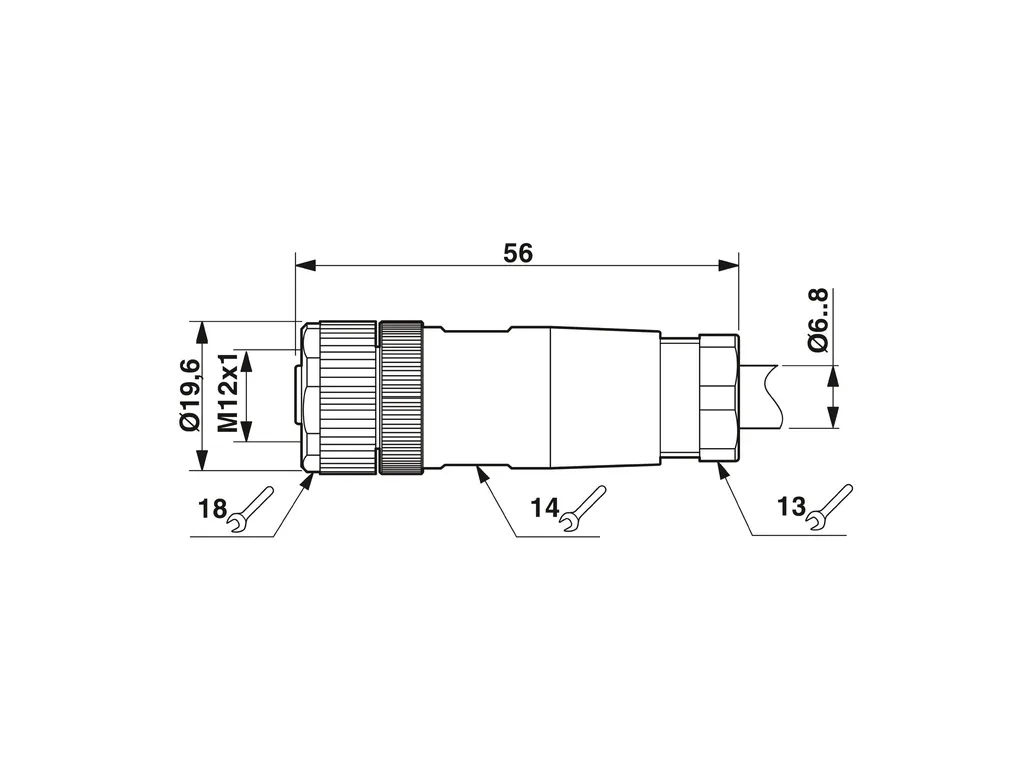

| Dimensions | External dimensions Outside diameter: 6 mm ... 8 mm |
| Material specifications | Flammability rating according to UL 94: HB Seal material: NBR Material of grip body: PA Contact material: CuZn Contact surface material: CuSnZn Contact carrier material: PA Material for screw connection: Plastic |
| Connection data | Conductor connection Connection method: Screw connection Connection cross section: 0.25 mm² ... 0.75 mm² Connection cross section AWG: 24 ... 18 Stripping length of the individual wire: 5 mm Tightening torque: 0.4 Nm (M12 knurl) 0.2 Nm (Screw terminal blocks) 0.8 Nm ... 1 Nm (Pressure screw with sleeve housing) |
| Electrical properties | Contact resistance: ââ°¤ 8 mé Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 60 VÃDC 48 VÃAC Nominal current IN: 4 A |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 50 |
| Connector | Connection 1 Head design: Socket Head cable outlet: straight Head thread type: M12 Coding: B |
| Cable/line | Stripping length of the individual wire: 5 mm |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -40°C ... 85°C (Plug / socket) |
| Standards and regulations | Standard designation: M12 connector Standards/specifications: IEC 61076-2-101 |
