1543621 PHOENIX CONTACT -

Product properties	Product type: Sensor/actuator cable Number of positions: 4 Shielded: no Insulation characteristics Overvoltage category: II Degree of pollution: 3
Material specifications	Seal material: NBR Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: TPU GF Material for screw connection: Zinc die-cast, nickel-plated
Electrical properties	Nominal voltage U_N: 250 VÃAC 250 VÃDC Nominal current I_N: 4 A
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢Ã¢°¥ 100
Connection data	Conductor connection Tightening torque: 0.4 Nm
Connector	Connection 1 Type: free cable end Connection 2 Type: Socket angled M12 Number of positions: 4

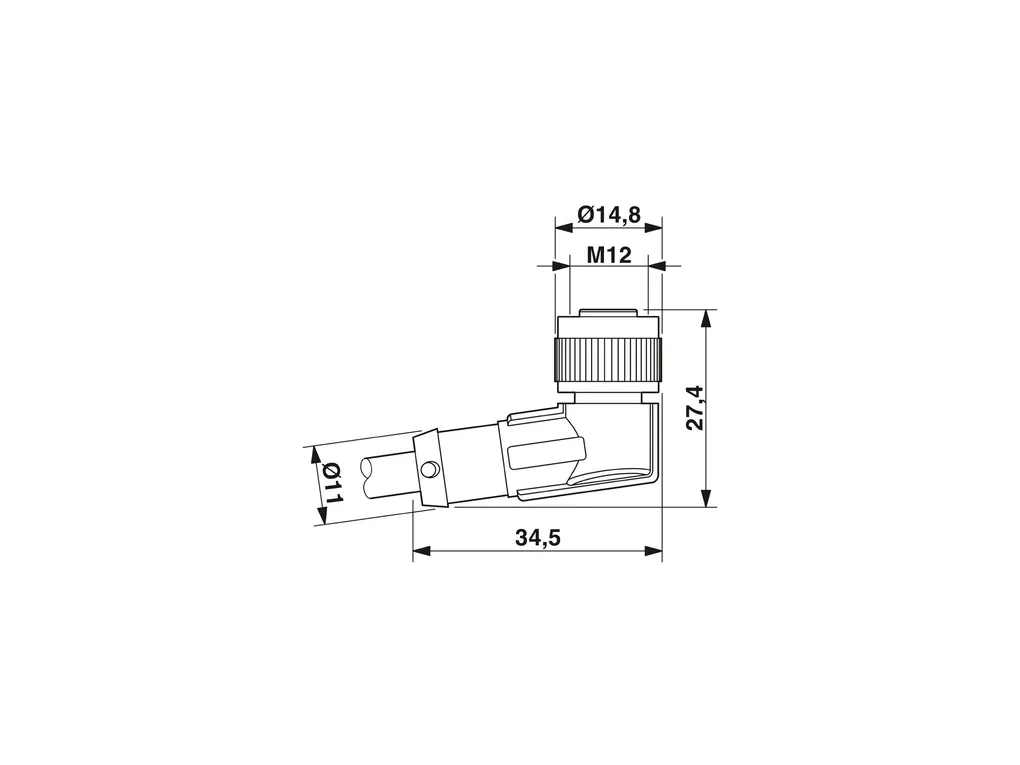

Cable/line	Cable length: 5 m PUR halogen-free yellowÃ[240] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/e44bed04e8c9d64bab4de745b4f0aadb/-S204x204-FJPG Cable weight: 30 kg/km Number of positions: 4 Shielded: no Cable type: PUR halogen-free yellowÃ[240] Conductor structure signal line: 42x 0.10 mm AWG signal line: 22 Conductor cross section: 4x 0.34 mm² Wire diameter incl. insulation: 1.27 mm Ã±0.02Ãmm External cable diameter: 4.7 mm Ã±0.15Ãmm Outer sheath, material: PUR External sheath, color: yellow Conductor material: Bare Cu litz wires Material wire insulation: PP Single wire, color: brown, white, blue, black Thickness, insulation: Ã¢Ã¢°¥ 0.21 mm (Core insulation) approx. 0.8 mm (Outer cable sheath) Overall twist: 4 wires, twisted Length of twist, overall twist: 49.5 mm Max. conductor resistance: max. 58 Ã©/km (at 20Ã°C) Insulation resistance: Ã¢Ã¢°¥ 1 GÃ©*km (at 20Ã°C) Nominal voltage, cable: Ã¢Ã¢°¤ 300 V Test voltage: Ã¢Ã¢°¥ 3000 V Smallest bending radius, fixed installation: 23.5 mm Smallest bending radius, movable installation: 47 mm Max. bending cycles: 4000000 Halogen-free: in accordance with DINÃVDEÃ0472 partÃ815 in accordance with DINÃENÃ50267-2-1 Flame resistance: in accordance with DIN UL-Style 20549 in accordance with FT1 as per ULÃ758 Resistance to oil: in accordance with DINÃENÃ60811-2-1 Other resistance: Highly resistant to acids, alkaline solutions and solvents hydrolysis and microbe resistant Special properties: Flexible cable conduit capable Silicone-free Free of substances which would hinder coating with paint or varnish Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation) -25°C ... 80°C (Cable, flexible installation)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -25°C ... 90°C (Plug / socket) -40°C ... 80°C (cable, fixed installation) -5°C ... 80°C (Cable, flexible installation)
