| Product properties | Product type: Data cable preassembled Sensor type: INTERBUS Number of positions: 4 Application: Standard No. of cable outlets: 1 Shielded: yes Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Interfaces | Bus system: INTERBUS Signal type/category: INTERBUS |
| Signaling | Status display: No Status display present: No |
| Electrical properties | Contact resistance: ââ°¤ 5 mé Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 48 VÃAC 60 VÃDC Nominal current IN: 4 A Test voltage: 800 V Transmission medium: Copper |
| Material specifications | Flammability rating according to UL 94: HB Seal material: NBR Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: TPU GF Material for screw connection: Zinc die-cast, nickel-plated |

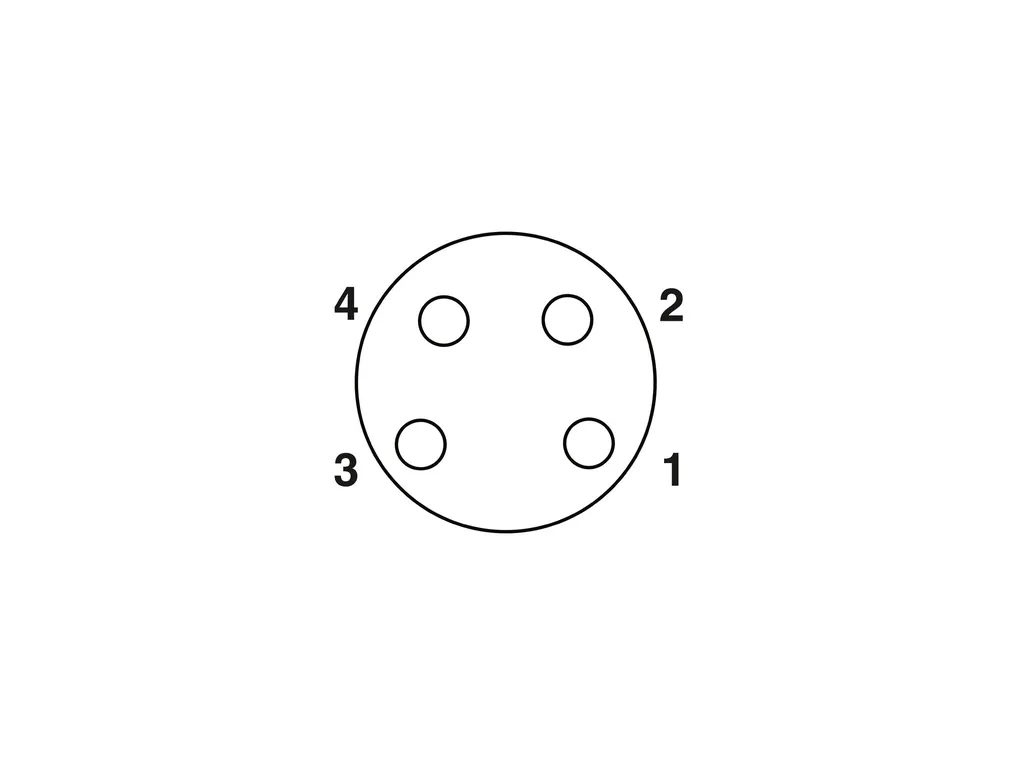

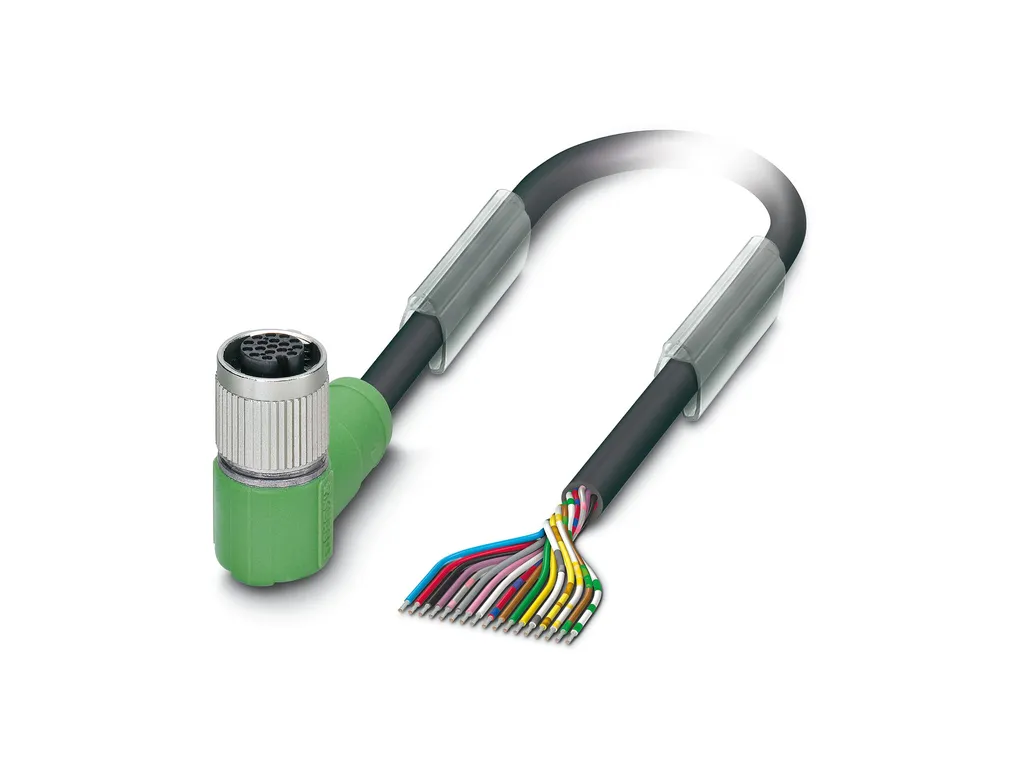

| Connection data | Pin assignment Contact | Color (signal designation) | Contact (optional): 1 (Socket) | RD (0.34Ãmm²) 3 (Socket) | BU (0.34Ãmm²) 2 (Socket) | YE (0.14Ãmm²) 4 (Socket) | GN (0.14Ãmm²) |
| Connector | Connection 1 Type: free cable end Connection 2 Type: Socket angled M8 Number of positions: 4 Coding type: A (Standard) |
| Cable/line | Cable length: 2 m INTERBUSÃ[950] Cable weight: 41 kg/km UL AWM Style: 20963 (80°C/30 V) Number of positions: 4 Shielded: yes Cable type: INTERBUSÃ[950] Conductor structure: 2xAWG26/19+2xAWG22/19 Conductor structure signal line: 19x 0.10 mm AWG signal line: 26 Conductor cross section: 2x 0.14 mm² (Signal line) 2x 0.34 mm² (Power supply) 1x 0.38 mm² (Drain wire) Wire diameter incl. insulation: 0.97 mm (Signal line) 1.25 mm (Power supply) External cable diameter: 5.2 mm ñ0.2Ãmm Outer sheath, material: PUR External sheath, color: black RALÃ9005 Conductor material: Tin-plated Cu litz wires Material wire insulation: PP Single wire, color: red-blue, green-yellow Thickness, insulation: 0.24 mm (Conductor insulation, signal line) 0.25 mm (Conductor insulation, voltage supply) Thickness, outer sheath: approx. 0.75 mm Twisted pairs: 2 cores to the pair Type of pair shielding: Aluminum-lined polyester foil Overall twist: 2 pairs around a drain wire in the center to the core Optical shield covering: 85 % Max. conductor resistance: ââ°¤ 150 é/km (Signal line) ââ°¤ 58 é/km (Power supply) Insulation resistance: ââ°¥ 20 Mé*km Wave impedance: 75 é ñ10 é (Signal line) 55 é ñ10 é (Power supply) Nominal voltage, cable: ââ°¤ 100 V Test voltage Core/Core: 1000 V (50ÃHz, 1Ãmin.) Test voltage Core/Shield: 1000 V (50ÃHz, 1Ãmin.) Minimum bending radius, fixed installation: 5 x D Minimum bending radius, flexible installation: 7.5 x D Max. bending cycles: 1000000 Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation) -40°C ... 80°C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -25°C ... 90°C (Plug / socket) |
