1553587 PHOENIX CONTACT -

SAC-4P-M12MS/28,0-28X SH OD - Sensor/actuator cable

Sensor/actuator cable, 4-position, Plug straight M12, on free cable end, cable length: 28 m, for outdoor applications, with high-grade steel knurl

Cod. Articolo: 1553587 copia - copy

Cod. Fornitore: 1553587 copia - copy

PHOENIX CONTACT

Product properties	Product type: Sensor/actuator cable Application: External areas Number of positions: 4 No. of cable outlets: 1 Shielded: yes Coding: A Insulation characteristics Degree of pollution: 3
Material specifications	Flammability rating according to UL 94: V0 Seal material: FPM Material of grip body: PP Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: PP Material for screw connection: Stainless steel
Electrical properties	Insulation resistance: Ã¢Ã¢°¥ 100 MÃ© Nominal voltage U_N: 48 V AC 60 V DC Nominal current I_N: 4 A
Signaling	Status display: no Status display present: No
Connector	Connection 1 Type: Plug straight M12 Connection 2 Type: free cable end

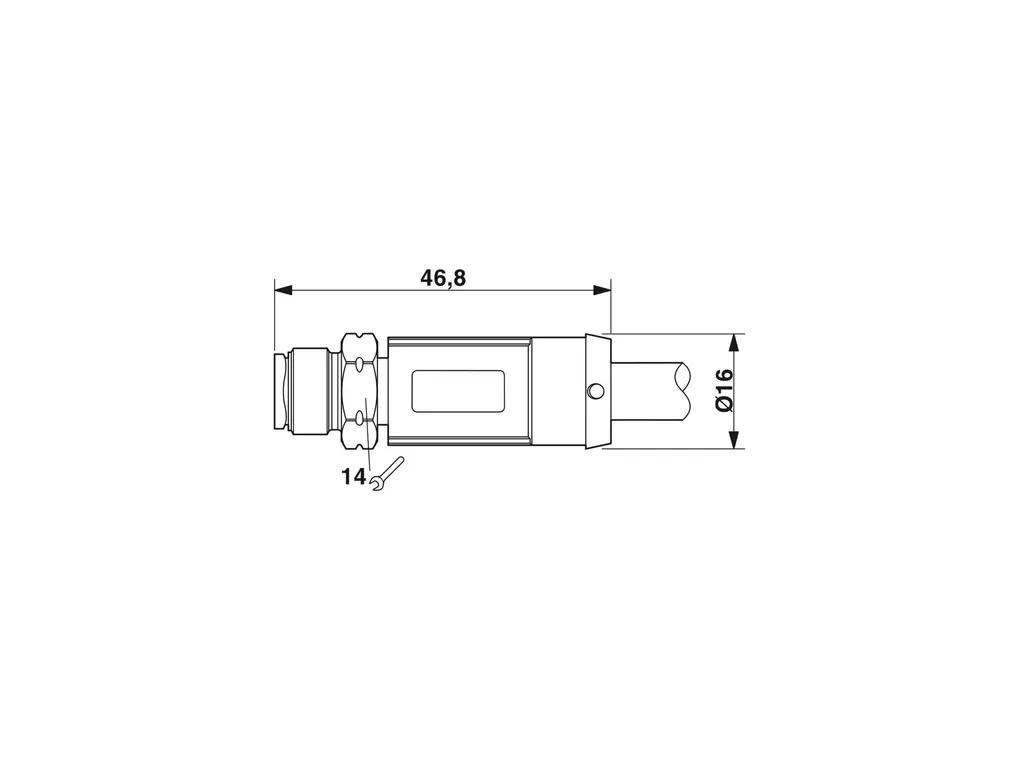

Cable/line	Cable length: 28 m PE-X black [28X] Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/9016/full/b1500?format=jpg Shielded: yes Cable weight: 74 kg/km Cable type: PE-X black Short symbol: Li2X2X-C-Vl-2X Cable type (abbreviation): 28X External cable diameter: 6.80 mm Ã±0.2 mm Outer sheath, material: PE-X External sheath, color: black-gray RAL 7021 Material, inner sheath: PE-X Conductor material: Bare Cu litz wires Conductor structure signal line: 28x 0.15 mm AWG signal line: 20 Conductor cross section: 4x 0.5 mm² (Signal line) Material wire insulation: PE-X Thickness, insulation: approx. 0.30 mm (Core insulation) Wire diameter incl. insulation: 1.6 mm Ã±0.05 mm (Signal line) Single wire, color: brown, white, blue, black Overall twist: 4 wires, twisted Length of twist, overall twist: 108.8 mm Shielding: Braided copper wires Optical shield covering: 85 % Nominal voltage, cable: Ã¢Ã¢°¤ 300 V AC Test voltage, cable: Ã¢Ã¢°¥ 3000 V AC Cable resistance: Ã¢Ã¢°¤ 39 Ã©/km (at 20 °C) Cable insulation resistance: Ã¢Ã¢°¥ 100 MÃ©*km (at 20 °C) Cable capacity: Ã¢Ã¢°¤ 100 nF/km (Conductor-conductor, asymmetrical/touching) Ã¢Ã¢°¤ 85 nF/km (Conductor-conductor, symmetrical/star quad) Ã¢Ã¢°¤ 150 nF/km (Wire/shield) Conductor inductance: 0.64 mH/km (at 1 kHz) 0.46 mH/km (at 10 MHz) Smallest bending radius, fixed installation: 34 mm Smallest bending radius, movable installation: 68 mm Number of bending cycles: 1000000 Bending radius: 68 mm Traversing path: 10 m Traversing rate: 3 m/s Acceleration: 10 m/s² Halogen-free: in accordance with DIN VDE 0472 part 815 Resistance to oil: in accordance with DIN EN 60811-2-1 Flame resistance: according to DIN 60332-1-2 according to DIN EN 50266-2-5 Other resistance: UV resistant (according to DIN VDE 0276-605) Special properties: Irradiated Ambient temperature (operation): -15 °C ... 105 °C (Cable, flexible installation) -40 °C ... 105 °C (cable, fixed installation)
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -40 °C ... 105 °C (Plug / socket) -40 °C ... 85 °C (On sudden changes in temperature (according to IEC 60512-11-4))
Standards and regulations	M12 Standard designation: M12 connector Standards/specifications: IEC 61076-2-101
