| Notes | General: NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.Ãby using cable ties. |
| Mounting | Connection method: Insulation displacement connection |
| Product properties | Product type: Circular connector (cable-side) Sensor type: Ethernet Number of positions: 8 Application: Data No. of cable outlets: 1 Shielded: yes Coding: A Cable outlet: straight Insulation characteristics Overvoltage category: II Degree of pollution: 3 |

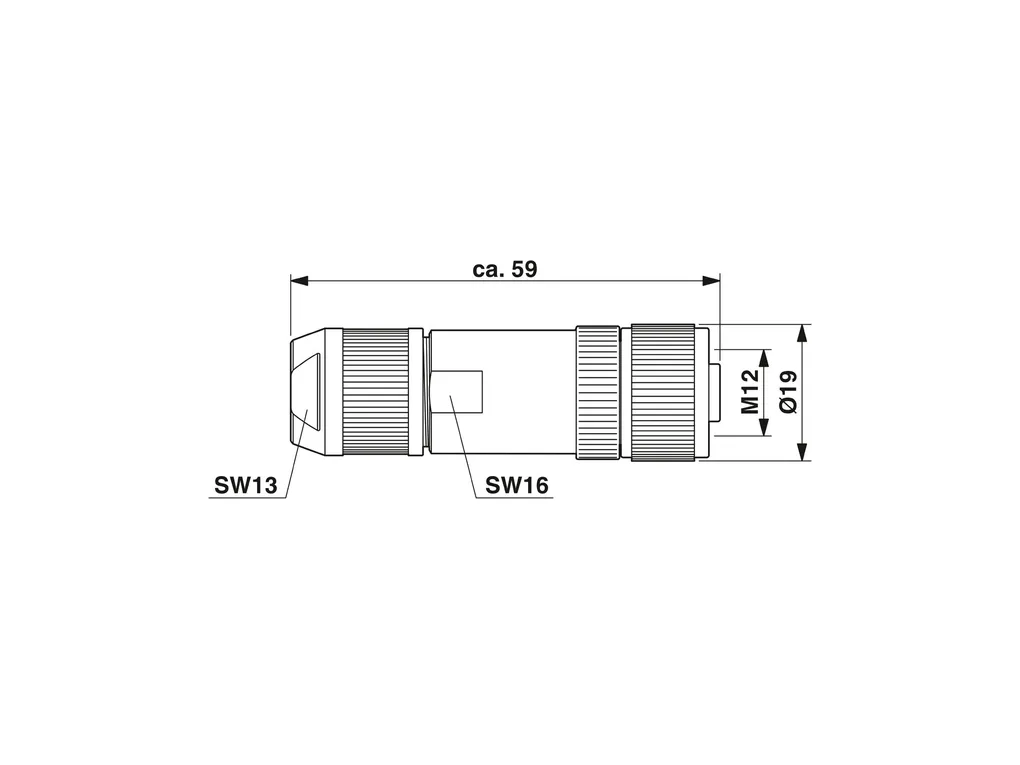

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/8b3f1e95aec1c54d847c1ca15607c3e8/-S204x204-FJPG Length: 59 mm External dimensions Outside diameter: 4 mm ... 8 mm Housing Diameter housing: 19 mm |
| Material specifications | Flammability rating according to UL 94: V0 Seal material: Neoprene Material of grip body: Zinc die-cast, nickel-plated Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: PA 6 Material for screw connection: Brass, nickel-plated |
| Connection data | Conductor connection Connection method: Insulation displacement connection Connection cross section: 0.14 mm² ... 0.34 mm² Connection cross section AWG: 26 ... 22 Tightening torque: 0.4 Nm (M12 knurl) 0.8 Nm (Connector with coupling sleeve) 3 Nm (Pressure nut with coupling sleeve) |
| Electrical properties | Rated surge voltage: 0.8 kV Contact resistance: ââ°¤ 5 mé Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 30 VÃAC 30 VÃDC Nominal current IN: 2 A |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 100 |
| Connector | Connection 1 Head design: Socket Head cable outlet: straight Head thread type: M12 Coding: A |
| Cable/line | Signal type/category: Ethernet CAT5 (based on IEC 11801), 1 Gbps |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -40°C ... 85°C (Plug / socket) Ambient temperature (assembly): -5°C ... 50°C |
| Standards and regulations | M12 Standard designation: M12 connector Standards/specifications: according to IEC 61076-2-101 |
