1555334 PHOENIX CONTACT -

Product properties	Product type: Sensor/actuator cable Number of positions: 17 Application: Standard No. of cable outlets: 1 Shielded: no Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3
Material specifications	Flammability rating according to UL 94: HB Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuZn Contact surface material: Ni/Au Contact carrier material: TPU GF Material for screw connection: Zinc die-cast, nickel-plated
Electrical properties	Contact resistance: Ã¢Ã¢°¤ 5 mÃ© Insulation resistance: Ã¢Ã¢°¥ 100 MÃ© Nominal voltage U_N: 30 VÃAC 30 VÃDC Nominal current I_N: 1.5 A Protective circuit: unwired
Signaling	Status display: No Status display present: No
Connection data	Conductor connection Tightening torque: 0.4 Nm (M12 connector)

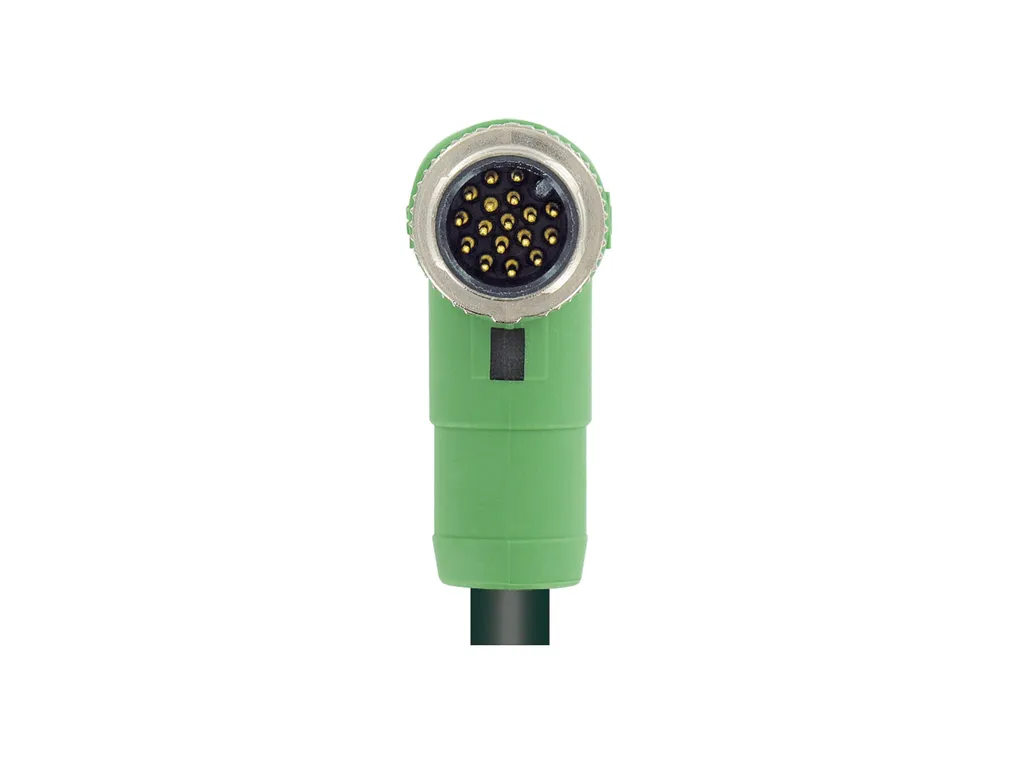

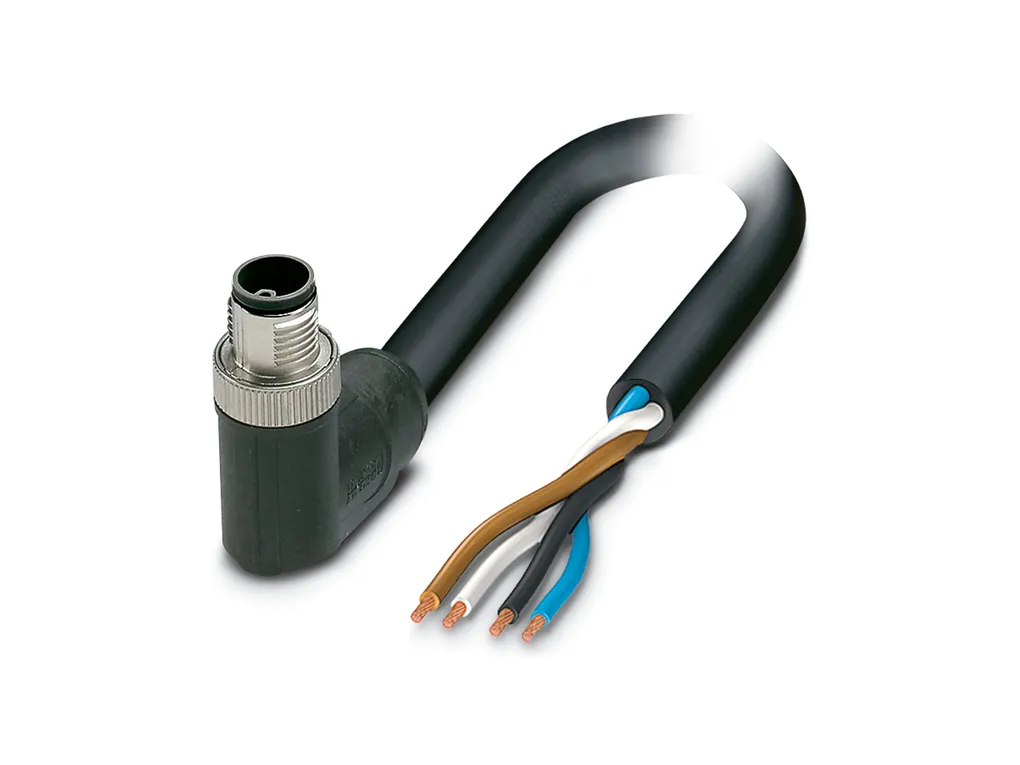

Connector	Connection 1 Type: Plug angled M12 SPEEDCON Number of positions: 17 Coding type: A Locking type: SPEEDCON Connection 2 Type: free cable end
Cable/line	Cable length: 10 m PVC blackÃ[PVC] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/55f1f802340ca44fb6a968e2c328046d/-S204x204-FJPG Number of positions: 17 Shielded: no Cable type: PVC blackÃ[PVC] Conductor structure signal line: 18x 0.10 mm AWG signal line: 26 Conductor cross section: 17x 0.14 mm² (Signal line) Wire diameter incl. insulation: 1 mm Ã±0.05 mm (Signal line) External cable diameter: 6.8 mm Outer sheath, material: PVC External sheath, color: black RALÃ9005 Conductor material: Bare Cu litz wires Material wire insulation: PVC Single wire, color: white, brown, green, yellow, gray, pink, blue, red, black, violet, gray-pink, red-blue, white-green, brown-green, white-yellow, yellow-brown, white-gray Overall twist: 17 wires twisted in layers Max. conductor resistance: Ã¢Ã¢°¤ 142 Ã©/km (at 20Ã°C) Insulation resistance: > 10 MÃ©*km Nominal voltage, cable: 250 V Test voltage Core/Core: 1500 VÃAC Smallest bending radius, fixed installation: 34 mm Smallest bending radius, movable installation: 102 mm Flame resistance: DINÃENÃ50265-2-1 Ambient temperature (operation): -25°C ... 80°C (cable, fixed installation) -5°C ... 80°C (Cable, flexible installation)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65 IP67 IP68 Ambient temperature (operation): -25°C ... 85°C (Plug) -5°C ... 80°C (Cable, flexible installation) -25°C ... 80°C (cable, fixed installation)
Standards and regulations	Standard designation: M12 connector Standards/specifications: IEC 61076-2-101
