Non disponibile
| Product properties | Product type: Sensor/actuator cable Number of positions: 17 Application: Standard No. of cable outlets: 1 Shielded: no Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: HB Seal material: NBR Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuZn Contact surface material: Ni/Au Contact carrier material: TPU GF Material for screw connection: Zinc die-cast, nickel-plated |
| Electrical properties | Contact resistance: ââ°¤ 5 mé Insulation resistance: ââ°¥ 10 Mé Nominal voltage UN: 30 VÃAC 30 VÃDC Nominal current IN: 1.5 A Protective circuit: unwired |
| Signaling | Status display: No Status display present: No |
| Connection data | Conductor connection Tightening torque: 0.4 Nm (M12 connector) |
| Connector | Connection 1 Type: free cable end Connection 2 Type: Socket straight M12 SPEEDCON Number of positions: 17 Coding type: A Locking type: SPEEDCON |

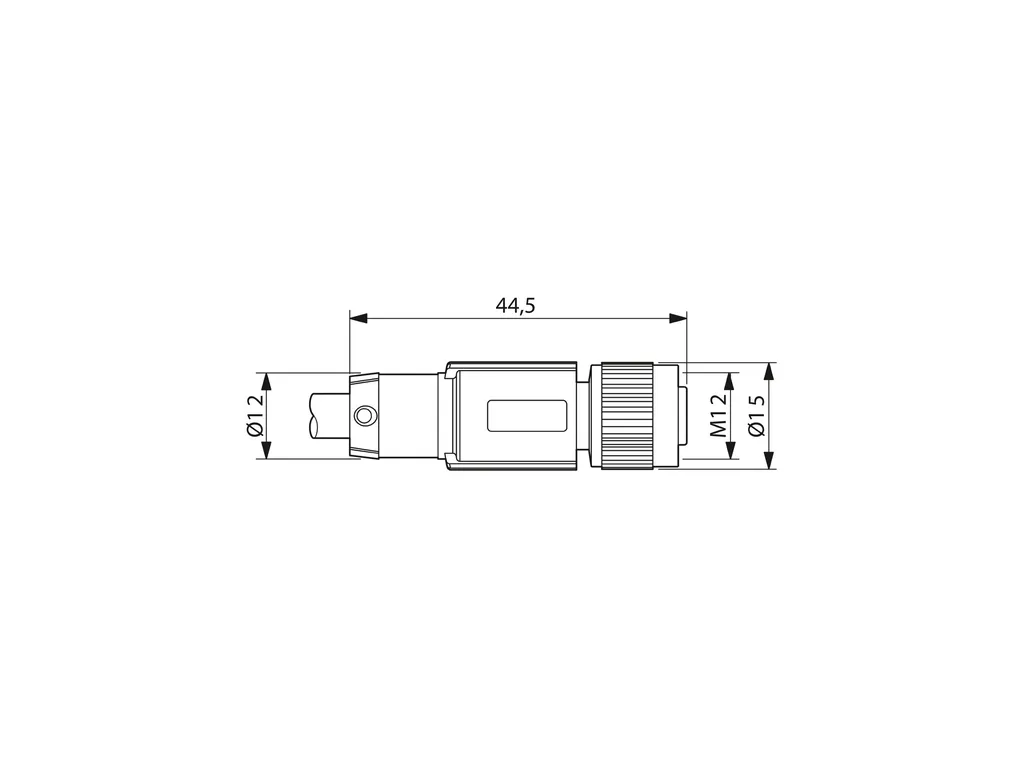

| Cable/line | Cable length: 5 m PVC blackÃ[PVC] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/55f1f802340ca44fb6a968e2c328046d/-S204x204-FJPG Number of positions: 17 Shielded: no Cable type: PVC blackÃ[PVC] Conductor structure signal line: 18x 0.10 mm AWG signal line: 26 Conductor cross section: 17x 0.14 mm² (Signal line) Wire diameter incl. insulation: 1 mm ñ0.05 mm (Signal line) External cable diameter: 6.8 mm Outer sheath, material: PVC External sheath, color: black RALÃ9005 Conductor material: Bare Cu litz wires Material wire insulation: PVC Single wire, color: white, brown, green, yellow, gray, pink, blue, red, black, violet, gray-pink, red-blue, white-green, brown-green, white-yellow, yellow-brown, white-gray Overall twist: 17 wires twisted in layers Max. conductor resistance: ââ°¤ 142 é/km (at 20ðC) Insulation resistance: > 10 Mé*km Nominal voltage, cable: 250 V Test voltage Core/Core: 1500 VÃAC Smallest bending radius, fixed installation: 34 mm Smallest bending radius, movable installation: 102 mm Flame resistance: DINÃENÃ50265-2-1 Ambient temperature (operation): -25°C ... 80°C (cable, fixed installation) -5°C ... 80°C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 IP68 Ambient temperature (operation): -25°C ... 85°C (Socket) -5°C ... 80°C (Cable, flexible installation) -25°C ... 80°C (cable, fixed installation) |
| Standards and regulations | Standard designation: M12 connector Standards/specifications: IEC 61076-2-101 |
