| Product properties | Product type: Data cable preassembled Sensor type: AS-Interface Number of positions: 2 No. of cable outlets: 1 Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Interfaces | Bus system: AS-Interface Signal type/category: AS-Interface |
| Signaling | Status display: No Status display present: No |
| Electrical properties | Contact resistance: ââ°¤ 5 mé Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 30 VÃAC 30 VÃDC Nominal current IN: 2 A |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 100 |
| Material specifications | Flammability rating according to UL 94: HB Seal material: NBR Outer sheath, material: PUR Conductor material: Bare Cu litz wires |

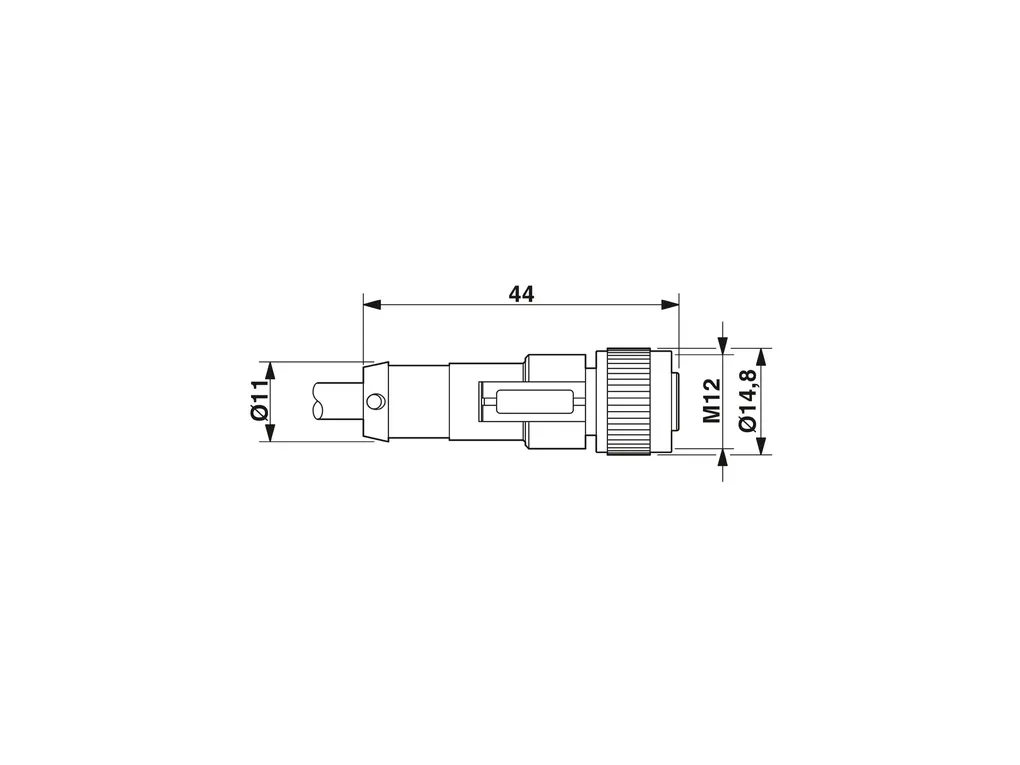

| Connector | Connection 1 Type: Plug straight AS-i Connection 2 Type: Socket straight M12 Coding type: A (Standard) Material: CuSn (Contact) Ni/Au (Contact surface) TPU GF (Contact carriers) TPU, hardly inflammable, self-extinguishing (Grip) Plastic (Screw connection) |
| Cable/line | Cable length: 5 m Cable type: PUR/PVC black Signal type/category: AS-Interface External cable diameter: 5.80 mm Outer sheath, material: PUR External sheath, color: black RALÃ9005 Single wire, color: brown, blue Cable cross section: 0.75 mm² Material, inner sheath: PVC Conductor material: Bare Cu litz wires AWG signal line: 18 Material wire insulation: PVC |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -25°C ... 90°C (Plug / socket) -25°C ... 70°C (Flat-ribbon cable terminal block) -25°C ... 80°C (cable, fixed installation) -25°C ... 80°C (Cable, flexible installation) |
