1574200 PHOENIX CONTACT -

PST 1,0/ 2-5,75 R32 - Pin strip

Pin strip, nominal cross section: 0.5 mm², color: black, nominal current: 6 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 2, number of rows: 1, number of positions: 2, product range: PST 1,0/..-V, pitch: 5.75 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 2.1 mm, plug-in system: COMBICON PST 1,0, locking: without, type of packaging: 32 mm wide tape

Cod. Articolo: 1574200 copia - copy

Cod. Fornitore: 1574200 copia - copy

PHOENIX CONTACT

Product properties	Product type: Pin strip Product family: PST 1,0/..-V Product line: COMBICON Connectors S Number of positions: 2 Pitch: 5.75 mm Number of rows: 1 Number of potentials: 2 Pin layout: Linear pinning Data management status Article revision: 00
Electrical properties	Nominal current I_N: 6 A Nominal voltage U_N: 320 V Contact resistance: 1.4 mÃ© Rated voltage (III/3): 250 V Rated surge voltage (III/3): 4 kV Rated voltage (III/2): 320 V Rated surge voltage (III/2): 4 kV Rated voltage (II/2): 400 V Rated surge voltage (II/2): 4 kV
Mounting	Mounting type: THR soldering / wave soldering Pin layout: Linear pinning
Material specifications	Material data - contact Note: WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 Contact material: Cu alloy Surface characteristics: tin-plated Metal surface contact area (top layer): Tin (2 - 5 Ãµm Sn) Metal surface contact area (middle layer): Nickel (1 - 3 Ãµm Ni) Metal surface soldering area (top layer): Tin (2 - 5 Ãµm Sn) Metal surface soldering area (middle layer): Nickel (1 - 3 Ãµm Ni) Material data - housing Color (Housing): black (9005) Insulating material: LCP Insulating material group: IIIa CTI according to IEC 60112: Ã¢Ã¢°¥175 < 400 Flammability rating according to UL 94: V0

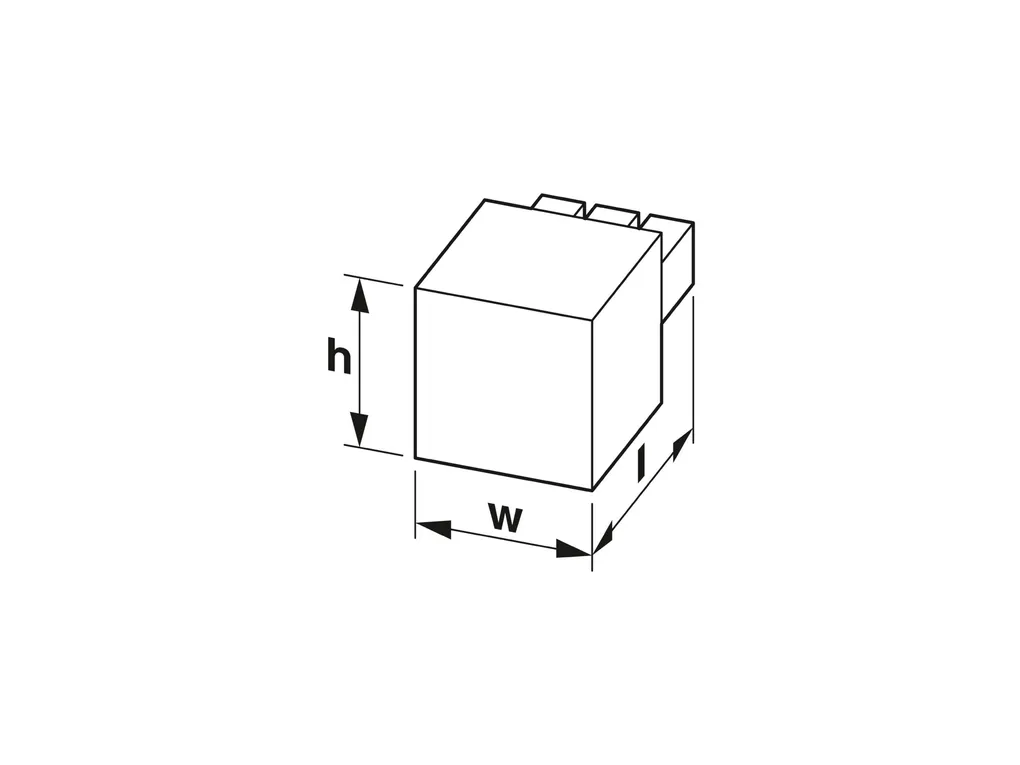

Dimensions	Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/49306/full/b1500?format=jpg Pitch: 5.75 mm Width [w]: 8.55 mm Height [h]: 12 mm Length [l]: 2.8 mm Installed height: 9.9 mm Solder pin length [P]: 2.1 mm PCB design Hole diameter: 1.2 mm
Mechanical tests	Visual inspection Specification: IEC 60512-1-1:2002-02 Result: Test passed Dimension check Specification: IEC 60512-1-2:2002-02 Result: Test passed Contact holder in insert Specification: IEC 60512-15-1:2008-05 Contact holder in insert Requirements >20 N: Test passed Resistance of inscriptions Specification: IEC 60068-2-70:1995-12 Result: Test passed
Electrical tests	Thermal test \| Test group C Specification: IEC 60512-5-1:2002-02 Tested number of positions: 2 Insulation resistance Specification: IEC 60512-3-1:2002-02 Insulation resistance, neighboring positions: > 5 MÃ© Air clearances and creepage distances \| Specification: IEC 60664-1:2020-05 Insulating material group: IIIa Comparative tracking index (IEC 60112): CTI Ã¢Ã¢°¥175 to <400 Rated insulation voltage (III/3): 250 V Rated surge voltage (III/3): 4 kV minimum clearance value - non-homogenous field (III/3): 3 mm minimum creepage distance (III/3): 4 mm Rated insulation voltage (III/2): 320 V Rated surge voltage (III/2): 4 kV minimum clearance value - non-homogenous field (III/2): 3 mm minimum creepage distance (III/2): 3.2 mm Rated insulation voltage (II/2): 400 V Rated surge voltage (II/2): 4 kV minimum clearance value - non-homogenous field (II/2): 3 mm minimum creepage distance (II/2): 4 mm
Environmental and real-life conditions	Durability test Specification: IEC 60512-9-1:2010-03 Impulse withstand voltage at sea level: 4.8 kV Contact resistance R₁: 1.4 mÃ© Contact resistance R₂: 1.6 mÃ© Insertion/withdrawal cycles: 25 Insulation resistance, neighboring positions: > 5 MÃ© Climatic test Specification: ISO 22479:2019-05 Corrosive stress: 0.2 dm³SO₂on 300 dm³/40 °C/1 cycle Thermal stress: 100 °C/168 h Power-frequency withstand voltage: 2.21 kV Ambient conditions Ambient temperature (operation): -60 °C ... 100 °C (dependent on the derating curve) Ambient temperature (storage/transport): -40 °C ... 70 °C Relative humidity (storage/transport): 30 % ... 70 % Ambient temperature (assembly): -5 °C ... 100 °C
Packaging specifications	Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/95342/full/b1500?format=jpg Type of packaging: 32 mm wide tape [W] tape width: 32 mm [W2] coil overall dimension: 38.4 mm [A] coil diameter: 330 mm Outer packaging type: Transparent-Bag ESD level: (D) electrostatically conductive Specification: DIN EN 61340-5-1 (VDE 0300-5-1): 2008-07
