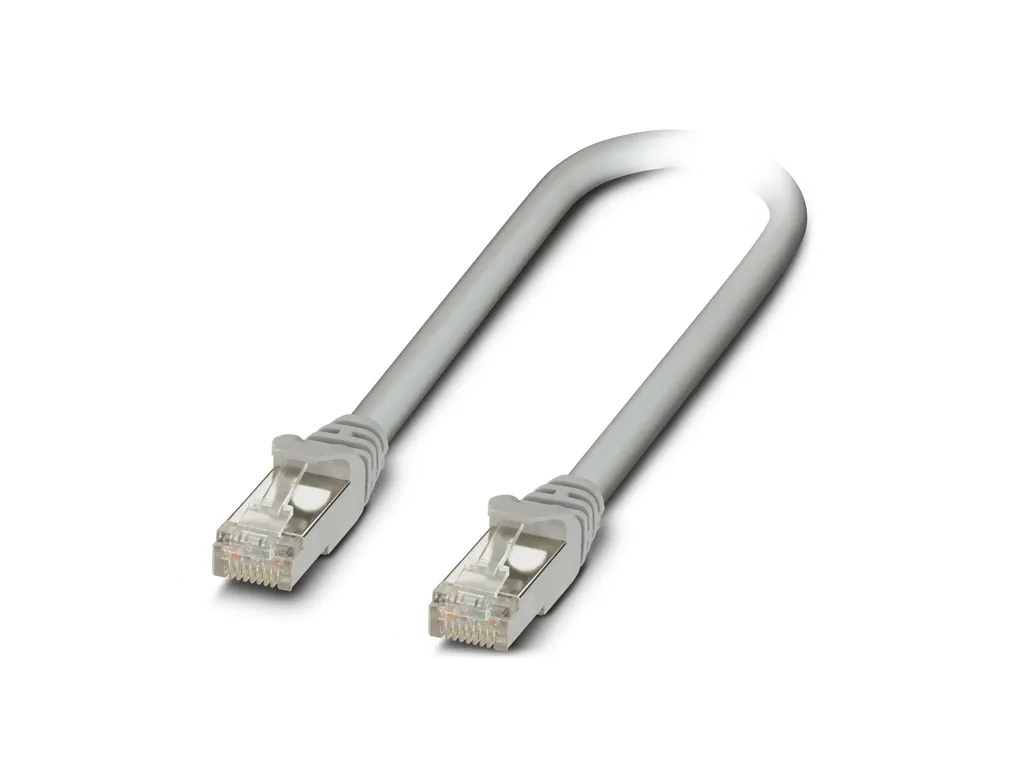

| Product properties | Product type: Data cable preassembled Sensor type: PROFINET Number of positions: 4 Shielded: yes Cable outlet: straight Data management status Article revision: 01 Insulation characteristics Overvoltage category: I Degree of pollution: 2 |
| Electrical properties | Rated voltage (III/2): 72 V Rated current: 1.75 A Insulation resistance: > 1 Té Contact resistance: < 20 mé Transmission characteristics (category): CAT5 Transmission speed: 100 Mbps |
| Mechanical properties | Mechanical data Insertion force per signal contact: 50.00 N Extraction force per signal contact: 30 N |
| Material specifications | Flammability rating according to UL 94: V2 Housing material: PP Contact material: CuSn6 Contact surface material: Ni/Au Contact carrier material: PC |
| Dimensions | Width: 13.8 mm Height: 14.8 mm Length: 44.2 mm |
| Connection data | Connection technology Connection method: Pierce connection Conductor connection Connection method: Pierce connection |
| Connector | Connection 1 Type: Plug straight RJ45 Shielded: yes Handle color: black Insertion/withdrawal cycles: ââ°¥ 750 Degree of protection: IP20 Connection 2 Type: Plug straight RJ45 Shielded: yes Insertion/withdrawal cycles: ââ°¥ 750 Degree of protection: IP20 |
| Cable/line | Cable length: 30.00 m PROFINET stranded CAT5 [93M] Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/9062/full/b1500?format=jpg Cable weight: 65 kg/km UL AWM Style: 20236 (80 °C/30 V) Number of positions: 4 Shielded: yes Cable type: PROFINET stranded CAT5 [93M] Conductor structure: 1x4xAWG22/7, SF/TQ Signal runtime: 5.3 ns/m Conductor structure signal line: 7x 0.25 mm AWG signal line: 22 Conductor cross section: 4x 0.34 mm² Wire diameter incl. insulation: approx. 1.5 mm External cable diameter: 6.50 mm ñ0.2 mm Outer sheath, material: PUR External sheath, color: green RAL 6018 Conductor material: Tin-plated Cu litz wires Material wire insulation: PE Single wire, color: white, yellow, blue, orange Thickness, outer sheath: approx. 0.90 mm Overall twist: Star quad Insulation resistance: ââ°¥ 500 Mé*km Coupling resistance: ââ°¤ 20.00 mé/m (at 10 MHz) Loop resistance: ââ°¤ 120.00 é/km Wave impedance: 100 é ñ15 é (at 100 MHz) Working capacitance: 52 pF Nominal voltage, cable: 600 V Test voltage Core/Core: 2000 V (50 Hz, 1 min.) Test voltage Core/Shield: 2000.00 V (50 Hz, 1 min.) Minimum bending radius, fixed installation: 4 x D Minimum bending radius, flexible installation: 8 x D Smallest bending radius, fixed installation: 26 mm Smallest bending radius, movable installation: 52 mm Near end crosstalk attenuation (NEXT): 80 dB (with 1 MHz) 76 dB (at 4 Ãà Hz) 70 dB (at 10 MHz) 65 dB (at 16 MHz) 63 dB (at 20 Ãà Hz) 60 dB (at 31.25 Ãà Hz) 55 dB (at 62.5 Ãà Hz) 50 dB (at 100 MHz) Shield attenuation: 2.1 dB (with 1 MHz) 4 dB (at 4 Ãà Hz) 6.3 dB (at 10 MHz) 8 dB (at 16 MHz) 9 dB (at 20 Ãà Hz) 11.4 dB (at 31.25 Ãà Hz) 16.5 dB (at 62.5 Ãà Hz) 21.3 dB (at 100 MHz) Ambient temperature (operation): -40 °C ... 80 °C -40 °C ... 80 °C (Cable, flexible installation) Ambient temperature (installation): -40 °C ... 80 °C |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40 °C ... 85 °C (RJ45 connector) Ambient temperature (storage/transport): -40 °C ... 85 °C (RJ45 connector) |
| Standards and regulations | Standards/specifications: IEC 60603-7 |
