| Notes | General: Connectors may be operated only when there is no load/voltage. |
| Mounting | Assembly instructions: To ensure correct use, installation in housing with IP54 protection or better is required |
| Product properties | Type: B16 B32 Product type: Contact insert with a fixed no. of positions Number of positions: 16 Insulation characteristics Overvoltage category: III Degree of pollution: 3 |

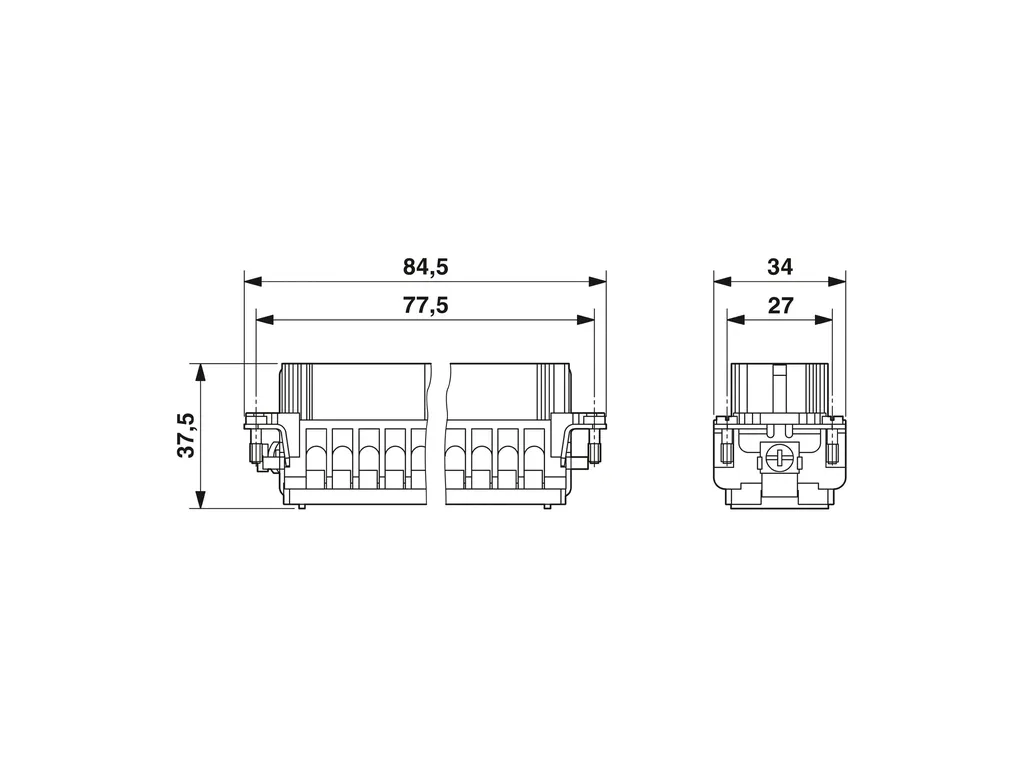

| Dimensions | Mechanical characteristics Contact diameter: 2.5 mm |
| Connection data | Connection technology Connection technology: QUICKON connection Conductor connection Conductor cross section: 0.34 mm² ... 2.5 mm² (Litz wire structure VDE 0295, Class 1 - 5/litz wire diameter >= 0.2 mm) Connection cross section AWG: 22 ... 14 Tightening torque: 0.8 Nm ... 1.2 Nm (PE connection) 0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing) |
| Electrical properties | Rated voltage (III/3): 500 V Rated surge voltage: 6 kV Rated current: 16 A |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 500 |
| Material specifications | Flammability rating according to UL 94: V0 |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 125°C |
