| Notes | General: This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 8.4 Connectors for outside environment (optical fibre) and chapter 13 Application specific Cabling and Interconnection Technology (AIDA) |

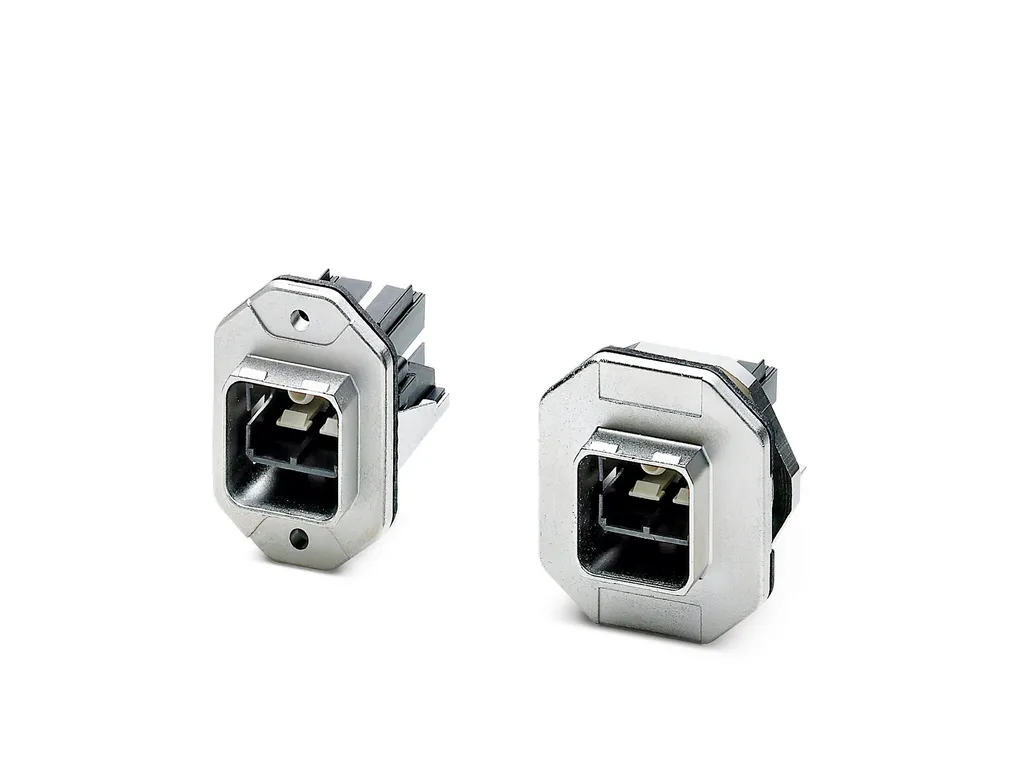

| Product properties | Type: SC-RJ Product type: Panel mounting frame Number of positions: 2 Connection profile: SC-RJ Application: SCRJ PCB connection Cable outlet: straight Insulation characteristics Degree of pollution: 2 |
| Electrical properties | Transmission medium: FO |
| Connection data | Connection technology Connection method: Push-Pull |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/1a6bf0c988f4d844924c7b1d0e773e63/-S204x204-FJPG Width: 22.2 mm Height: 42 mm Mechanical characteristics Ferrule diameter: 2.50 mm |
| Material specifications | Color: silver Material: Metal Flammability rating according to UL 94: V0 Seal material: NBR Housing surface material: nickel-plated Housing material: Metal |
| Cable/line | Resistance to oil: yes Flame resistance: yes FO cable Number of fibers: 2 Fiber: POF, PCF, GOF Fiber type: GOF, PCF, POF Transmission medium: FO |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 500 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65/IP67 Ambient temperature (operation): -40°C ... 80°C Ambient temperature (storage/transport): -40°C ... 70°C Ambient temperature (assembly): 0°C ... 50°C Resistance to oil: yes |
| Standards and regulations | Flame resistance: yes Resistance to oil: yes |
| Mounting | Mounting type: Wall mounting Connection method: Push-Pull |
