VS-08-ST-H21-RJ45 - RJ45 male insert

RJ45 male insert, CAT6, 8-pos., shielded, IDC displacement connection, for litz wire AWG 25 ... 24 and solid wires AWG 24, with strain relief

Cod. Articolo: 1652729 copia - copy

Cod. Fornitore: 1652729 copia - copy

PHOENIX CONTACT

Product properties	Type: RJ45 Product type: Male insert Sensor type: Ethernet Number of positions: 8 Connection profile: RJ45 No. of cable outlets: 1 Shielded: yes Cable outlet: straight Positions/contacts: 8P8C Insulation characteristics Overvoltage category: I Degree of pollution: 2
Electrical properties	Rated voltage (III/3): 72 V (DC) Rated surge voltage: 330 kV Rated current: 1 A Contact resistance: < 20 mÃ© (Contact) < 100 mÃ© (shield) > 10 mÃ© (Wire Ã¢Ã¢¬Ã¢ IDC) Frequency range: to 250 MHz Insulation resistance: > 500 MÃ© (100ÃVÃDC) Nominal voltage U_N: 48 V Nominal current I_N: 1.75 A Contact resistance per contact pair: < 20 Ã© Transmission medium: Copper Transmission characteristics (category): CAT6

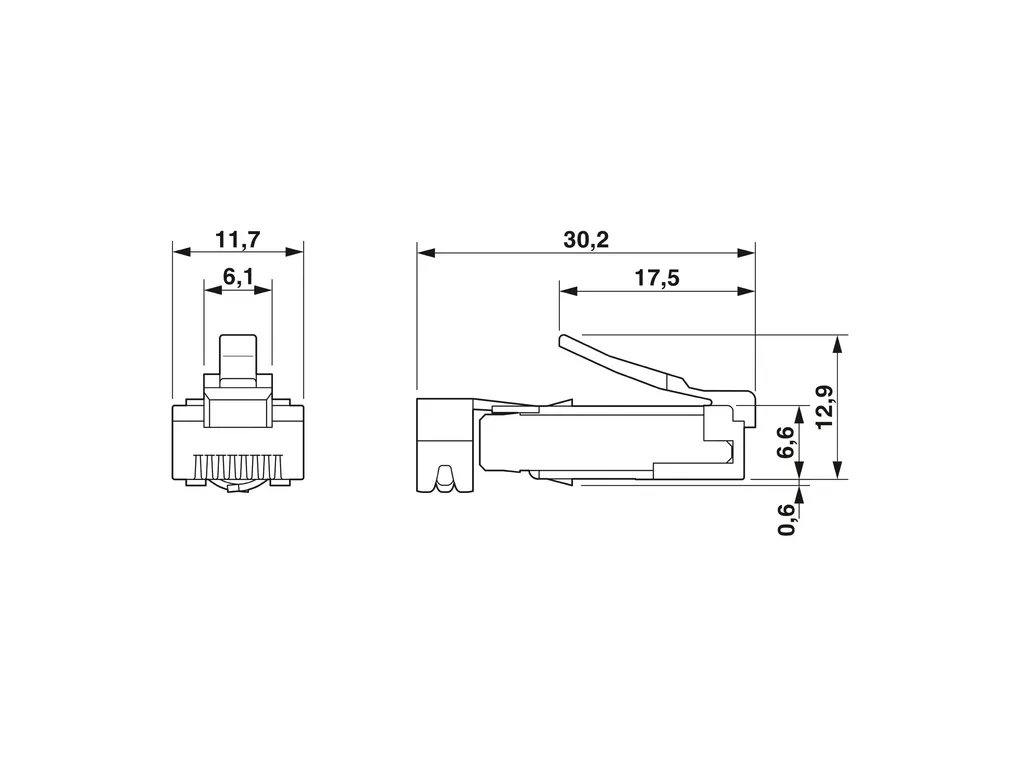

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/44f358a1f4bc9b459147def5ef971ec7/-S204x204-FJPG Width: 11.7 mm Height: 14 mm Length: 30.2 mm
Material specifications	Color: red Flammability rating according to UL 94: V2 Contact material: Phosphor bronze Contact surface material: Au/Ni Contact carrier material: PC Locking latch material: PC Housing material: Steel, tin-plated
Cable/line	External cable diameter (): 6.6 mm Wire diameter including insulation: 0.9 mm ... 1 mm Test voltage Core/Core: 1000 V Test voltage Core/Shield: 1500 V
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢Ã¢°¥ 750 Insertion force per signal contact: < 20.00 N Extraction force per signal contact: < 20 N
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -25°C ... 60°C
Mounting	Mounting type: Crimp connection Connection method: Crimp connection
