| Product properties | Product type: Data cable preassembled Sensor type: USB 2.0 Number of positions: 4 Shielded: yes Insulation characteristics Degree of pollution: 2 |
| Electrical properties | Rated voltage (III/3): 125 V Rated current: 1 A Transmission medium: Copper Transmission characteristics (category): USB 2.0 Transmission speed: 480 Mbps Wave impedance: 100 é |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 500 |
| Material specifications | Seal material: NBR O-ring material: FPM Housing material: PA Outer sheath, material: PUR Conductor material: Bare Cu litz wires |

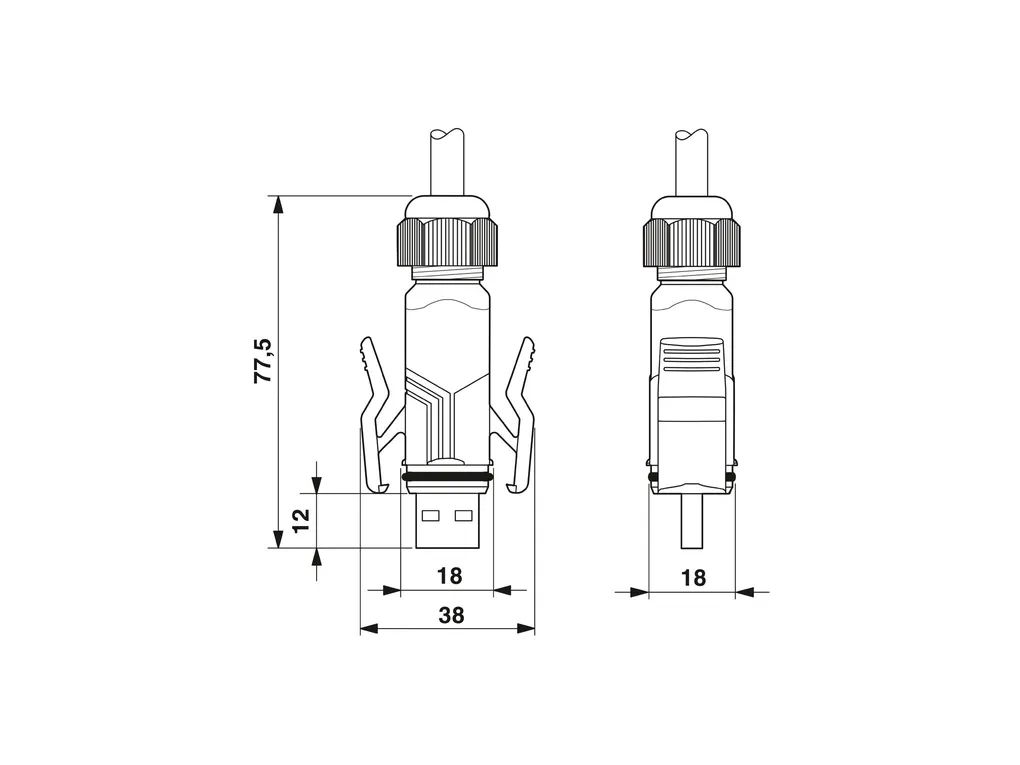

| Connector | Connection 1 Type: Plug straight USB type A Number of positions: 4 Connection 2 Type: free cable end Number of positions: 4 |
| Cable/line | Cable length: 5.00 m FireWireÃ[980] Shielded: yes Cable weight: 59 kg/km Cable type: FireWire Cable type (abbreviation): 980 Signal type/category: USB CAT7, 480 Mbps FireWire CAT7, 400 Mbps Cable structure: 2x2xAWG26/7 + 2xAWG20/19, S/FTP External cable diameter: 6.7 mm Outer sheath, material: PUR External sheath, color: water blue RALÃ5021 Conductor material: Bare Cu litz wires Conductor structure signal line: 7x 0.15 mm AWG signal line: 26 Conductor structure, voltage supply: 19x 0.20 mm Conductor cross section: 2x 2x 0.14 mm² (Signal line) AWG power supply: 20 Material wire insulation: Cell PE (Signal line) PVC (Power supply) Wire diameter incl. insulation: ââ°¤ 1.05 mm (Signal line) nom. 1.4 mm (Power supply) Single wire, color: white-blue, white-orange, white, black Twisted pairs: 2 cores to the pair Type of pair shielding: Aluminum-lined polyester foil Overall twist: Two pairs and two power supply wires to the core Shielding: Tinned copper braided shield Nominal voltage, cable: ââ°¤ 125 V Test voltage, cable: 1000 V Cable resistance: 150 é/km Cable insulation resistance: 5 Gé*km Coupling resistance: 5.00 mé/m (at 10 MHz) Wave impedance: 100 é ñ5Ã% (at 100 MHz) Working capacitance: 42 pF (per meter) Signal runtime: 4.6 ns/m Signal speed: 0.72 c Interference suppression: 90 dB (up to 1000 MHz) Tensile strength: ââ°¤ 30 N Minimum bending radius, fixed installation: 5 x D Minimum bending radius, flexible installation: 5 x D Shield attenuation: 60 dB (up to 1000 MHz) Resistance to oil: in accordance with EN 60811-2-1 Flame resistance: complying with IEC 60332-2-2 Other resistance: Microbe resistance as per DIN VDE 0282 Hydrolysis resistance as per DIN 53504 Special properties: Free of substances which would hinder coating with paint or varnish Ambient temperature (operation): -10°C ... 50°C (Cable, flexible installation) -40°C ... 70°C (cable, fixed installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -20°C ... 60°C (cable, fixed installation) 0°C ... 50°C (Cable, flexible installation) Plug / socket |
