PHOENIX CONTACT 1656246
PHOENIX CONTACT 1656246
PHOENIX CONTACTNon disponibile

VS-09-DSUB-20-LI-2,0 - D-SUB cable

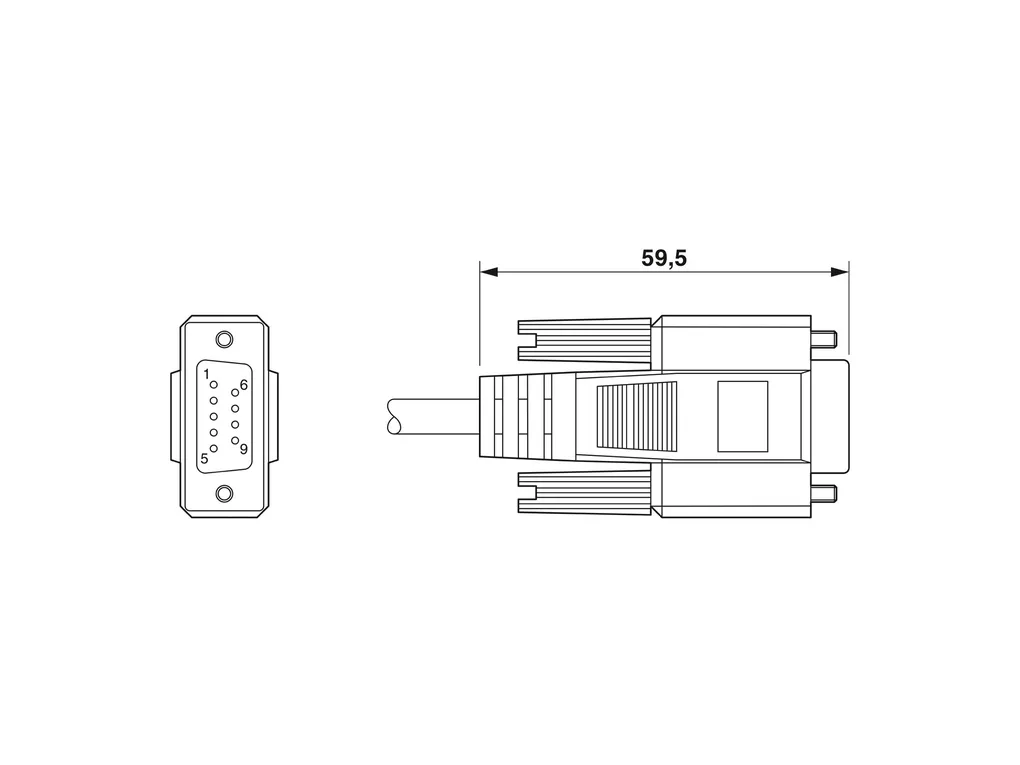

Assembled D-SUB cable, shielded, 9-pos., stranded (7-wire), cable color: RAL 7000 (gray), secured using 4-40 UNC thread, IP20 protection, head 1 with socket shell 1 and straight cable outlet, head 2 with pin shell 1 and straight cable outlet, length: 2 m
Cod. Articolo: 1656246 copia - copy
Cod. Fornitore: 1656246 copia - copy
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
Product propertiesType: D-SUB
Product type: Data cable preassembled
Sensor type: Universal
Number of positions: 9
Cable outlet: straight
Insulation characteristics
Overvoltage category: III
Degree of pollution: 2
Electrical propertiesRated current: 1 A
Operating voltage: 30 V
Transmission medium: Copper
Mechanical propertiesMechanical data
Insertion/withdrawal cycles: ≥ 50
Material specificationsContact material: Copper alloy
Contact surface material: gold-plated
Housing material: PVC
Outer sheath, material: PVC
Connection dataConnection technology
Connection method: D-SUB
Conductor connection
Connection method: D-SUB
ConnectorConnection 1
Type: Socket straight D-SUB 9
Number of positions: 9
Connection 2
Type: Plug straight D-SUB 9
Number of positions: 9
Cable/lineOuter sheath, material: PVC
Cable cross section: 0.08 mm²
AWG signal line: 28
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP20
Ambient temperature (operation): 0°C ... 70°C
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_00175.pdf

Manufacturer_declaration_03984.pdf

Manufacturer_declaration_05459.pdf

Technical_drawing_18167.pdf
