| Product properties | Product type: Data cable preassembled Sensor type: Ethernet Number of positions: 2 Connection profile: SCRJ in accordance with DIN EN 50377-6-1 Number of slots: 2 |
| Electrical properties | Attenuation: < 2.5 dB (with 660 nm) Transmission medium: FO |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 1000 |
| Material specifications | Contact material: Phosphor bronze Housing material: PBT Outer sheath, material: PE |
| Connection data | Connection technology Connection method: POF SC-RJ Conductor connection Connection method: POF SC-RJ |

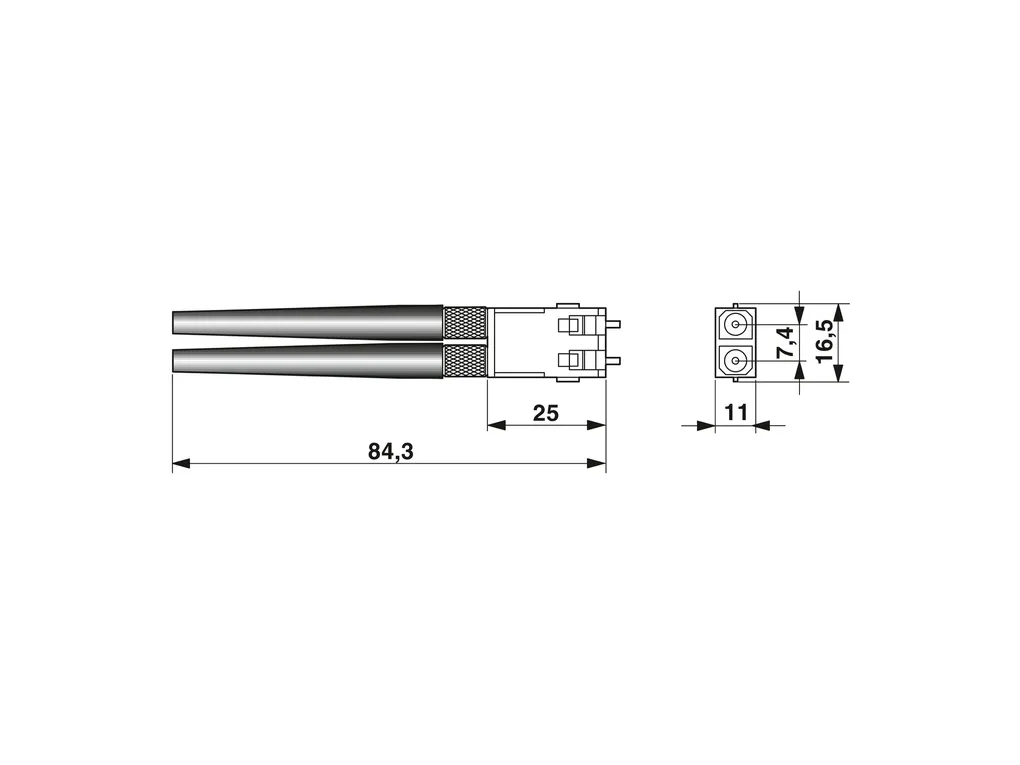

| Connector | Connection 1 Type: Plug straight SC-RJ Handle color: black Insertion/withdrawal cycles: ââ°¥ 1000 1000 Degree of protection: IP20 Number of positions: 2 Connection 2 Type: Plug straight SC-RJ Number of positions: 2 Degree of protection: IP20 |
| Cable/line | Cable length: 5.00 m Cable type: Polymer fiber (980 / 1000 õm) Break-out cable Outer sheath, material: PE External sheath, color: black Smallest bending radius, fixed installation: 30 mm Smallest bending radius, movable installation: 30 mm Ambient temperature (operation): -20°C ... 70°C -20°C ... 60°C FO cable Number of fibers: 2 Fiber: Polymer fiber, 980/1000Ãõm Fiber type: POF fiber A4A Transmission medium: Multi-mode fiberglass |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -20°C ... 70°C -20°C ... 60°C -20°C ... 70°C Ambient temperature (storage/transport): -40°C ... 85°C Ambient temperature (assembly): -5°C ... 50°C |
