| Notes | General: This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 8.1 Connectors for Outside Environment (Balanced cabling) |
| Product properties | Type: RJ45 Product type: Data connector (cable side) Sensor type: PROFINET Number of positions: 4 Connection profile: RJ45 No. of cable outlets: 1 Shielded: yes Cable outlet: straight Positions/contacts: 8P4C Insulation characteristics Overvoltage category: I Degree of pollution: 2 |
| Electrical properties | Rated voltage (III/3): 72 V (DC) Rated surge voltage: 330 kV Rated current: 1.75 A Contact resistance: < 20 mé (Contact) < 100 mé (shield) > 10 mé (Wire ââ¬Ã¢ IDC) < 0.005 é (Litz wires ââ¬Ã¢ IDC) Frequency range: 100 MHz Insulation resistance: > 500 Mé (100 V) Nominal voltage UN: 48 V Nominal current IN: 1.75 A Dielectric strength: 1000 VÃDC (Conductor-Conductor) 1500 VÃDC (Wire/shield) Contact resistance per contact pair: < 20 é Transmission medium: Copper Transmission characteristics (category): CAT5 Transmission speed: 100 Mbps Power transmission: PoE+ |
| Connection data | Connection technology Connection method: Insulation displacement connection Connection cross section AWG: 22 (solid) 22 (flexible) Conductor cross section: 0.34 mm² ... 0.36 mm² (solid) 0.34 mm² ... 0.36 mm² (flexible) Cable outlet, angle: 180 |

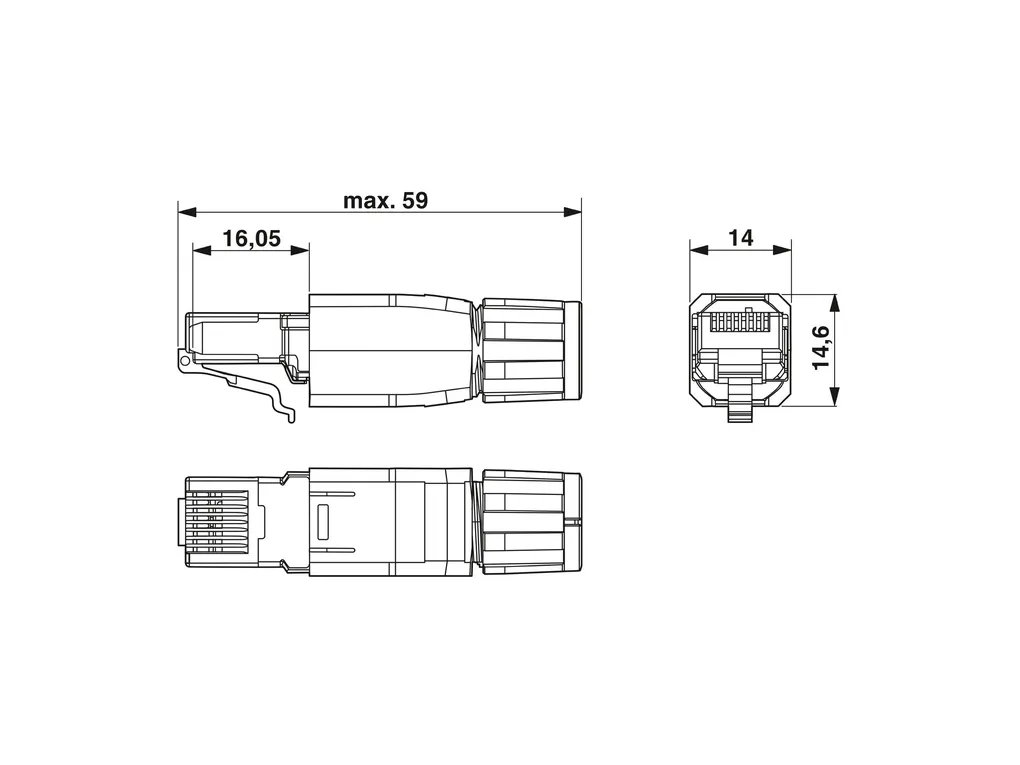

| Dimensions | Width: 14 mm Height: 14.6 mm Length: 56 mm |
| Material specifications | Color: traffic grey A RAL 7042 Material: Plastic Flammability rating according to UL 94: V0 Cable seal material: NBR Contact material: CuSn Contact surface material: Au/Ni Contact carrier material: PC O-ring material: FPM Locking latch material: PC Material for screw connection: PA Housing material: Plastic |
| Cable/line | External cable diameter (): 4.5 mm ... 8 mm External cable diameter: 4.5 mm ... 8 mm Wire diameter: 1.6 mm Test voltage Core/Core: 1000 V Test voltage Core/Shield: 1500 V Halogen-free: no |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 750 Insertion force per signal contact: < 20.00 N Extraction force per signal contact: < 20 N |
| Environmental and real-life conditions | Test specification Type of test: Vibration test Specification: IEC 60068-2-6 Frequency: 10-500 Hz Sweep speed: 1Ãoctave/min Amplitude: 0.35 mm Acceleration: 50 m/s² Test duration: 20 s Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -20°C ... 70°C Ambient temperature (storage/transport): -40°C ... 70°C |
| Mounting | Mounting type: For field assembly Connection method: Insulation displacement connection |
