| Product properties | Type: Version 6 RJ45 Product type: Panel mounting frame Number of positions: 8 Connection profile: RJ45 Application: Freenet Number of slots: 1 Insulation characteristics Degree of pollution: 2 |
| Electrical properties | Transmission medium: Copper |

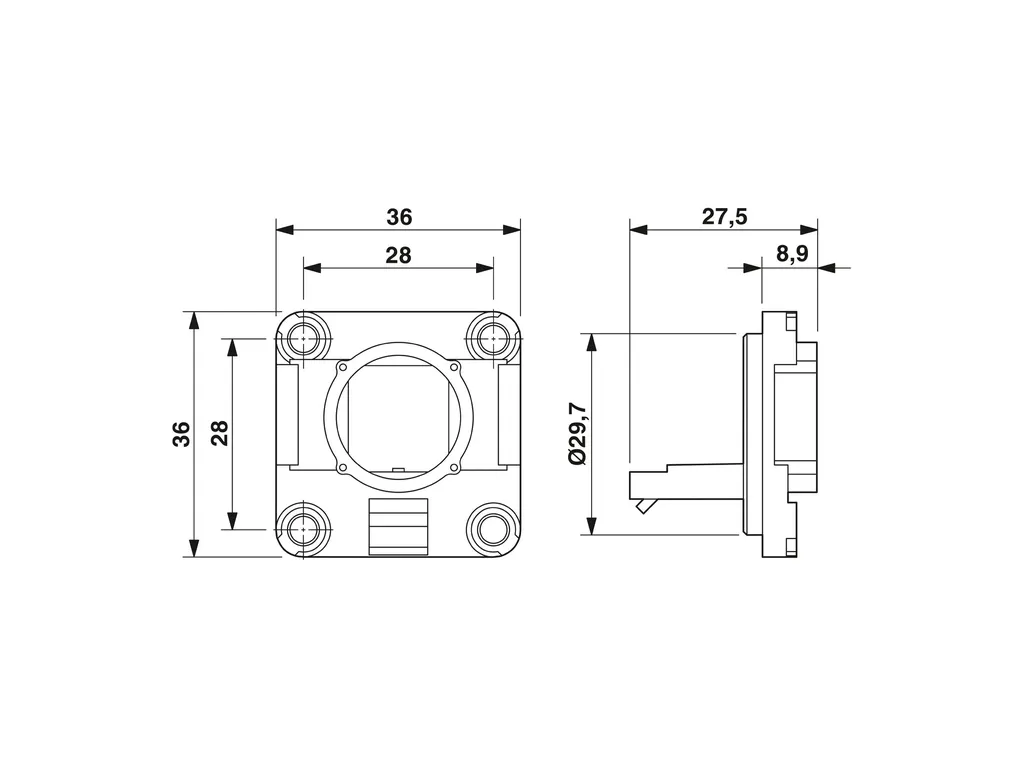

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/31029fcfefa5f84cb2f325cf4ce28faf/-S204x204-FJPG Width: 36 mm Height: 36 mm Depth: 27.5 mm Length: 27.6 mm |
| Material specifications | Color: black Material: Plastic Flammability rating according to UL 94: V0 Seal material: NBR Seal material, flat gasket: NBR Housing surface material: PA, light gray Contact surface material: Au/Ni Contact carrier material: Polyester GF Housing material: Plastic |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 1000 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65/IP67 Ambient temperature (operation): -40°C ... 80°C |
| Mounting | Mounting type: Front mounting |
