1668182 PHOENIX CONTACT -

Product properties	Product type: Sensor/actuator cable Number of positions: 4 Application: Standard No. of cable outlets: 1 Shielded: no Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3
Material specifications	Flammability rating according to UL 94: HB Seal material: NBR Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: TPU GF Material for screw connection: Zinc die-cast, nickel-plated
Electrical properties	Contact resistance: Ã¢Ã¢°¤ 5 mÃ© Insulation resistance: Ã¢Ã¢°¥ 10 MÃ© Nominal voltage U_N: 250 VÃAC 250 VÃDC Nominal current I_N: 4 A Protective circuit: unwired
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢Ã¢°¥ 100
Signaling	Status display: No Status display present: No
Connection data	Conductor connection Tightening torque: 0.4 Nm (M12 connector)

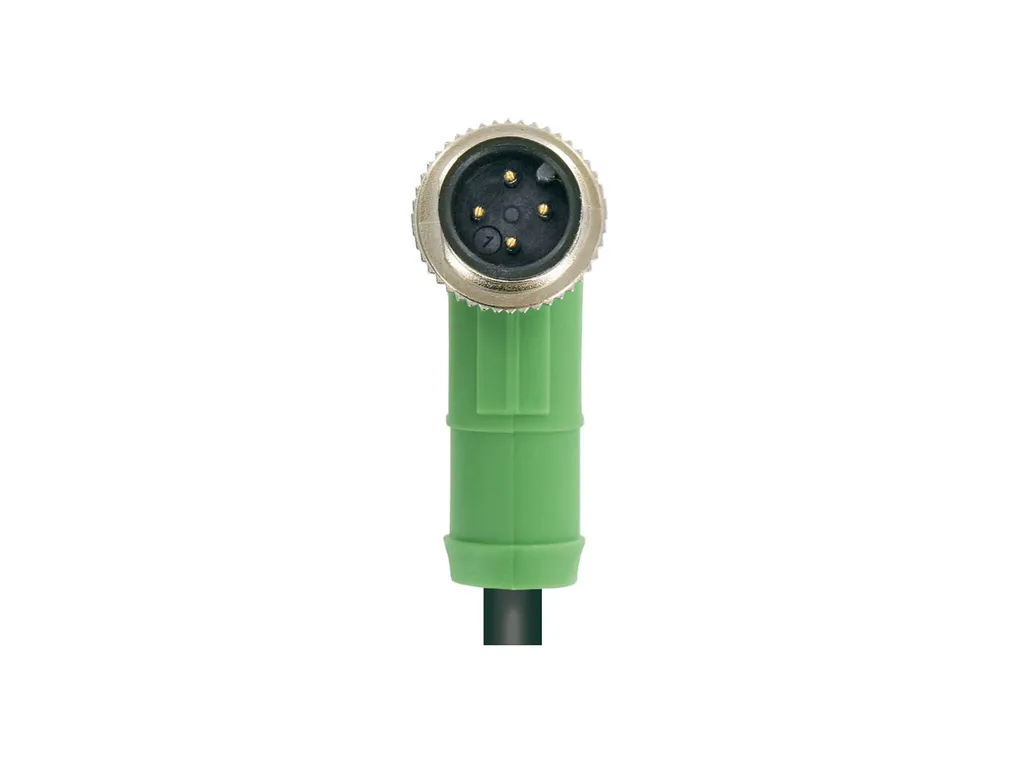

Connector	Connection 1 Type: Plug angled M12 Number of positions: 4 Coding type: A Connection 2 Type: free cable end
Cable/line	Cable length: 5 m PUR halogen-free blackÃ[PUR] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/8070176de8bb2a4ca10ddd549eb86f04/-S204x204-FJPG Cable weight: 30 kg/km UL AWM Style: 20549 / 10493 (80°C/300 V) Number of positions: 4 Shielded: no Cable type: PUR halogen-free blackÃ[PUR] Conductor structure signal line: 42x 0.10 mm AWG signal line: 22 Conductor cross section: 4x 0.34 mm² (Signal line) Wire diameter incl. insulation: 1.27 mm Ã±0.02Ãmm External cable diameter: 4.2 mm Ã±0.15Ãmm Outer sheath, material: PUR External sheath, color: black-gray RAL 7021 Conductor material: Bare Cu litz wires Material wire insulation: PP Single wire, color: brown, white, blue, black Thickness, insulation: Ã¢Ã¢°¥ 0.21 mm Thickness, outer sheath: approx. 0.5 mm Overall twist: 4 wires, twisted Max. conductor resistance: Ã¢Ã¢°¤ 58 Ã©/km Insulation resistance: Ã¢Ã¢°¥ 1 GÃ©*km Nominal voltage, cable: Ã¢Ã¢°¤ 300 V Test voltage: Ã¢Ã¢°¥ 3000 V Minimum bending radius, fixed installation: 5 x D Minimum bending radius, flexible installation: 10 x D Smallest bending radius, fixed installation: 21 mm Smallest bending radius, movable installation: 42 mm Max. bending cycles: 10000000 Halogen-free: in accordance with DINÃVDEÃ0472 partÃ815 in accordance with DINÃENÃ50267-2-1 Flame resistance: in accordance with ULÃ758/1581 FT2 DINÃENÃ60332-2-2 (20Ãs) Resistance to oil: in accordance with DINÃENÃ60811-2-1 Other resistance: Highly resistant to acids, alkaline solutions and solvents hydrolysis and microbe resistant partly UV-resistant in accordance with DINÃENÃISOÃ4892-2-A Low adhesion abrasion-resistant Special properties: Flexible cable conduit capable Silicone-free Free of substances which would hinder coating with paint or varnish flexible Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation) -25°C ... 80°C (Cable, flexible installation)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65 IP67 IP68 Ambient temperature (operation): -25°C ... 90°C (Plug / socket)
Standards and regulations	Standard designation: M12 connector Standards/specifications: IEC 61076-2-101
