1688395 PHOENIX CONTACT -

VS-09-BU-DSUB/9-MPT-0,5 - D-SUB contact insert

D-SUB contact insert, shell size 1, with 9 signal contacts, female type of contact, screw connection, straight, for panel mounting frame and sleeve housing with IP67 protection

Cod. Articolo: 1688395 copia - copy

Cod. Fornitore: 1688395 copia - copy

PHOENIX CONTACT

Product properties	Type: D-SUB Socket Product type: Female insert Number of positions: 9 Connection profile: D-SUB Number of slots: 1 Shielded: yes Insulation characteristics Overvoltage category: II Degree of pollution: 2
Electrical properties	Rated voltage (III/3): 60 V Rated current: 5 A Insulation resistance: Ã¢Ã¢°¥ 5000 MÃ© Contact resistance per contact pair: Ã¢Ã¢°¤ 2.5 mÃ© Transmission medium: Copper Power transmission: Power
Connection data	Connection technology Connection method: Screw connection

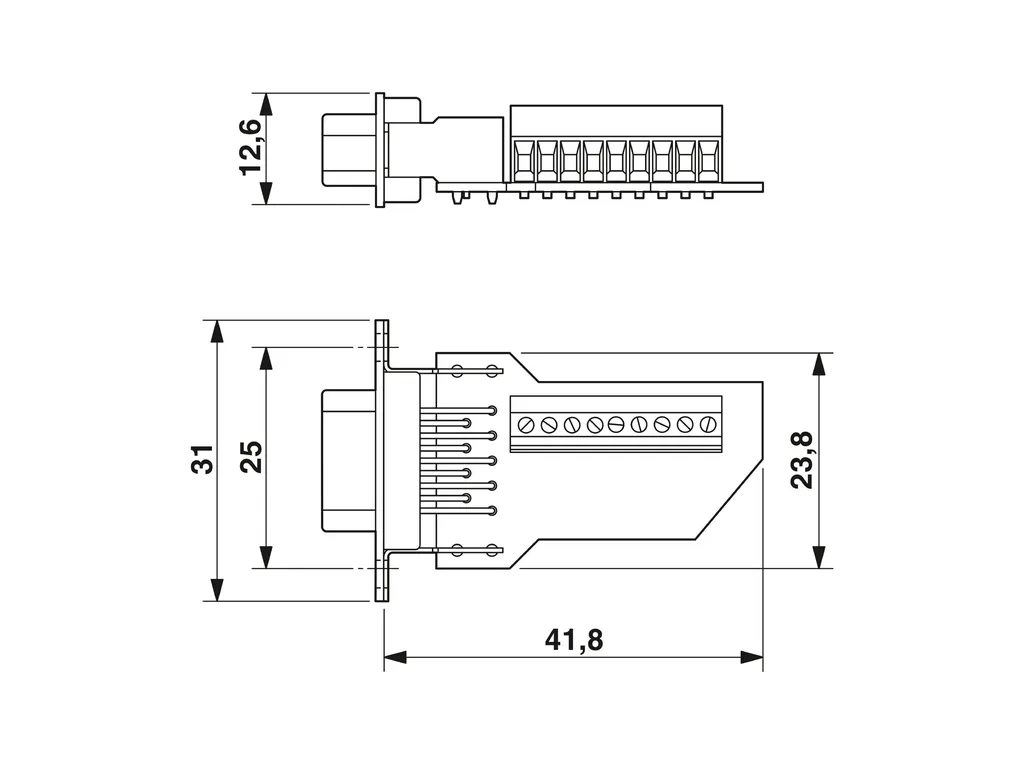

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/185689731c97154ab0b6409d72f73eb7/-S204x204-FJPG Width: 31 mm Height: 12.6 mm Length: 49 mm
Material specifications	Housing surface material: metal-plated Contact surface material: Gold Housing material: Metal
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢Ã¢°¥ 200 Insertion force per signal contact: Ã¢Ã¢°¤ 3.30 N Extraction force per signal contact: Ã¢Ã¢°¤ 2.2 N
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -20°C ... 80°C
Mounting	Mounting type: Screw mounting Connection method: Screw connection
